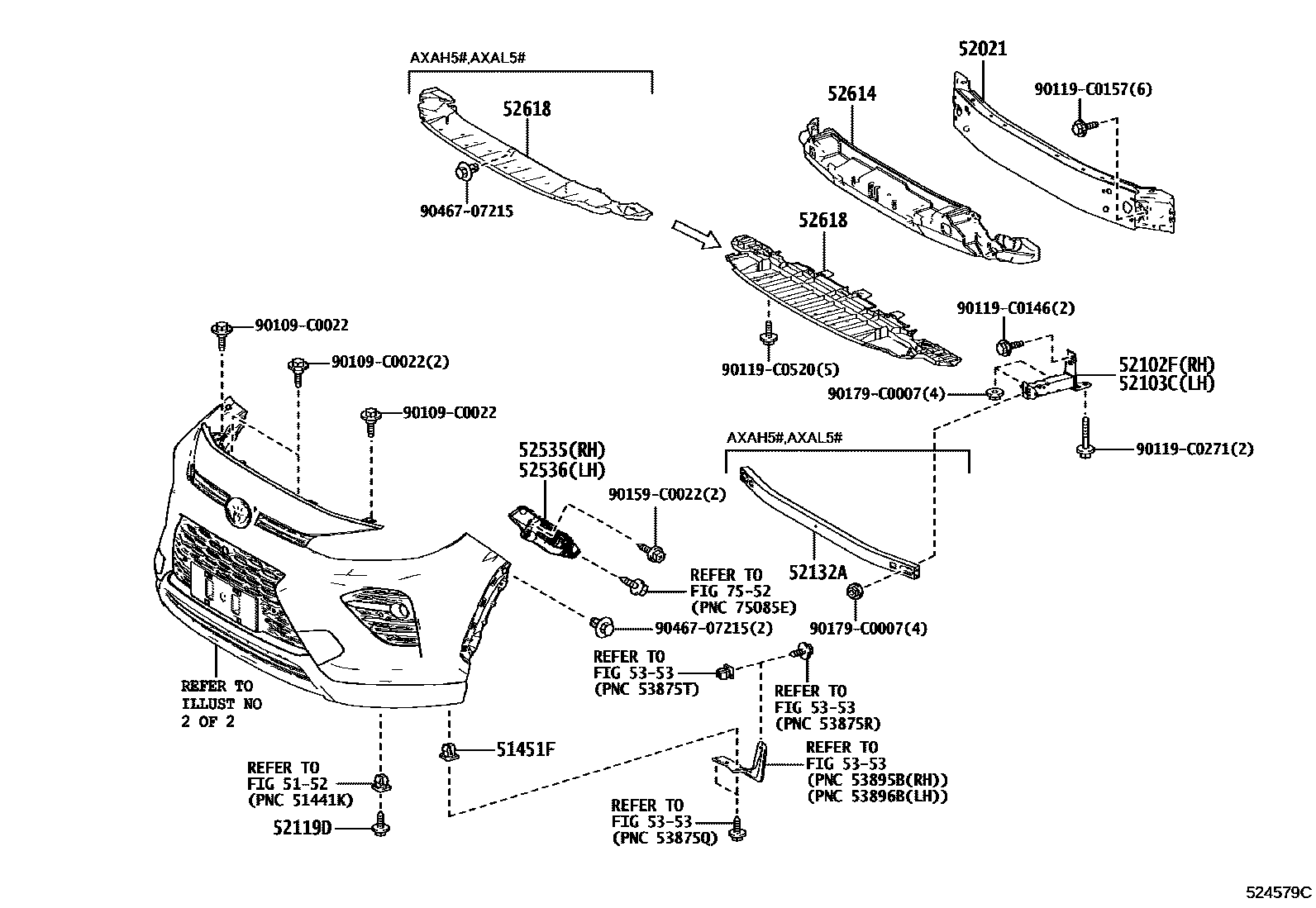

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

51451FGROMMET, NO.1

main90189-C0024iAXAL5#..G,M;MXAA5#..G,X202004-202405

5152

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-0R120iMXAA52;AXAL5#,MXAA54..G,M202004-202405

52102FEXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-0R070iMXAA5#202004-202405

main52102-0R080iAXAL52..X202004-202405

52103CEXTENSION SUB-ASSY, FRONT BUMPER, LH

main52103-0R070iMXAA5#202004-202405

main52103-0R080iAXAL5#..G,M202004-202405

52119DSCREW, NO.1

main90159-C0049iAXAH5#,MXAA5#202004-202405

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-0R090iAXAL5#..G,M202004-202405

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-0R060iMXAA52;AXAL5#,MXAA54..G,M202405

NO PAINT REQ.

main52535-0R060iAXAL52..X202004-202405

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-0R090iAXAL52..X202004-202405

main52536-0R090iMXAA52;AXAL5#,MXAA54..G,M202405

NO PAINT REQ.

52614ABSORBER, FRONT BUMPER ENERGY, NO.2

main52614-0R120iMXAA52;AXAL5#,MXAA54..G,M202004-202405

52618ABSORBER, FRONT BUMPER, LOWER

main52618-0R090iMXAA5#202004-202405

main52618-0R100iAXAL52..X202004-202405

5353

7552

90109C0022

main90109-C0022

90119C0146

main90119-C0146

90119C0157

main90119-C0157

90119C0271

main90119-C0271

90119C0520

main90119-C0520

90159C0022

main90159-C0022

90179C0007

main90179-C0007

9046707215

main90467-07215

21 parts on this diagram · 3 diagrams in section
