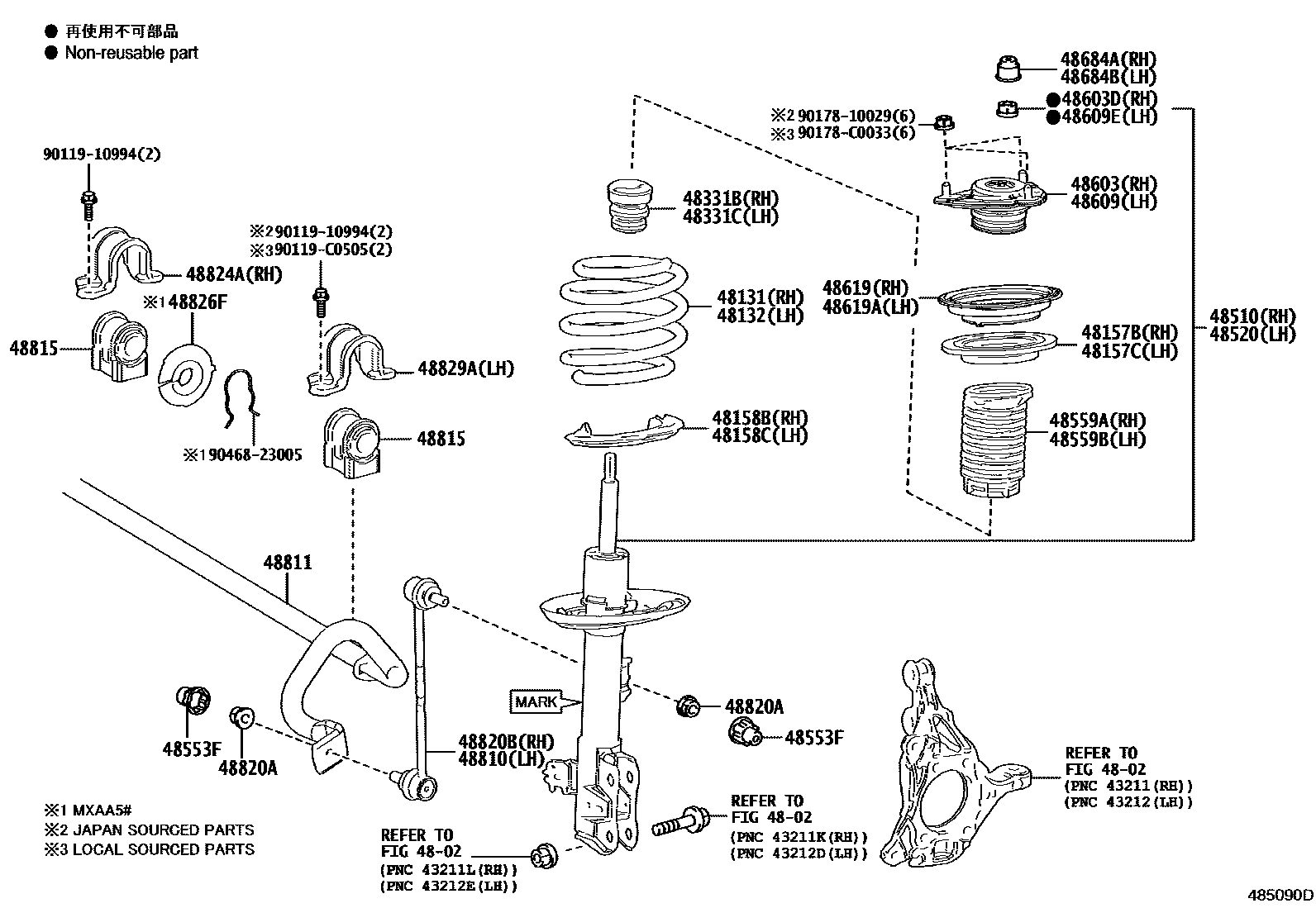

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-0R290iMXAA54202004-202303

main48131-0R300iAXAH5#202004-202303

main48131-0R340iMXAA52202004-202303

48132SPRING, FRONT COIL, LH

main48131-0R290iMXAA54202304-202405

main48131-0R300iAXAL5#..G,M202405

main48131-0R340iMXAA52202004-202303

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-06230iMXAA52;AXAL5#,MXAA54..G,M202304-202405

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-06230iMXAA52;AXAL5#,MXAA54..G,M202405

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-06270iMXAA52;AXAL5#,MXAA54..G,M202405

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-06270iAXAL52..X202304

48331BBUMPER, FRONT SPRING, RH

main48331-0R060iMXAA52;AXAL5#,MXAA54..G,M202405

48331CBUMPER, FRONT SPRING, LH

main48331-0R060iAXAL52..X202304

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-8Z430iAXAL5#..G,M202304-202405

MARK 48510-0R220

main48510-8Z431iMXAA5#202004-202303

MARK 48510-0R150

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-8Z284iAXAH5#202004-202303

MARK 48520-0R220

main48520-8Z285iMXAA5#202405

MARK 48520-0R150

48553FCAP

main48553-52030×4iAXAH5#,MXAA5#202004-202110

48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1

main48559-0R050iMXAA52;AXAL5#,MXAA54..G,M202405

48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1

main48559-0R050iMXAA52;AXAL5#,MXAA54..G,M202405

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-0R070iMXAA52;AXAL5#,MXAA54..G,M202405

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90177-14007iMXAA52;AXAL5#,MXAA54..G,M202304-202405

(J)

main90177-C0025iMXAA52;AXAL5#,MXAA54..G,M202304-202405

(L)

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-0R070iMXAA52;AXAL5#,MXAA54..G,M202405

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90177-14007iMXAA52;AXAL5#,MXAA54..G,M202405

(J)

main90177-C0025iAXAL52..X202304

(L)

48619BEARING, STRUT MOUNTING, RH

main48619-0R070iMXAA52;AXAL5#,MXAA54..G,M202304-202405

48619ABEARING, STRUT MOUNTING, LH

main48619-0R070iMXAA52;AXAL5#,MXAA54..G,M202405

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-33030iMXAA52;AXAL5#,MXAA54..G,M202405

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-33030iMXAA52;AXAL5#,MXAA54..G,M202405

48810LINK ASSY, FRONT STABILIZER, LH

main48820-06130iMXAA52;AXAL5#,MXAA54..G,M202405

main48820-0R030iAXAH5#,MXAA5#202004-202010

48811BAR, STABILIZER, FRONT

main48811-0R070iMXAA5#202405

main48811-0R080iAXAL5#..G,M202405

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-06270×2iMXAA5#202304-202405

main48815-0R180×2iAXAL52..X202304

48820ANUT(FOR FRONT STABILIZER LINK)

main90178-C0018×4iAXAL52..X202304

(L)

main94151-21241×4iAXAH5#,MXAA5#202004-202303

(J)

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-06130iAXAL52..X202304

main48820-0R030iAXAH5#,MXAA5#202004-202010

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-06060iAXAH5#,MXAA5#202004-202303

48826FPROTECTOR, STABILIZER

main48826-0R030iMXAA5#202405

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-06060iMXAA52;AXAL5#,MXAA54..G,M202405

9011910994

main90119-10994

90119C0505

main90119-C0505

9017810029

main90178-10029

90178C0033

main90178-C0033

9046823005

main90468-23005

35 parts on this diagram · 1 diagram in section
