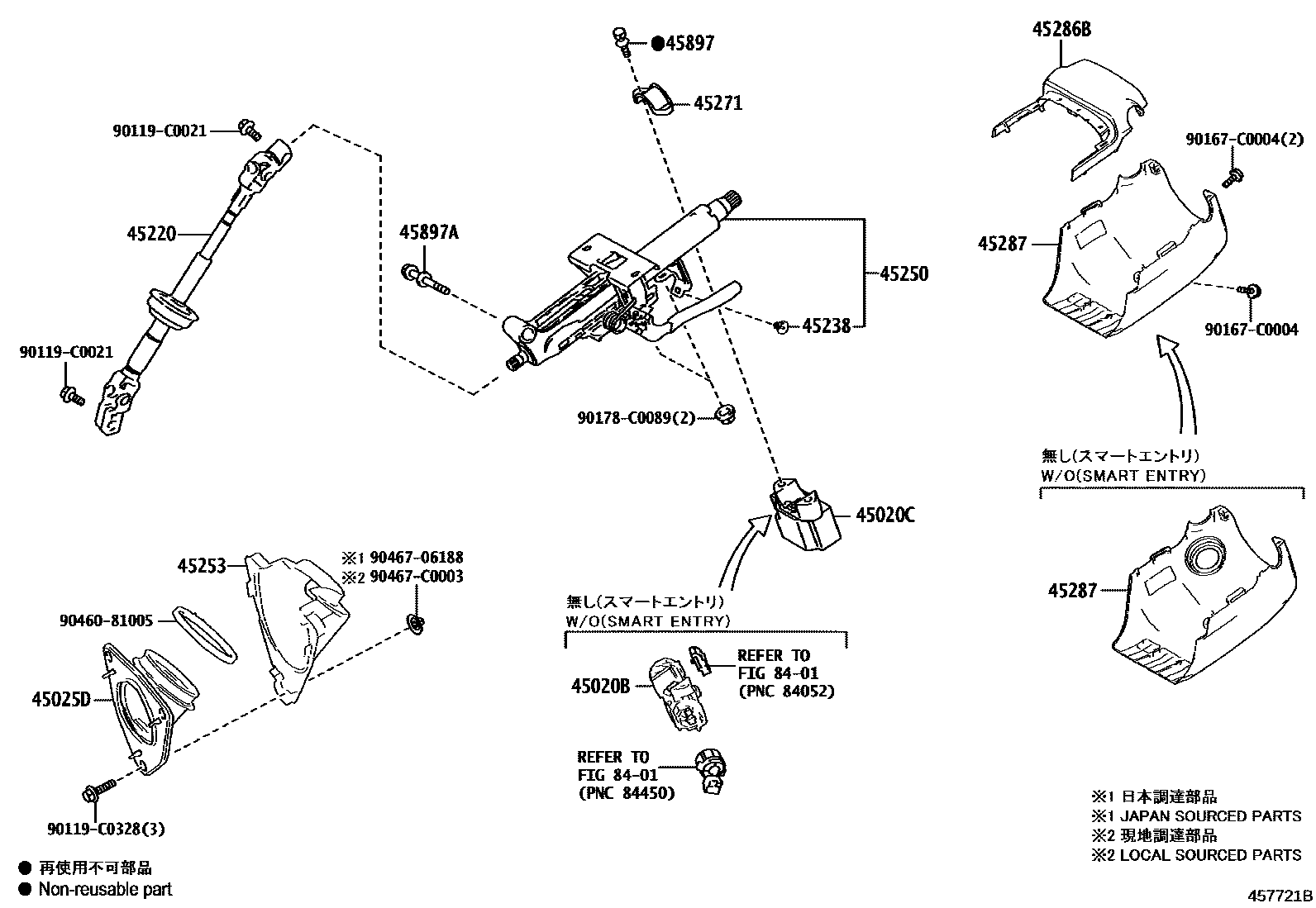

STEERING COLUMN & SHAFT

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45280-06180iMXAA52..X202405

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-06290iAXAH5#,MXAA54;MXAA52..A,G,M202004-202303

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0R060iAXAH5#,MXAA5#202004-202303

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-0R030iAXAH5#,MXAA5#202004-202303

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iAXAH5#,MXAA5#202004-202303

45250COLUMN ASSY, STEERING

main45250-06B71iMXAA52..X202405

main45250-06B81iAXAL5#,MXAA5#..G,M202405

45253COVER, STEERING COLUMN HOLE

main45253-0R030iAXAH5#,MXAA5#202004-202303

45271CLAMP, STEERING COLUMN, UPPER

main45271-0A010iAXAH5#,MXAA5#202203-202303

main45271-52030iAXAH5#,MXAA5#202004-202203

45286BCOVER, STEERING COLUMN, UPR

main45286-06340-C0iAXAL5#,MXAA5#..G,M; MXAA52..X202304-202405

BLACK,TRIM0#,1#,2#; BLACK,TRIM2#

45287COVER, STEERING COLUMN, LWR

main45287-06440-C0iMXAA52..X202304-202405

BLACK,TRIM2#

main45287-06450-C0iAXAH5#,MXAA5#..A,G,M; AXAH52..X202004-202303

BLACK,TRIM1#,2#; BLACK,TRIM2#

45897BOLT, STEERING LOCK SET

main45897-12020×2iAXAH5#,MXAA5#202004-202303

45897ABOLT, TILT STEERING PAWL SET

main90119-10980iAXAH5#,MXAA5#202004-202303

(J)

main90119-C0427iAXAL52..X202304

(L)

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90119C0021

main90119-C0021

90119C0328

main90119-C0328

90167C0004

main90167-C0004

90178C0089

main90178-C0089

9046081005

main90460-81005

9046706188

main90467-06188

90467C0003

main90467-C0003

20 parts on this diagram · 1 diagram in section
