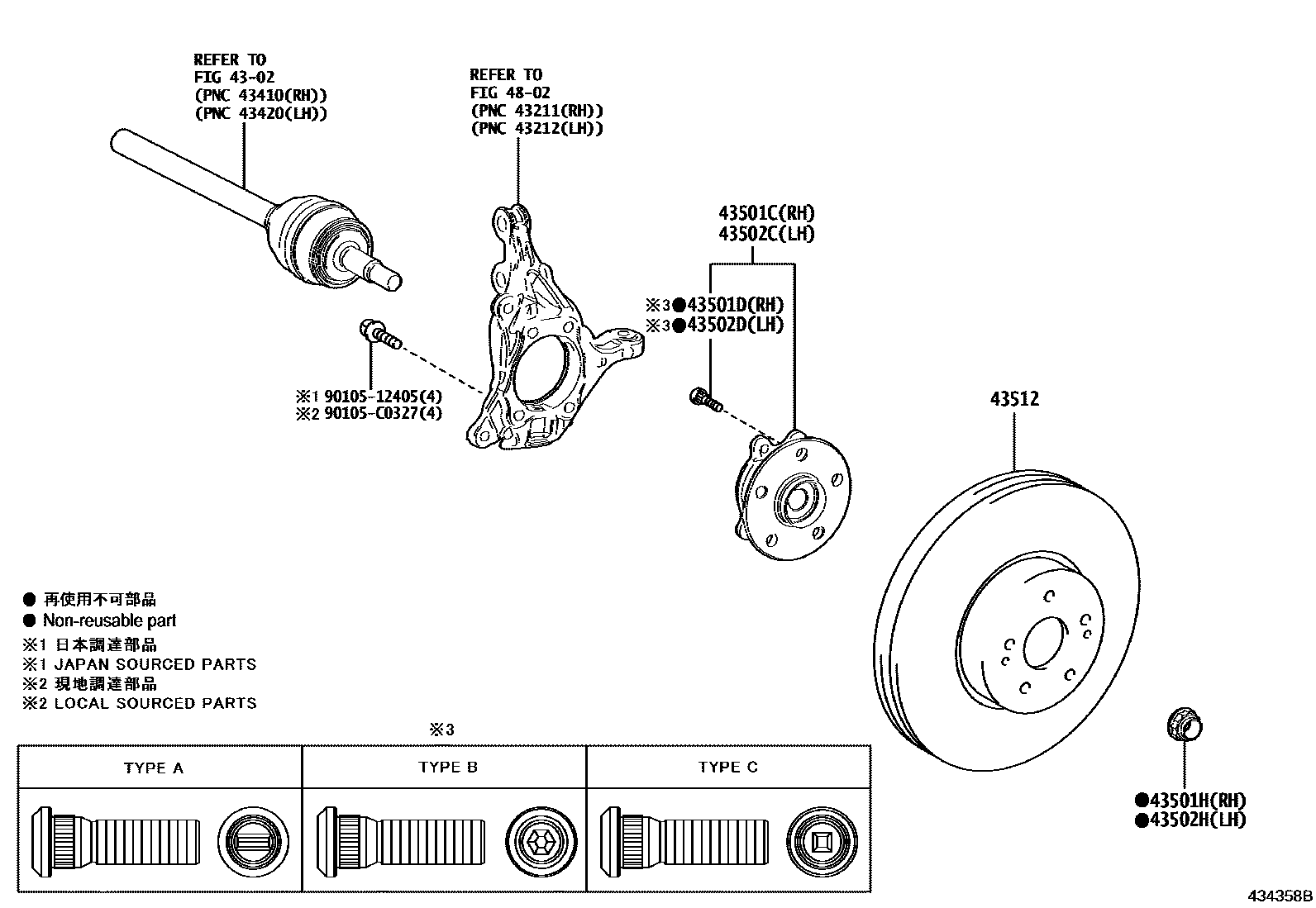

FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-06040iMXAA5#202004-202405

main43550-06080iAXAH5#202004-202303

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iMXAA52;AXAL5#,MXAA54..G,M202004-202405

TYPE A:REFER ILLUST.

main90942-02081iMXAA52;AXAL5#,MXAA54..G,M202004-202405

TYPE B:REFER ILLUST.

main90942-02082iAXAL52..X202004-202405

TYPE C:REFER ILLUST.

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iAXAL52..X202004-202405

(J)

main90177-C0004iAXAH5#,MXAA5#202004-202405

(L)

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-06040iMXAA52;AXAL5#,MXAA54..G,M202004-202405

main43550-06080iAXAH5#202004-202303

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iMXAA52;AXAL5#,MXAA54..G,M202004-202405

TYPE A:REFER ILLUST.

main90942-02081iAXAL52..X202004-202405

TYPE B:REFER ILLUST.

main90942-02082iMXAA54..M;AXAH5#,MXAA52202004-202405

TYPE C:REFER ILLUST.

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iMXAA52;AXAL5#,MXAA54..G,M202004-202405

(J)

main90177-C0004iMXAA52;AXAL5#,MXAA54..G,M202004-202405

(L)

43512DISC, FRONT

main43512-06170iMXAA52;AXAL5#,MXAA54..G,M202004-202405

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9010512405

main90105-12405

90105C0327

main90105-C0327

11 parts on this diagram · 1 diagram in section
