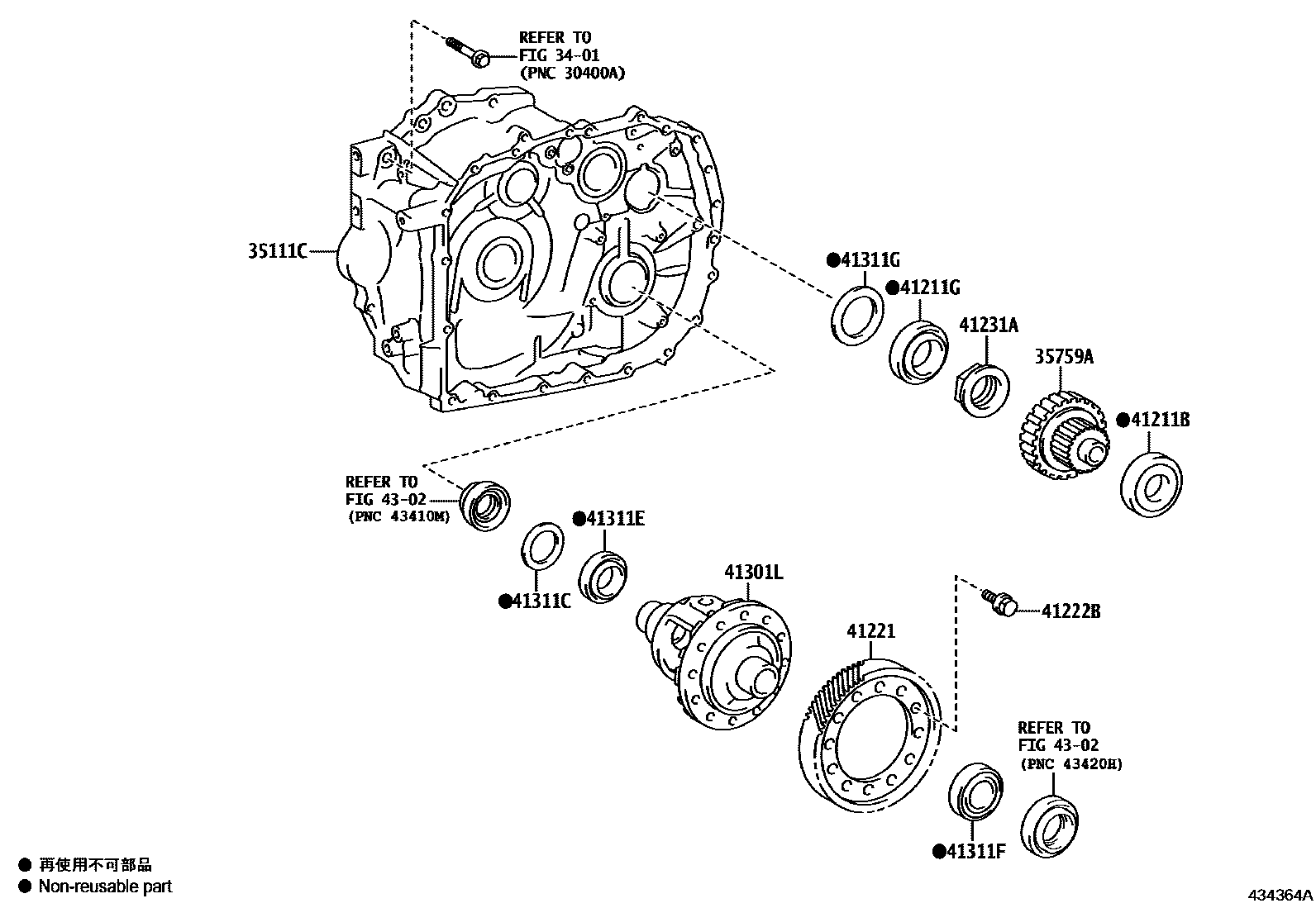

FRONT AXLE HOUSING & DIFFERENTIAL
3401TRANSAXLE ASSY(CVT)
35759AGEAR, REDUCTION DRIVEN
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
TMH:FIG.34-01
TMCAP:REFER 34-01
TMH:REFER 34-01
TMCAP:REFER 34-01
41211GBEARING, THRUST NEEDLE ROLLER(FOR FRONT DRIVE PINION LH)
TMH:REFER 34-01
TMH:FIG.34-01
TMCAP:REFER 34-01
TMCAP:REFER 34-01
41221GEAR, FRONT DIFFERENTIAL RING
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41231ANUT, DRIVE PINION LOCK
41301LCASE SUB-ASSY, FRONT DIFFERENTIAL, NO.1
TMCAP:REFER 34-01
TMH:REFER 34-01
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=1.76,MARK A,TMH:FIG.34-01
T=1.79,MARK B,TMH:FIG.34-01
T=1.82,MARK C,TMH:FIG.34-01
T=1.85,MARK D,TMH:FIG.34-01
T=1.88,MARK E,TMH:FIG.34-01
T=1.91,MARK F,TMH:FIG.34-01
T=1.94,MARK G,TMH:FIG.34-01
T=1.97,MARK H,TMH:FIG.34-01
T=2.00,MARK J,TMH:FIG.34-01
T=2.03,MARK K,TMH:FIG.34-01
T=2.06,MARK L,TMH:FIG.34-01
T=2.09,MARK M,TMH:FIG.34-01
T=2.12,MARK N,TMH:FIG.34-01
T=2.15,MARK P,TMH:FIG.34-01
T=2.18,MARK Q,TMH:FIG.34-01
T=2.21,MARK R,TMH:FIG.34-01
T=2.24,MARK S,TMH:FIG.34-01
T=2.27,MARK T,TMH:FIG.34-01
T=2.30,MARK U,TMH:FIG.34-01
T=2.33,MARK V,TMH:FIG.34-01
T=1.77,MARK A
T=1.80,MARK B
T=1.83,MARK C
T=1.86,MARK D
T=1.89,MARK E
T=1.92,MARK F
T=1.95,MARK G
T=1.98,MARK H
T=2.01,MARK J
T=2.04,MARK K
T=2.07,MARK L
T=2.10,MARK M
T=2.13,MARK N
T=2.16,MARK P
T=2.19,MARK Q
T=2.22,MARK R
T=2.25,MARK S
T=2.28,MARK T
T=2.31,MARK U
T=1.76,TMCAP:REFER 34-01
T=1.79,TMCAP:REFER 34-01
T=1.82,TMCAP:REFER 34-01
T=1.85,TMCAP:REFER 34-01
T=1.88,TMCAP:REFER 34-01
T=1.91,TMCAP:REFER 34-01
T=1.94,TMCAP:REFER 34-01
T=1.97,TMCAP:REFER 34-01
T=2.00,TMCAP:REFER 34-01
T=2.03,TMCAP:REFER 34-01
T=2.06,TMCAP:REFER 34-01
T=2.09,TMCAP:REFER 34-01
T=2.12,TMCAP:REFER 34-01
T=2.15,TMCAP:REFER 34-01
T=2.18,TMCAP:REFER 34-01
T=2.21,TMCAP:REFER 34-01
T=2.24,TMCAP:REFER 34-01
T=2.27,TMCAP:REFER 34-01
T=2.30,TMCAP:REFER 34-01
T=2.33,TMCAP:REFER 34-01
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
TMH:REFER 34-01
TMH:FIG.34-01
TMCAP:REFER 34-01
TMCAP:REFER 34-01
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
TMH:FIG.34-01
TMCAP:REFER 34-01
TMH:REFER 34-01
TMCAP:REFER 34-01
41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
T=1.59, MARK A
T=1.59, MARK A,TMH:FIG.34-01
T=1.62, MARK B
T=1.62, MARK B,TMH:FIG.34-01
T=1.65, MARK C,TMH:FIG.34-01
T=1.65, MARK C
T=1.68, MARK D
T=1.68, MARK D,TMH:FIG.34-01
T=1.71, MARK E,TMH:FIG.34-01
T=1.71, MARK E
T=1.74, MARK F,TMH:FIG.34-01
T=1.74, MARK F
T=1.77, MARK G,TMH:FIG.34-01
T=1.77, MARK G
T=1.80, MARK H
T=1.80, MARK H,TMH:FIG.34-01
T=1.83, MARK J,TMH:FIG.34-01
T=1.83, MARK J
T=1.86, MARK K,TMH:FIG.34-01
T=1.86, MARK K
T=1.89, MARK L
T=1.89, MARK L,TMH:FIG.34-01
T=1.92, MARK M
T=1.92, MARK M,TMH:FIG.34-01
T=1.95, MARK N,TMH:FIG.34-01
T=1.95, MARK N
T=1.98, MARK P
T=1.98, MARK P,TMH:FIG.34-01
T=2.01, MARK Q
T=2.01, MARK Q,TMH:FIG.34-01
T=2.04, MARK R,TMH:FIG.34-01
T=2.04, MARK R
T=2.07, MARK S
T=2.07, MARK S,TMH:FIG.34-01
T=2.10, MARK T
T=2.10, MARK T,TMH:FIG.34-01
T=2.13, MARK U,TMH:FIG.34-01
T=2.13, MARK U
T=2.16, MARK V
T=2.16, MARK V,TMH:FIG.34-01
T=2.19, MARK W,TMH:FIG.34-01
T=2.19, MARK W
T=2.22, MARK X,TMH:FIG.34-01
T=2.22, MARK X
T=2.25, MARK Y
T=2.25, MARK Y,TMH:FIG.34-01
T=1.59,TMCAP:REFER 34-01
T=1.62,TMCAP:REFER 34-01
T=1.65,TMCAP:REFER 34-01
T=1.68,TMCAP:REFER 34-01
T=1.71,TMCAP:REFER 34-01
T=1.74,TMCAP:REFER 34-01
T=1.77,TMCAP:REFER 34-01
T=1.80,TMCAP:REFER 34-01
T=1.83,TMCAP:REFER 34-01
T=1.86,TMCAP:REFER 34-01
T=1.89,TMCAP:REFER 34-01
T=1.92,TMCAP:REFER 34-01
T=1.95,TMCAP:REFER 34-01
T=1.98,TMCAP:REFER 34-01
T=2.01,TMCAP:REFER 34-01
T=2.04,TMCAP:REFER 34-01
T=2.07,TMCAP:REFER 34-01
T=2.10,TMCAP:REFER 34-01
T=2.13,TMCAP:REFER 34-01
T=2.16,TMCAP:REFER 34-01
T=2.19,TMCAP:REFER 34-01
T=2.22,TMCAP:REFER 34-01
T=2.25,TMCAP:REFER 34-01
