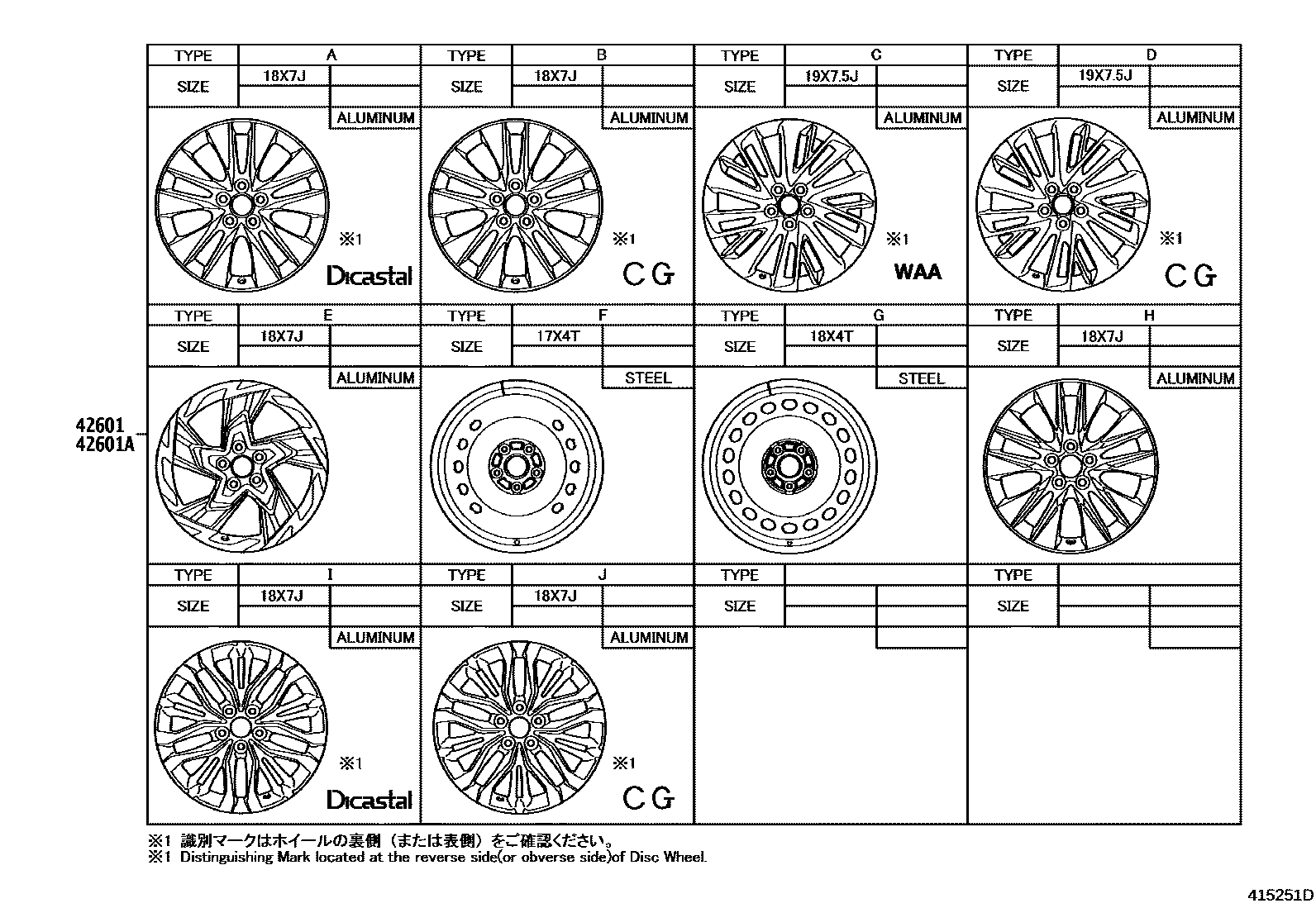

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-0R320×4iAXAH52,MXAA5#..A202004-202303

18X7J,#,TYPE E:REFER ILLUST.

main42611-0R360×4iAXAH52,MXAA52..X202004-202303

18X7J,#,TYPE A:REFER ILLUST.

main42611-0R370×4iAXAH52,MXAA52..X202004-202303

18X7J,#,TYPE B:REFER ILLUST.

main4261A-0R080×4iMXAA52..M,X;AXAL52,MXAA54..M202405

18X7J,#,TYPE A:REFER ILLUST.

main4261A-0R090×4supersedes 4261A-0R090iAXAL52..X202304

18X7J,#,TYPE B:REFER ILLUST.

main4261A-0R100×4iMXAA5#..G202405

19X7.5J,#,TYPE C:REFER ILLUST.

main4261A-0R110×4iMXAA5#..G202004-202303

19X7.5J,#,TYPE D:REFER ILLUST.

main4261A-0R180×4iAXAL5#..G202304-202405

18X7J,#,TYPE I:REFER ILLUST.

main4261A-0R190×4iAXAL54;AXAL52..G202405

18X7J,#,MID & PACKAGE,TYPE J:REFER ILLUST.

main42611-YL020×4iAXAH5#,MXAA5#..M202207-202303

18X7J,#,BLACK EDITION,TYPE H:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main4261B-0R020iAXAL5#..G,M;MXAA5#..M,X202405

17X4T,TYPE G:REFER ILLUST.

main4261B-0R030iAXAH5#;MXAA5#..A,M,X202004-202303

17X4T,TYPE F:REFER ILLUST.

main4261B-0R060iMXAA5#..G202405

18X4T,TYPE G:REFER ILLUST.

2 parts on this diagram · 3 diagrams in section
