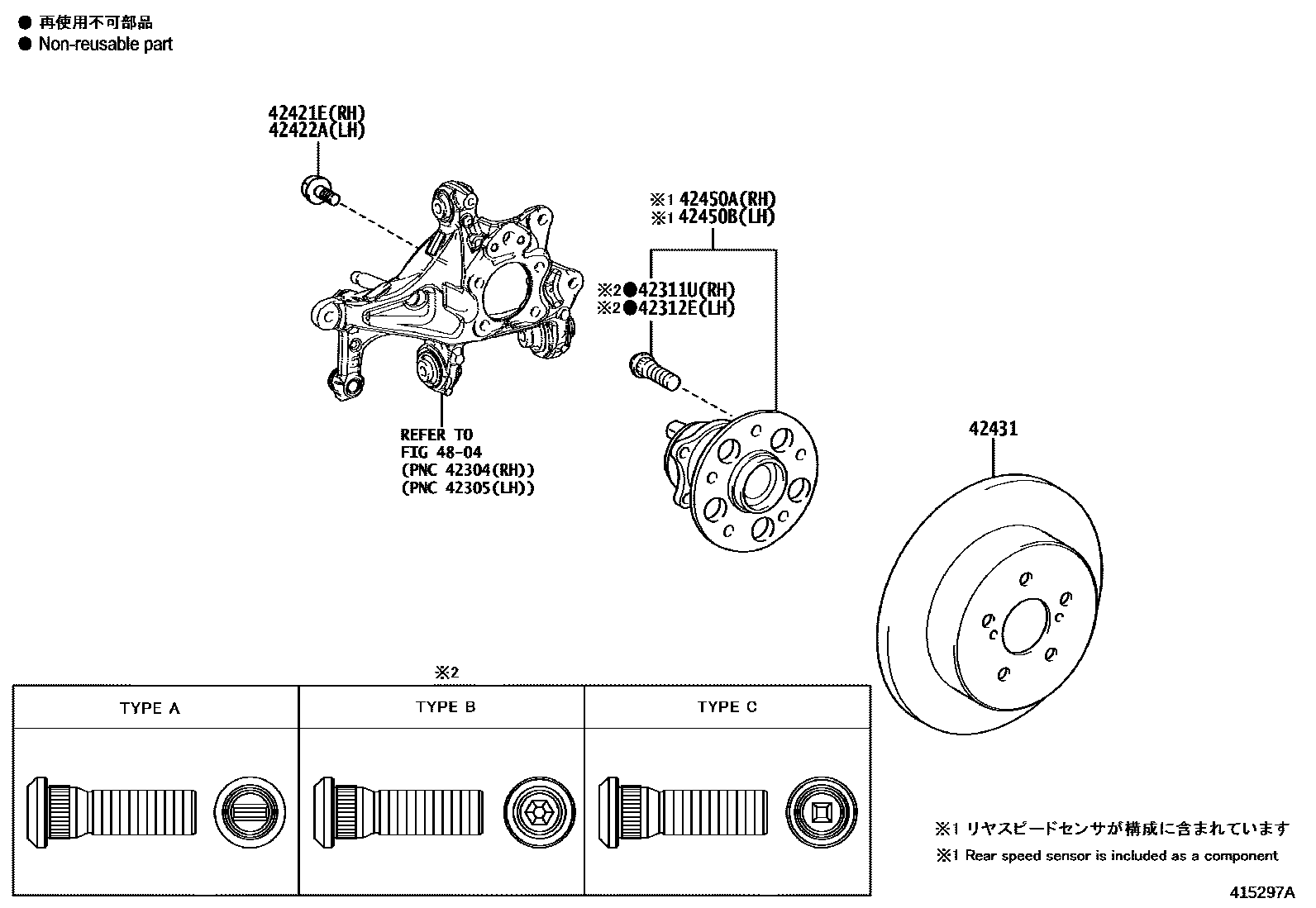

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1TYPE A 0004 1TYPE B

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iMXAA52;AXAL5#,MXAA54..G,M202304-202405

TYPE A:REFER ILLUST.

main90942-02081×5iAXAH5#,MXAA5#202004-202303

TYPE B:REFER ILLUST.

main90942-02082×5iAXAL52..X202304

TYPE C:REFER ILLUST.

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iMXAA52;AXAL5#,MXAA54..G,M202405

TYPE A:REFER ILLUST.

main90942-02081×5iAXAL52..X202304

TYPE B:REFER ILLUST.

main90942-02082×5iAXAH5#,MXAA5#202004-202303

TYPE C:REFER ILLUST.

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-C0328×4iMXAA52;AXAL5#,MXAA54..G,M202405

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-C0328×4iAXAH5#,MXAA5#202004-202303

42431DISC, REAR

main42431-06190×2iAXAL52..X202304

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-0R040iAXAL54,MXAA54202304-202405

main42450-F4020iAXAH52,MXAA52202004-202303

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-0R040iAXAL54,MXAA54202405

main42450-F4020iMXAA52;AXAL52..G,M202405

4804

8 parts on this diagram · 4 diagrams in section
