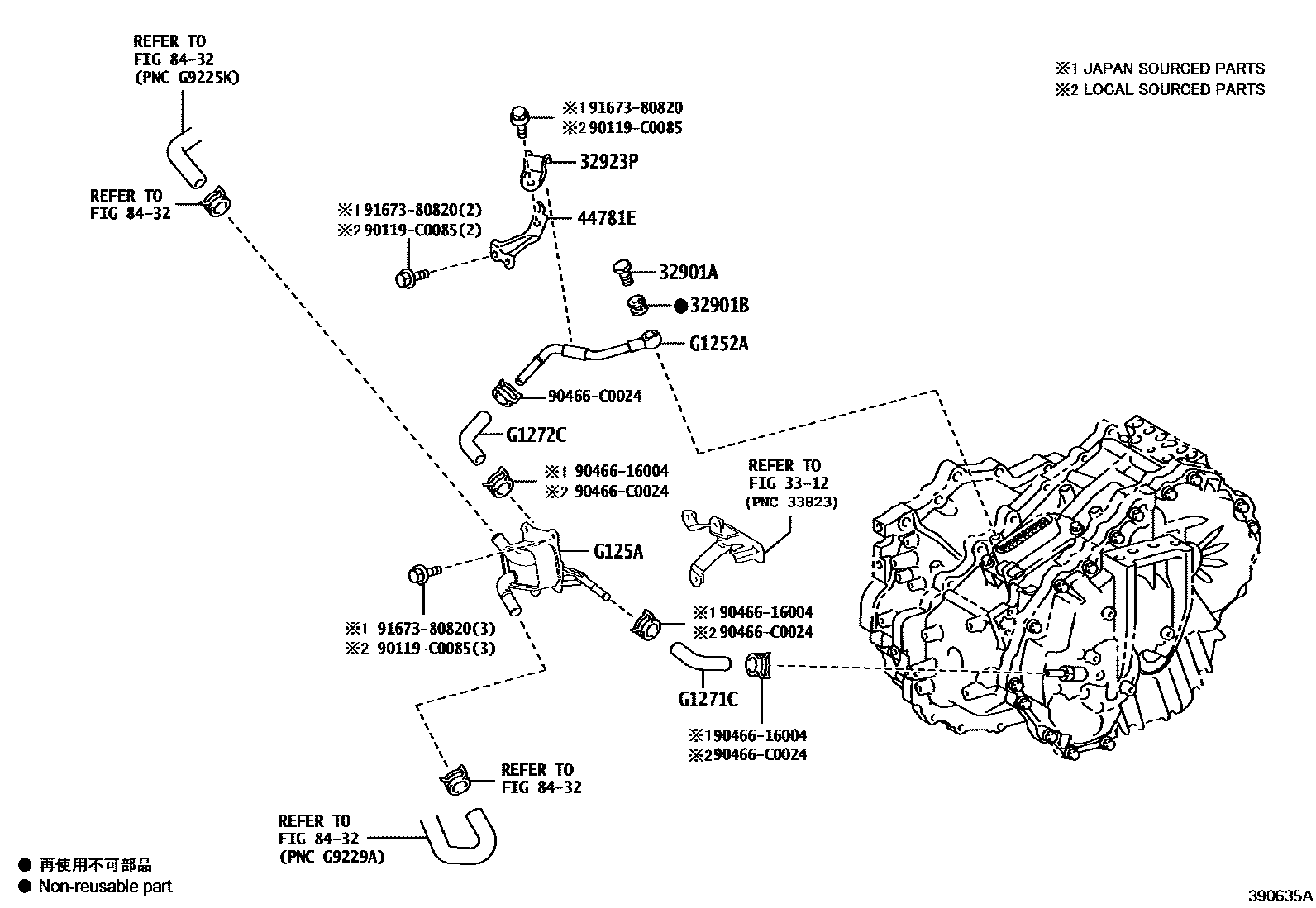

OIL COOLER & TUBE (HEV OR BEV OR FCEV)

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039iAXAL5#..G,M202405

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037iAXAL5#..G,M202405

32923PCLAMP, OIL COOLER TUBE, NO.1

main32923-52040iAXAL5#..G,M202405

3312SHIFT LEVER & RETAINER

→ Go to FIG 33-12

44781EBRACKET, HOSE

main44781-06030iAXAL5#..G,M202405

8432INVERTER COOLING

→ Go to FIG 84-32

G1252APIPE, MOTOR COOLING, NO.2

mainG125206030iAXAL5#..G,M202405

G125ACOOLER, MOTOR COOLING

mainG125A0R010iAXAL5#..G,M202405

G1271CHOSE, MOTOR COOLING, NO.1

mainG127106040iAXAL5#..G,M202405

G1272CHOSE, MOTOR COOLING, NO.2

mainG127206030iAXAL5#..G,M202405

90119C0085

main90119-C0085

9046616004

main90466-16004

90466C0024

main90466-C0024

9167380820

main91673-80820

14 parts on this diagram · 1 diagram in section
