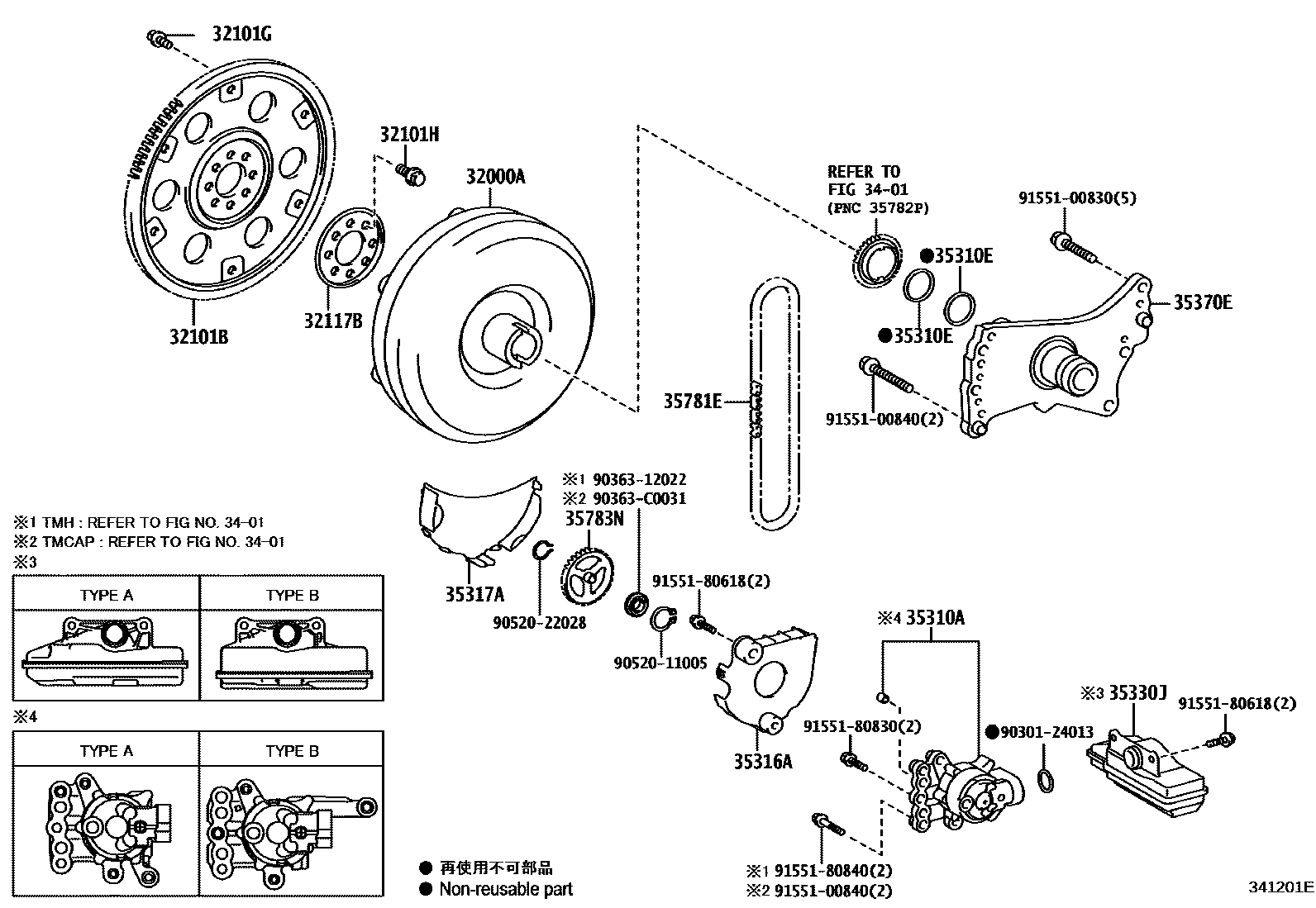

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

0001 1K120,K120F 0002 1K121,K121F

32000ACONVERTER ASSY, TORQUE

main32000-0R020iMXAA52202304-202405

TMCAP:REFER 34-01

main32000-12520iMXAA5#202004-202303

TMH:REFER 34-01

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-0R020iMXAA5#202004-202303

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iMXAA5#202405

*9-1.25PX12.4-7.3,BLACK

main90119-09025×5iMXAA5#202405

*9-1.25PX12.4-8.4,SILVER WHITE

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12404×8iMXAA5#202004-202303

32117BSPACER, DRIVE PLATE, REAR

main32117-0R010iMXAA5#202405

3401

35310APUMP ASSY, FRONT OIL

main35310-12200iMXAA52202004-202208

TYPE A:REFER ILLUST.

main35310-28050iMXAA5#202106-202303

TYPE B:REFER ILLUST.

main35310-42010iMXAA52202304-202405

TMH:REFER 34-01,TMCAP:REFER 34-01

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-12060×2iMXAA5#202004-202303

35316APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.1

main35316-12010iMXAA52202304-202405

TMH:REFER 34-01

main35316-F4010iMXAA52202304-202405

TMCAP:REFER 34-01

35317APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.2

main35317-12010iMXAA52202104-202212

TMCAP:REFER 34-01

main35317-F4010iMXAA52202301-202303

TMCAP:REFER 34-01

35330JSTRAINER ASSY, OIL

main35330-0R020iMXAA52202104-202208

T/P A,TMCAP:REF34-01

main35330-12080iMXAA54202004-202106

TYPE A,TMH:REF.34-01

main35330-28040iMXAA5#202405

TMH:REFER 34-01

main35330-F4010iMXAA52202304-202405

TMCAP:REFER 34-01

35370ESHAFT ASSY, STATOR (CVT)

main35370-12120iMXAA5#202004-202303

35781ECHAIN, TRANSMISSION DRIVE

main35781-0R020iMXAA52202304-202405

TMCAP:REFER 34-01

main35781-12010iMXAA52202104-202206

TMCAP:REFER 34-01

main35781-42010iMXAA52202304-202405

TMH:REFER 34-01

35783NSPROCKET, DRIVEN

main35783-12060iMXAA5#202405

9030124013

main90301-24013

9036312022

main90363-12022

90363C0031

main90363-C0031

9052011005

main90520-11005

9052022028

main90520-22028

9155100830

main91551-00830

9155100840

main91551-00840

9155180618

main91551-80618

9155180830

main91551-80830

9155180840

main91551-80840

24 parts on this diagram · 2 diagrams in section
