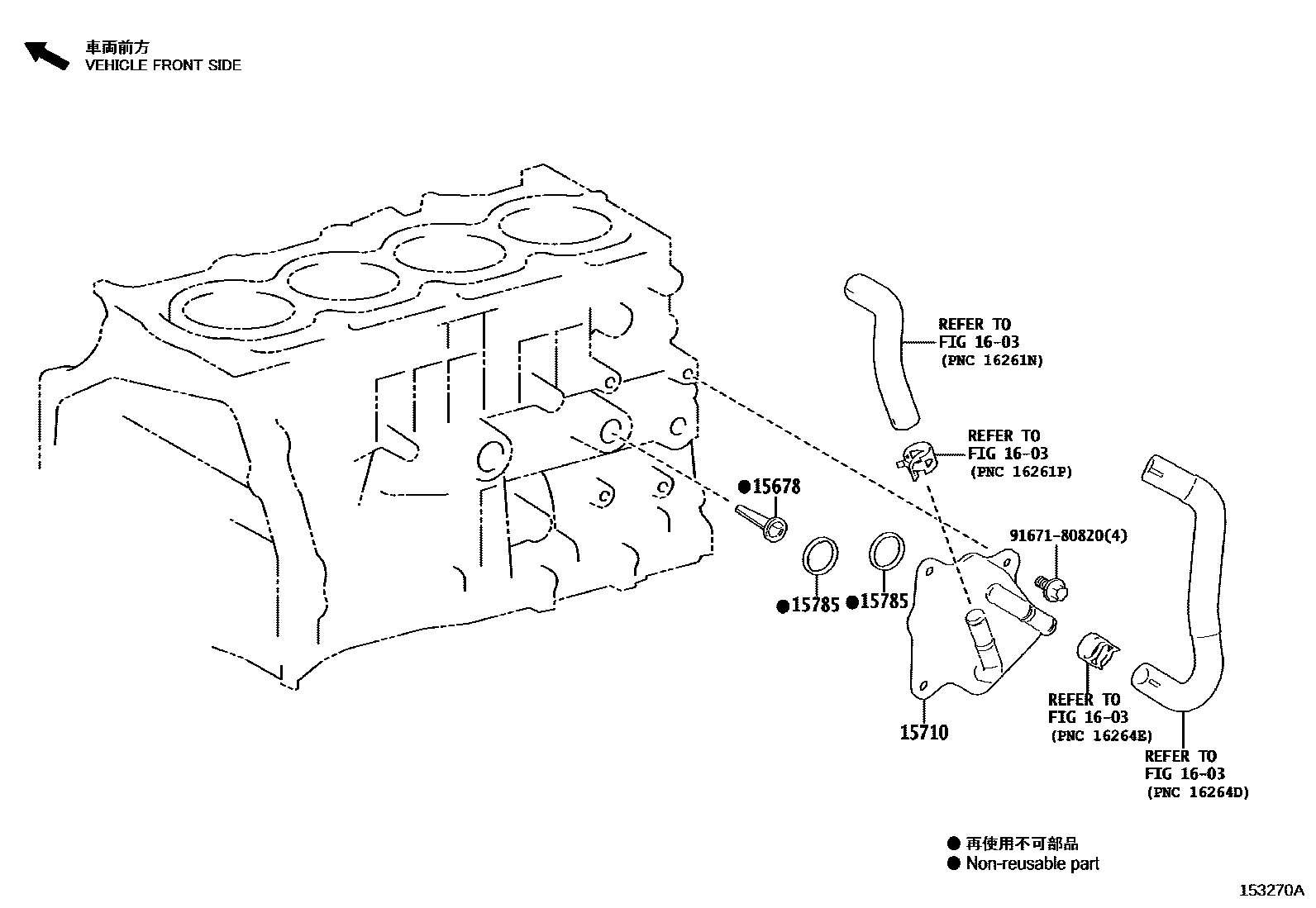

ENGINE OIL COOLER

0001 1 0002 1

15678FILTER, OIL CONTROL VALVE

main15678-25010iA25..AXAH5#202004-202105

*636

15710COOLER ASSY, OIL

main15710-24010iM20CFKS..MXAA5#202304-202405

(J)

main15710-25010iA25..AXAH5#202004-202105

*636

main15710-F2010iM20CFKS..MXAA5#202004-202303

(L)

15785GASKET, OIL COOLER

main15785-25010×2iA25..AXAH5#202004-202105

*636

main15785-F2010×2iM20CFKS..MXAA5#202405

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

9167180820

main91671-80820

5 parts on this diagram · 2 diagrams in section
