11711BEARING, CRANKSHAFT

main11701-F2020-01×5i202004-202303

MARK 1,REFER REPAIR MANUAL

main11701-F2020-02×5i202405

MARK 2,REFER REPAIR MANUAL

main11701-F2020-03×5i202405

MARK 3,REFER REPAIR MANUAL

main11701-F2020-04×5i202004-202303

MARK 4,REFER REPAIR MANUAL

main11701-F2020-05×5i202304-202405

MARK 5,REFER REPAIR MANUAL

main11701-F2020-06×5i202405

MARK 6,REFER REPAIR MANUAL

main11701-25010-01×5supersedes 11701-F0040-05i202304-202405

ENGINE-A25B-FXS,MARK 1,*636,NO.1&2,REF. R/M

main11701-25010-02×5supersedes 11701-F0040-05i202304-202405

ENGINE-A25B-FXS,MARK 2,*636,NO.1&2,REF. R/M

main11701-25010-03×5supersedes 11701-F0040-05i202304

ENGINE-A25B-FXS,MARK 3,*636,NO.1&2,REF. R/M

main11701-25010-04×5supersedes 11701-F0040-05i202304

ENGINE-A25B-FXS,MARK 4,*636,NO.1&2,REF. R/M

main11701-25010-05×5supersedes 11701-F0040-05i202304-202405

ENGINE-A25B-FXS,MARK 5,*636,NO.1&2,REF. R/M

main11701-25020-01×2supersedes 11701-F0040-05i202105-202111

ENGINE-A25B-FXS,MARK 1,*636,NO.2,REFER R/M

main11701-25020-02×2supersedes 11701-F0040-05i202105-202111

ENGINE-A25B-FXS,MARK 2,*636,NO.2,REFER R/M

main11701-25020-03×2supersedes 11701-F0040-05i202105-202111

ENGINE-A25B-FXS,MARK 3,*636,NO.2,REFER R/M

main11701-25020-04×2supersedes 11701-F0040-05i202105-202111

ENGINE-A25B-FXS,MARK 4,*636,NO.2,REFER R/M

main11701-25020-05×2supersedes 11701-F0040-05i202105-202111

ENGINE-A25B-FXS,MARK 5,*636,NO.2,REFER R/M

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-F2030×2i202405

STD

main11791-25040×2supersedes 11791-F0020i202105-202303

STD,ENGINE-A25B-FXS,*636

13011RING SET, PISTON

main13011-F2030×4i202304-202405

STD

main13011-25080supersedes 13011-F0060i202304-202405

STD,ENGINE-A25B-FXS,*636

13041BEARING, CONNECTING ROD

main13041-F2020-01×4i202304-202405

MARK 1,REFER REPAIR MANUAL

main13041-F2020-02×4i202304-202405

MARK 2,REFER REPAIR MANUAL

main13041-F2020-03×4i202405

MARK 3,REFER REPAIR MANUAL

main13041-25020-01×4supersedes 13041-F0020-03i202304-202405

ENGINE-A25B-FXS,MARK 1,*636:REFER R/M

main13041-25020-02×4supersedes 13041-F0020-03i202304-202405

ENGINE-A25B-FXS,MARK 2,*636:REFER R/M

main13041-25020-03×4supersedes 13041-F0020-03i202304

ENGINE-A25B-FXS,MARK 3,*636:REFER R/M

13101PISTON SUB-ASSY, W/PIN

main13101-24040×4i202405

STD

main13101-F2050×4i202004-202303

STD

main13101-25040×4supersedes 13101-F0050i202105-202303

STD,ENGINE-A25B-FXS,*636

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-19019×8i202405

main90520-21024×8i202304-202405

*634; ENGINE-A25B-FXS,*636

13201ROD SUB-ASSY, CONNECTING

main13201-F9041-A0×4i202004-202303

MARK A,REFER REPAIR MANUAL

main13201-F9041-B0×4i202004-202303

MARK B,REFER REPAIR MANUAL

main13201-F9041-C0×4i202004-202303

MARK C,REFER REPAIR MANUAL

main13201-29815-A0×4supersedes 13201-F9070-C0i202105-202303

ENGINE-A25B-FXS,MARK A,*636:REFER R/M

main13201-29815-B0×4supersedes 13201-F9070-C0i202304-202405

ENGINE-A25B-FXS,MARK B,*636:REFER R/M

main13201-29815-C0×4supersedes 13201-F9070-C0i202304-202405

ENGINE-A25B-FXS,MARK C,*636:REFER R/M

13265BOLT, CONNECTING ROD

main13265-F2010×8i202004-202303

main13265-25020×8supersedes 13265-F2010i202304

ENGINE-A25B-FXS,*636

13405FLYWHEEL SUB-ASSY

main13451-25030supersedes 13451-F0020i202304-202405

ENGINE-A25B-FXS,*636

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08120×3supersedes 90250-C0011i202304-202405

L=18,OD=8,(J),*634; L=18,OD=8,ENGINE-A25B-FXS,*636

13405BBOLT, FLYWHEEL SETTING

main90105-12404×8supersedes 90105-C0352i202304-202405

(J),*634; ENGINE-A25B-FXS,*636

13411CRANKSHAFT

main13401-F2060i202004-202303

main13401-25010supersedes 13401-F0030i202304

(J),*634; ENGINE-A25B-FXS,*636

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90250-06035supersedes 90250-C0025i202403-202405

(J)

main90250-C0025i202405

(L); (L),*634

13470PULLEY ASSY, CRANKSHAFT

main13470-F2010i202304-202405

main13470-25020supersedes 13470-F0040i202304

ENGINE-A25B-FXS,*636

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-04001×2supersedes 90280-C0002i202405

*636,(J),*634

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-C0429i202405

*634

main90119-16020supersedes 90119-C0429i202304

ENGINE-A25B-FXS,*636

13519BSPROCKET, OIL PUMP DRIVE

main13519-F2040i202304-202405

main13519-25010supersedes 13519-F0020i202304-202405

ENGINE-A25B-FXS,*636

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-F2040i202004-202304

main13521-25010supersedes 13521-F0020i202105-202303

ENGINE-A25B-FXS,*636

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-F2020i202304-202405

main19315-25011supersedes 19315-F0020i202304

(J),*634; ENGINE-A25B-FXS,*636

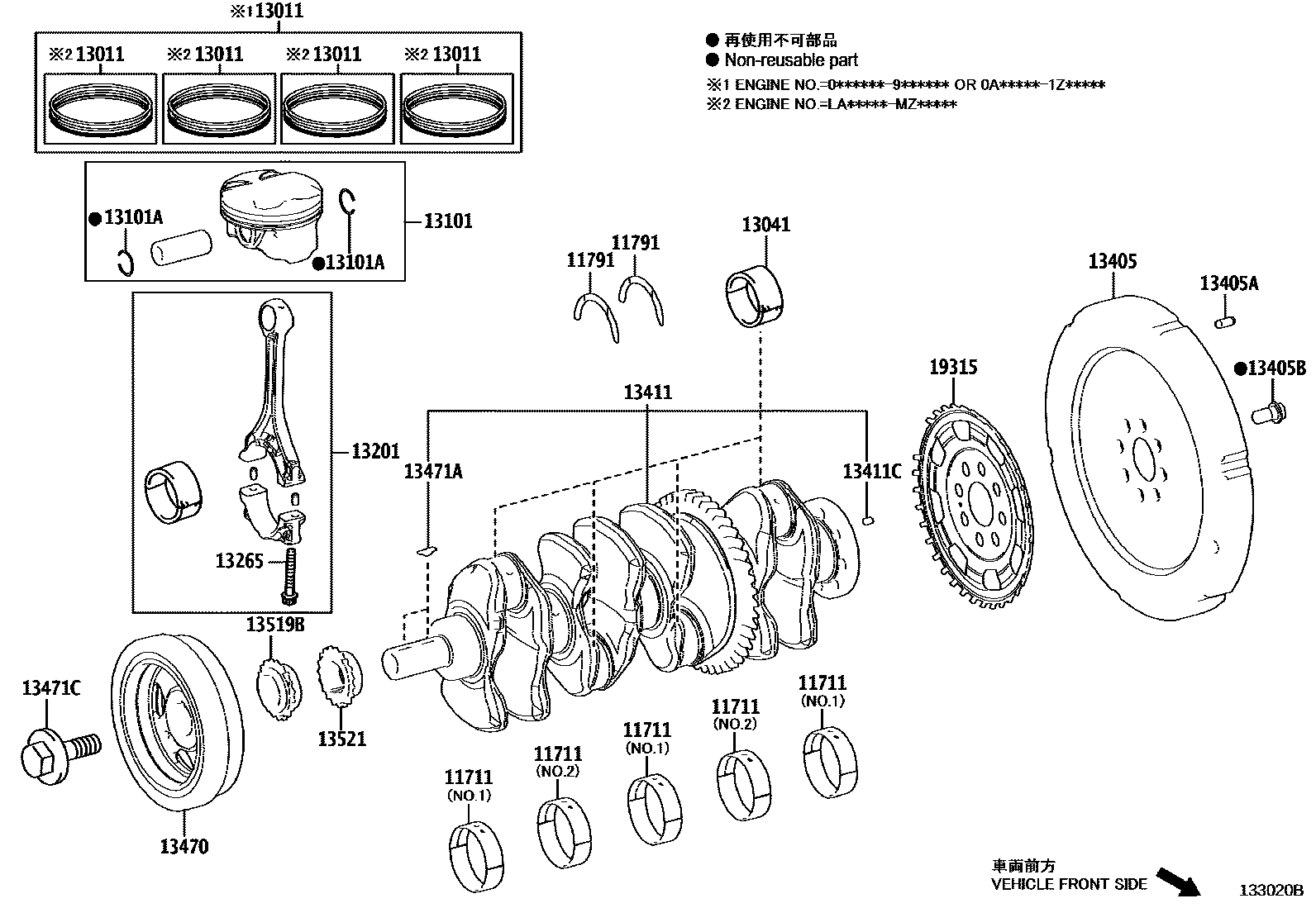

CRANKSHAFT & PISTON
