HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL PANEL 0002 1AIR DUCT 0004 1AIR DUCT 0005 1SENSOR

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

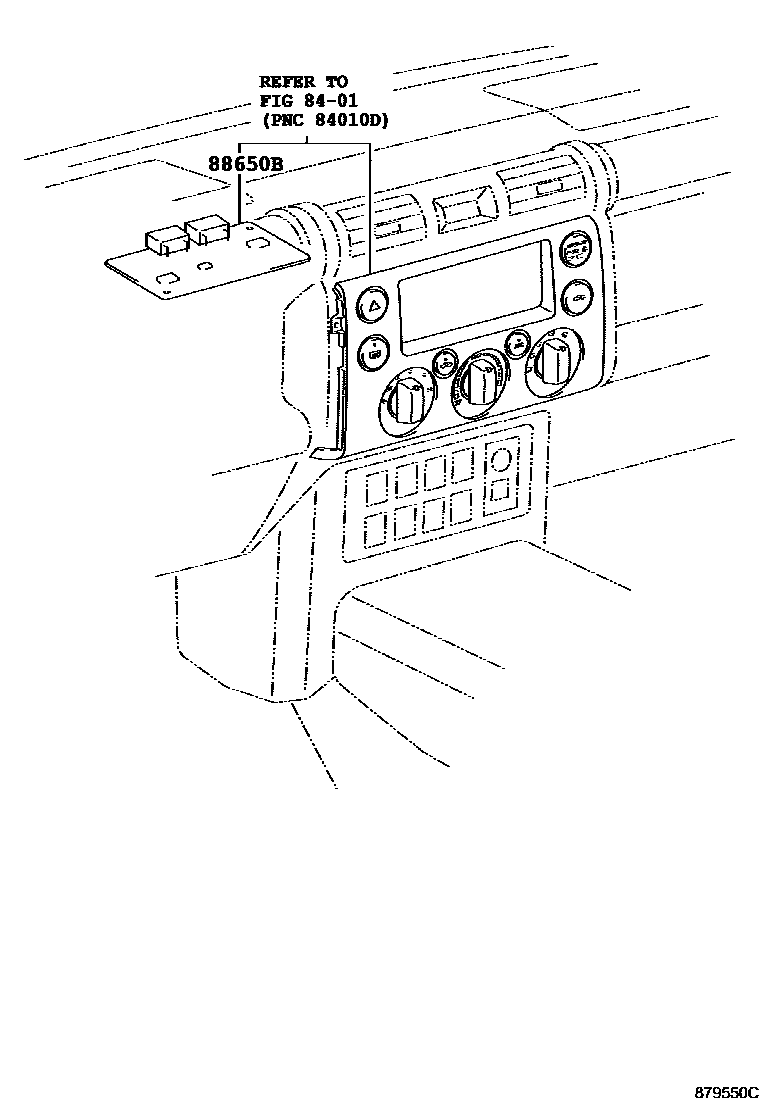

88650BAMPLIFIER ASSY, AIRCONDITIONER

main88650-35290iGSJ15200707-201011

main88650-35340iGSJ15201208-201407

P/N LABEL=8865035340

main88650-35341iGSJ15..(GEN,SA)..RHD201407-201701

P/N LABEL=8865035341

main88650-35350iGSJ15..RHD201701-202212

P/N LABEL=8865035350

2 parts on this diagram · 4 diagrams in section
