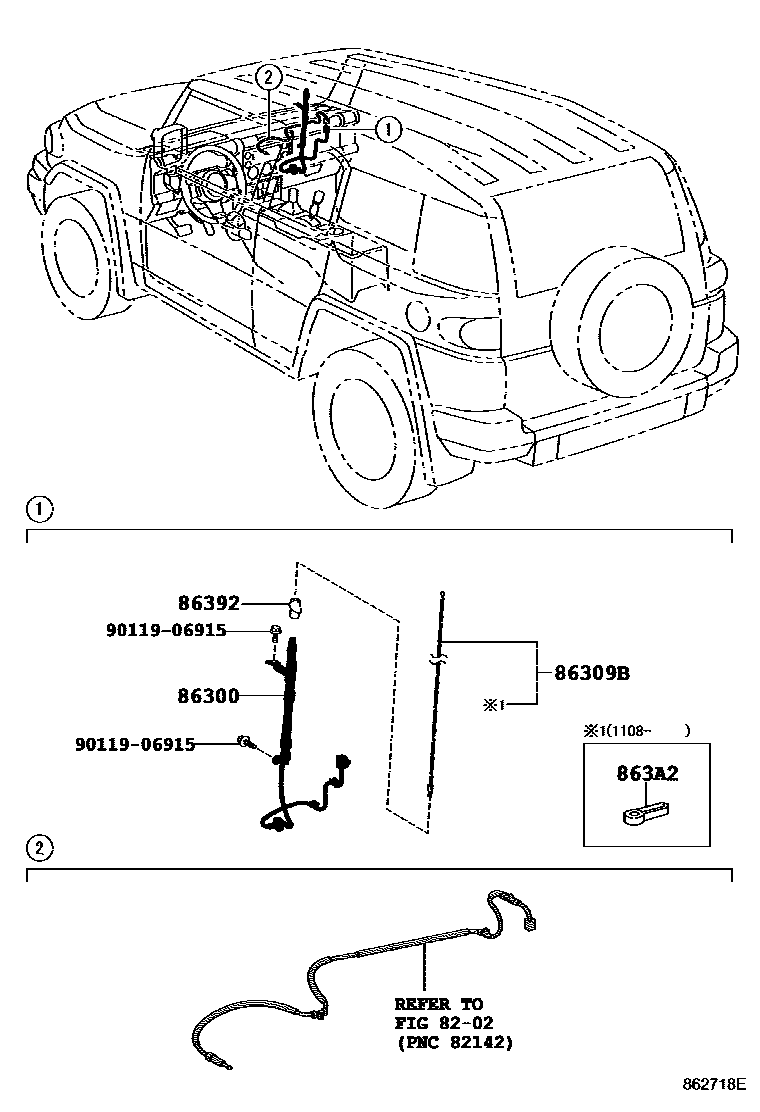

ANTENNA

8202WIRING & CLAMP

→ Go to FIG 82-02

86300ANTENNA ASSY, W/HOLDER

main86300-35180iGSJ15200707-201011

main86300-35190iGSJ15201011

86309BPOLE SUB-ASSY, PULL TOP ANTENNA

main86309-0C020iGSJ15201108

main86309-AA041iGSJ15200707-201002

main86309-AA042iGSJ15201003-201011

86392ORNAMENT, ANTENNA

main86392-35031iGSJ15200707-201011

main86392-35032iGSJ15201406

863A2TOOL, POLE ANTENNA

main863A2-0C010iGSJ15201108

9011906915

main90119-06915

6 parts on this diagram · 1 diagram in section
