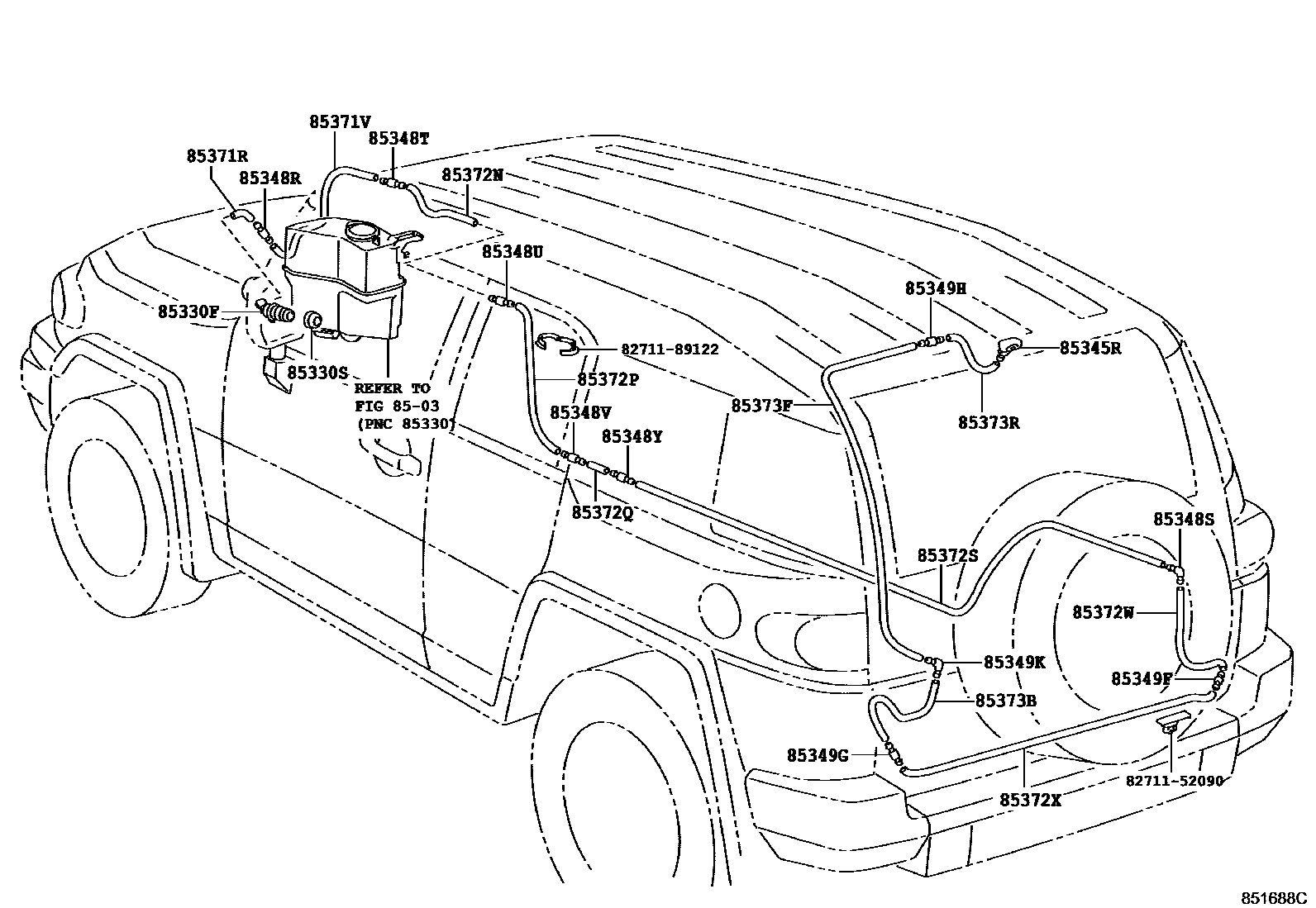

REAR WASHER
8503WINDSHIELD WASHER
85330FMOTOR & PUMP ASSY, RR WASHER
REAR WINDOW WIPER-WITH
85330SBUSH, REAR WASHER JAR
REAR WINDOW WIPER-WITH
85345RNOZZLE, REAR WASHER
REAR WINDOW WIPER-WITH; REAR WINDOW WIPER-WITH&AUDIO-JBL 10SPEAKER WITH(SUB WOOFER); REAR WINDOW WIPER-WITH&SRS AIR BAG-WITH(CURTAIN SHIELD); REAR WINDOW WIPER-WITH&SRS AIR BAG-WITH(CURTAIN SHIELD)&AUDIO-JBL 10SPEAKER WITH(SUB WOOFER)
85348RJOINT, REAR WASHER HOSE, NO.1
REAR WINDOW WIPER-WITH
85348SJOINT, REAR WASHER ELBOW, NO.1
REAR WINDOW WIPER-WITH
85348TJOINT, REAR WASHER HOSE, NO.2
REAR WINDOW WIPER-WITH
85348UJOINT, REAR WASHER HOSE, NO.3
REAR WINDOW WIPER-WITH
85348VJOINT, REAR WASHER HOSE, NO.4
REAR WINDOW WIPER-WITH
85348YJOINT, REAR WASHER HOSE, NO.5
REAR WINDOW WIPER-WITH
85349FJOINT, REAR WASHER HOSE, NO.1
REAR WINDOW WIPER-WITH
85349GJOINT, REAR WASHER HOSE, NO.2
REAR WINDOW WIPER-WITH
85349HJOINT, REAR WASHER HOSE, NO.3
REAR WINDOW WIPER-WITH
85349KJOINT, REAR WASHER ELBOW, NO.2
REAR WINDOW WIPER-WITH
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=15; L=15,REAR WINDOW WIPER-WITH
L=1450(*H,L=220); L=1450(*H,L=220),REAR WINDOW WIPER-WITH
85371VHOSE, REAR WASHER (FROM JOINT TO JOINT)
REAR WINDOW WIPER-WITH
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=250); L=1450(*H,L=250),CONVENIENCE PACKAGE; L=1450(*H,L=250),REAR WINDOW WIPER-WITH; L=1450(*H,L=250),REAR WINDOW WIPER-WITH&AUDIO-JBL 10SPEAKER WITH(SUB WOOFER); L=1450(*H,L=250),REAR WINDOW WIPER-WITH&SRS AIR BAG-WITH(CURTAIN SHIELD); L=1450(*H,L=250),REAR WINDOW WIPER-WITH&SRS AIR BAG-WITH(CURTAIN SHIELD)&AUDIO-JBL10SPEAKER WITH(SUB WOOFER); L=1450(*H,L=250),SRS AIR BAG-WITH(CURTAIN SHIELD)
L=250; L=250,REAR WINDOW WIPER-WITH; L=250,REAR WINDOW WIPER-WITH&AUDIO-JBL 10SPEAKER WITH(SUB WOOFER); L=250,REAR WINDOW WIPER-WITH&SRS AIR BAG-WITH(CURTAIN SHIELD); L=250,REAR WINDOW WIPER-WITH&SRS AIR BAG-WITH(CURTAIN SHIELD)&AUDIO-JBL 10SPEAKERWITH(SUB WOOFER); L=250,SRS AIR BAG-WITH(CURTAIN SHIELD)
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=710); L=1450(*H,L=710),REAR WINDOW WIPER-WITH
L=710
L=1800(*H,L=520); L=1800(*H,L=520),REAR WINDOW WIPER-WITH
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=1450(*H,L=50); L=1450(*H,L=50),REAR WINDOW WIPER-WITH
L=210; L=210,REAR WINDOW WIPER-WITH; L=210,REAR WINDOW WIPER-WITH&AUDIO-JBL 10SPEAKER WITH(SUB WOOFER); L=210,REAR WINDOW WIPER-WITH&SRS AIR BAG-WITH(CURTAIN SHIELD); L=210,REAR WINDOW WIPER-WITH&SRS AIR BAG-WITH(CURTAIN SHIELD)&AUDIO-JBL 10SPEAKERWITH(SUB WOOFER); L=210,SRS AIR BAG-WITH(CURTAIN SHIELD)
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=3300(*H,L=2680); L=3300(*H,L=2680),REAR WINDOW WIPER-WITH
L=1800(*H,L=520); L=1800(*H,L=520),REAR WINDOW WIPER-WITH
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
L=1450(*H,L=460); L=1450(*H,L=460),REAR WINDOW WIPER-WITH
L=50; L=50,REAR WINDOW WIPER-WITH; L=50,REAR WINDOW WIPER-WITH&AUDIO-JBL 10SPEAKER WITH(SUB WOOFER); L=50,REAR WINDOW WIPER-WITH&SRS AIR BAG-WITH(CURTAIN SHIELD); L=50,REAR WINDOW WIPER-WITH&SRS AIR BAG-WITH(CURTAIN SHIELD)&AUDIO-JBL 10SPEAKER WITH(SUB WOOFER); L=50,SRS AIR BAG-WITH(CURTAIN SHIELD)
85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
L=3300(*H,L=2680); L=3300(*H,L=2680),REAR WINDOW WIPER-WITH
L=1800(*H,L=1440); L=1800(*H,L=1440),REAR WINDOW WIPER-WITH
85373BHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7
L=1450(*H,L=460); L=1450(*H,L=460),REAR WINDOW WIPER-WITH
L=460; L=460,REAR WINDOW WIPER-WITH; L=460,REAR WINDOW WIPER-WITH&AUDIO-JBL 10SPEAKER WITH(SUB WOOFER); L=460,REAR WINDOW WIPER-WITH&SRS AIR BAG-WITH(CURTAIN SHIELD); L=460,REAR WINDOW WIPER-WITH&SRS AIR BAG-WITH(CURTAIN SHIELD)&AUDIO-JBL 10SPEAKERWITH(SUB WOOFER); L=460,SRS AIR BAG-WITH(CURTAIN SHIELD)
85373FHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.8
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=310); L=1450(*H,L=310),REAR WINDOW WIPER-WITH
8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-52090
8271189122WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-89122
27 parts on this diagram · 2 diagrams in section
