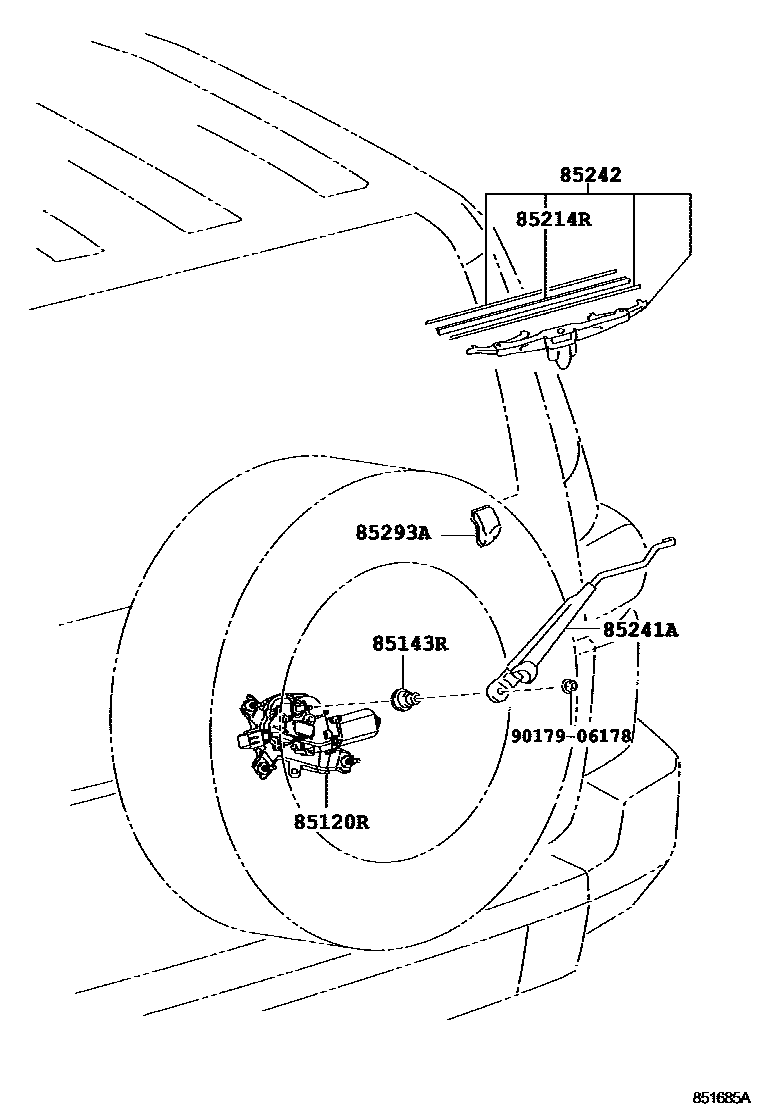

REAR WIPER

85120RMOTOR AND BRACKET ASSY, REAR WIPER

main85130-35090iGSJ15..CHI,GEN; GSJ15..GCC200707-201011

REAR WINDOW WIPER-WITH

main85130-35091iGSJ15..MTM..GEN201608-201712

85143RGROMMET, REAR WIPER MOTOR

main85143-52020iGSJ15..CHI,GEN; GSJ15..GCC200707-201011

REAR WINDOW WIPER-WITH

85214RRUBBER, REAR WIPER

main85214-35070iGSJ15..CHI,GEN; GSJ15..GCC200707-201011

REAR WINDOW WIPER-WITH

85241AARM, REAR WIPER

main85241-35050iGSJ15..GCC; GSJ15..GEN200707-200710

REAR WINDOW WIPER-WITH

main85241-35051iGSJ15..CHI,GEN; GSJ15..GCC200711-201011

REAR WINDOW WIPER-WITH

85242BLADE, RR WIPER

main85242-35040iGSJ15..GCC; GSJ15..GEN200707-200710

REAR WINDOW WIPER-WITH

85293ASTOPPER,REAR WIPER

main85293-35030iGSJ15..CHI,GEN; GSJ15..GCC200707-201011

REAR WINDOW WIPER-WITH

main85293-35031iGSJ15..MTM..GEN201011-201712

9017906178

main90179-06178

7 parts on this diagram · 1 diagram in section
