AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-35280iGSJ15200707-201108

main89170-35290iGSJ15..CHI201011-201108

SRS AIR BAG-WITH(CURTAIN SHIELD)

main89170-35320iGSJ15..ARL,SA201011-201108

P/N LABEL=8917035320

main89170-35320iGSJ15..ARL,SA201011-201108

SRS AIR BAG-WITH(CURTAIN SHIELD),P/N LABEL=8917035320

main89170-35340iGSJ15..GEN..LHD;GSJ15..ATM..GCC201204-201208

SRS AIR BAG-WITH(CURTAIN SHIELD)

main89170-35350iGSJ15..ARL,SA201204-201208

P/N LABEL=8917035350

main89170-35350iGSJ15..GEN..RHD201204-201208

SRS AIR BAG-WITH(CURTAIN SHIELD),P/N LABEL=8917035350

main89170-35360iGSJ15..GCC,GEN201204-201208

main89170-35370iGSJ15..GEN..LHD;GSJ15..ATM..GCC201108-201203

SRS AIR BAG-WITH(CURTAIN SHIELD)

main89170-35380iGSJ15..GEN..RHD201108-201203

SRS AIR BAG-WITH(CURTAIN SHIELD),P/N LABEL=8917035380

main89170-35380iGSJ15..GEN..RHD201108-201203

P/N LABEL=8917035380

main89170-35390iGSJ15..GCC,GEN201108-201203

main89170-35410iGSJ15..CHI201208-201512

main89170-35420iGSJ15..ARL,SA201208

P/N LABEL=8917035420

main89170-35430iGSJ15..(GCC,GEN)..LHD201208

main89170-35440iGSJ15..GEN..RHD201208-201308

89173ASENSOR, AIRBAG, FRONT RH

main89173-39375iGSJ15200707-201208

main89173-39455iGSJ15..MTM201208-201712

89174ASENSOR, AIRBAG, FRONT LH

main89173-39375iGSJ15200707-201208

main89173-39455iGSJ15..MTM201208-201712

89178ASENSOR, SEAT POSITION AIRBAG

main89178-06020iGSJ15..RHD201011

main89178-0W010iGSJ15200707-201712

89833SENSOR, AIRBAG, REAR RH

main89831-35020iGSJ15..ARL,CHI,SA201011-201208

SRS AIR BAG-WITH(CURTAIN SHIELD)

main89831-35040iGSJ15..ARL,CHI,SA201208

SRS AIR BAG-WITH(CURTAIN SHIELD)

main89831-35040iGSJ15..GEN..RHD201308

89834SENSOR, AIRBAG, REAR LH

main89831-35020iGSJ15..ARL,CHI,SA201011-201208

SRS AIR BAG-WITH(CURTAIN SHIELD)

main89831-35040iGSJ15..ARL,CHI,SA201208

SRS AIR BAG-WITH(CURTAIN SHIELD)

main89831-35040iGSJ15..GEN..RHD201308

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-35010iGSJ15..CHI201011-201107

SRS AIR BAG-WITH(CURTAIN SHIELD)

main89831-35011iGSJ15..ARL,CHI,SA201108-201208

SRS AIR BAG-WITH(CURTAIN SHIELD)

main89831-35030iGSJ15..ARL,SA201011-201108

SRS AIR BAG-WITH(CURTAIN SHIELD)

main89831-75020iGSJ15..ATM..(GCC,GEN)..LHD201208

SRS AIR BAG-WITH(CURTAIN SHIELD)

main89831-75020iGSJ15..GEN..RHD201308

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-35010iGSJ15..CHI201011-201107

SRS AIR BAG-WITH(CURTAIN SHIELD)

main89831-35011iGSJ15..ARL,CHI,SA201108-201208

SRS AIR BAG-WITH(CURTAIN SHIELD)

main89831-35030iGSJ15..GEN..RHD201011-201108

SRS AIR BAG-WITH(CURTAIN SHIELD)

main89831-75020iGSJ15..ARL,CHI,SA201208

SRS AIR BAG-WITH(CURTAIN SHIELD)

main89831-75020iGSJ15..GEN..RHD201308

9011906871

main90119-06871

9011908C48

main90119-08C48

9155380618

main91553-80618

91553A0625

main91553-A0625

9415180600

main94151-80600

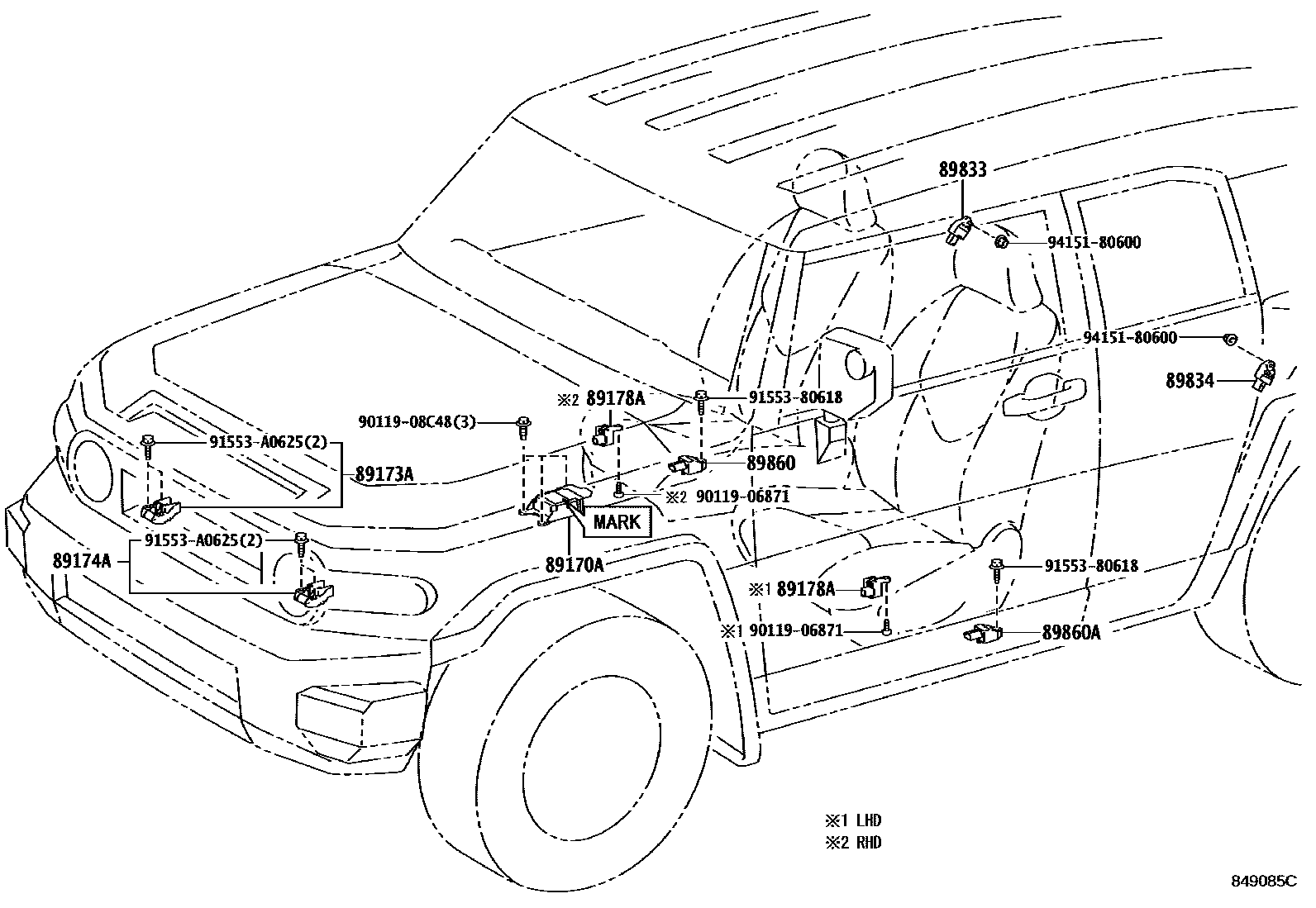

13 parts on this diagram · 1 diagram in section
