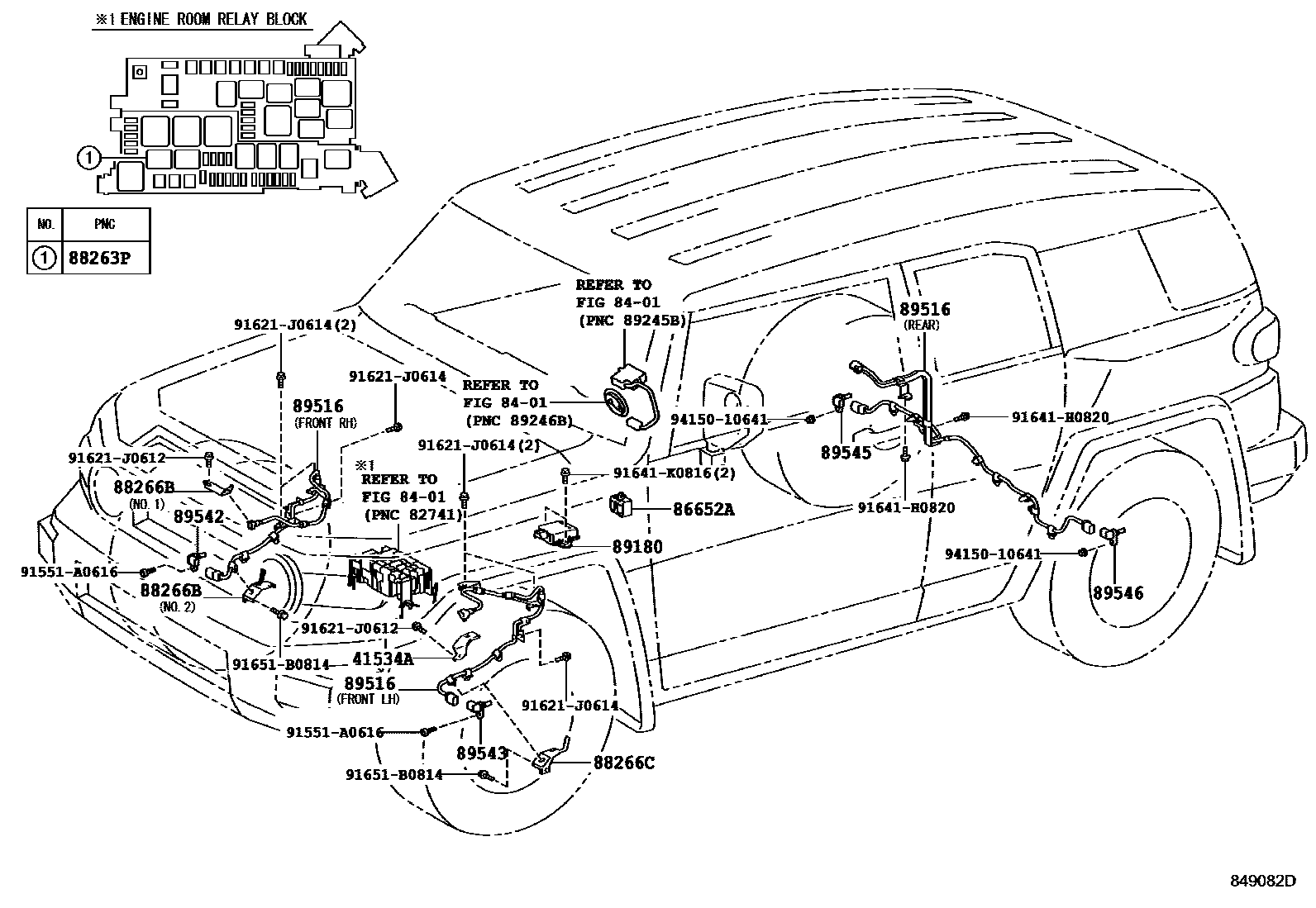

ABS & VSC

0001 1 0002 1

41534ABRACKET, FRONT DIFFERENTIAL BREATHER

main41534-35050iGSJ15200908-201011

main41534-60020iGSJ15200707-200908

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86652ABUZZER ASSY, SKID CONTROL

main86652-48010iGSJ15200707-201011

88263PRELAY, STOP LAMP CONTROL

main90987-04004iGSJ15200707-201011

88266BCLAMP, SKID CONTROL SENSOR, NO.1

main88266-60460iGSJ15200707-200908

NO.1

main88266-60540iGSJ15200707-200908

NO.2

main88266-60770iGSJ15200908-201011

NO.2

main88266-60790iGSJ15200908-201011

NO.1

main88266-60A00iGSJ15201306

NO.2

88266CCLAMP, SKID CONTROL SENSOR, NO.2

main88266-60550iGSJ15200707-200908

main88266-60780iGSJ15201011-201306

main88266-60A10iGSJ15201306

89180SENSOR ASSY, YAWRATE

main89180-35040iGSJ15..ATM200908-201011

main89180-35050iGSJ15..MTM200908-201011

main89180-60080iGSJ15..ATM200707-200908

main89180-60090iGSJ15..MTM200707-200908

main89180-60110iGSJ15..ATM201011

main89180-60120iGSJ15..MTM201011-201712

89516WIRE, SKID CONTROL SENSOR

main89516-60070iGSJ15200707-200908

FRONT RH

main89516-60080iGSJ15200707-200908

FRONT LH

main89516-60090iGSJ15200707-200908

REAR

main89516-60260iGSJ15200908-201011

FRONT RH

main89516-60270iGSJ15..CHI201011-201512

FRONT LH

main89516-60280iGSJ15..GCC,GEN,SA201108

FRONT RH

main89516-60290iGSJ15..ARL201011

FRONT LH

main89516-60300iGSJ15201011

REAR

89542SENSOR, SPEED, FRONT RH

main89542-60050iGSJ15201011

89543SENSOR, SPEED, FRONT LH

main89543-60050iGSJ15200707-201011

89545SENSOR, SPEED, REAR RH

main89542-60050iGSJ15201011

89546SENSOR, SPEED, REAR LH

main89543-60050iGSJ15200707-201011

91551A0616

main91551-A0616

91621J0612

main91621-J0612

91621J0614

main91621-J0614

91641H0820

main91641-H0820

91641K0816

main91641-K0816

91651B0814

main91651-B0814

9415010641

main94150-10641

19 parts on this diagram · 2 diagrams in section
