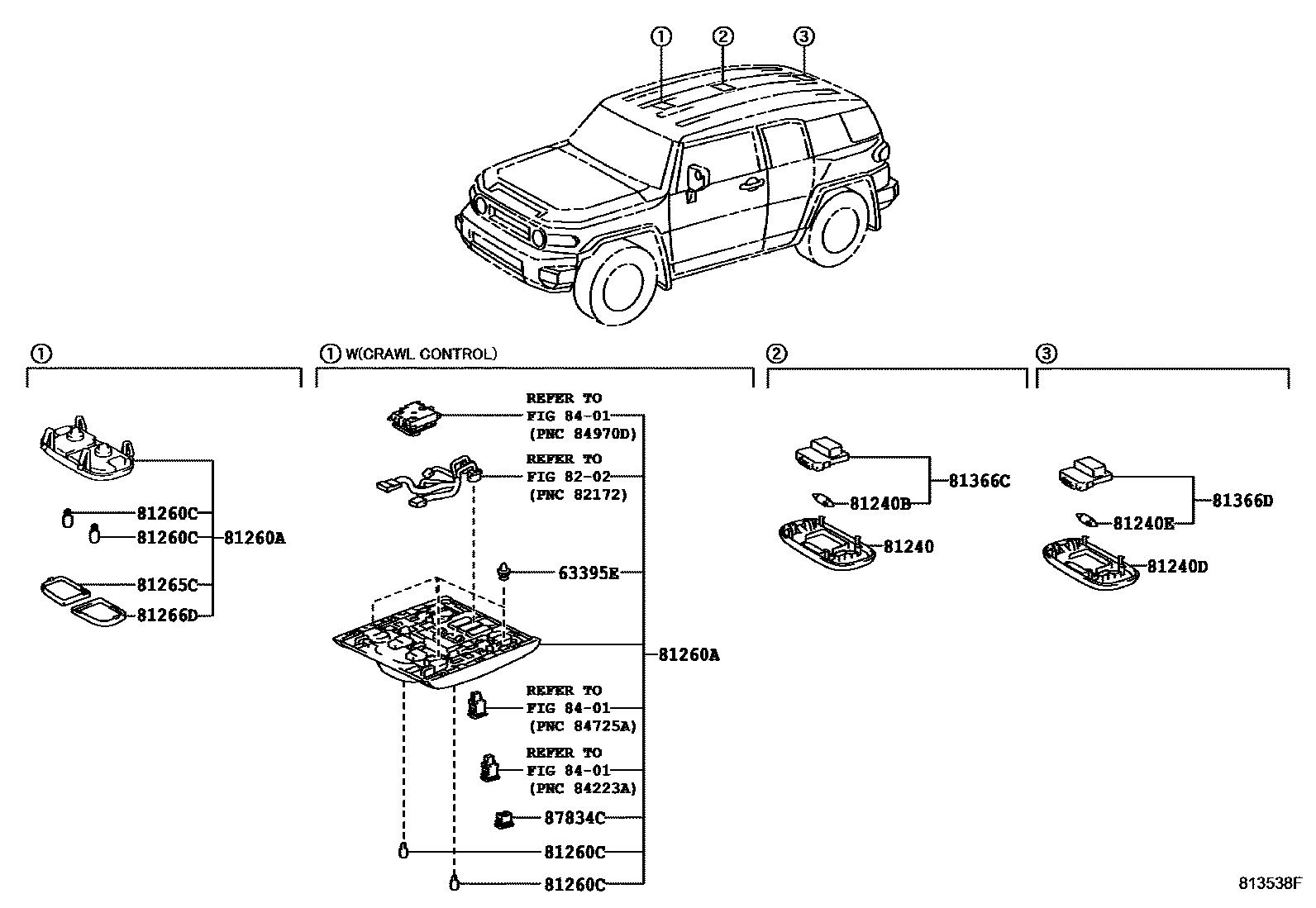

INTERIOR LAMP
63395ECLIP(FOR MAP LAMP)
VSC-WITH(A-TRC & CRAWL CONTROL)
DIFFERENTIAL LOCK-WITH&VSC-WITH(A-TRC & CRAWL CONTROL)
81240LAMP ASSY, ROOM, NO.1
LT.GRAY,TRIM1#
81240BBULB, ROOM LAMP, NO.1
12V 8W
81240DLAMP ASSY, ROOM, NO.2
LT.GRAY,TRIM1#
81240EBULB, ROOM LAMP, NO.2
12V 8W
81260ALAMP ASSY, MAP
DIFFERENTIAL LOCK-WITH&VSC-WITH(A-TRC & CRAWL CONTROL),DK.GRAY,TRIM1#
sub81260-35501
VSC-WITH(A-TRC & CRAWL CONTROL),DK.GRAY,TRIM1#
sub81260-35501
OFF ROAD PACKAGE&DIFFERENTIAL LOCK-WITH&VSC-WITH(A-TRC & CRAWL CONTROL),DK.GRAY,TRIM1#
sub81260-35501
DIFFERENTIAL LOCK-WITH&VSC-WITH(A-TRC & CRAWL CONTROL),DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
VSC-WITH(A-TRC & CRAWL CONTROL),DK.GRAY,TRIM1#
81260CBULB(FOR MAP LAMP)
12V 5W,DIFFERENTIAL LOCK-WITH&VSC-WITH(A-TRC & CRAWL CONTROL)
12V 5W
12V 5W,VSC-WITH(A-TRC & CRAWL CONTROL)
12V 8W
81265CLENS, MAP LAMP, NO.1
81266DLENS, MAP LAMP, NO.2
81366CBASE, ROOM LAMP SWITCH
81366DBASE, LUGGAGE LAMP SWITCH
8202
8401
87834CCOVER, MAP LAMP
BLACK
VSC-WITH(A-TRC & CRAWL CONTROL),BLACK
14 parts on this diagram · 1 diagram in section
