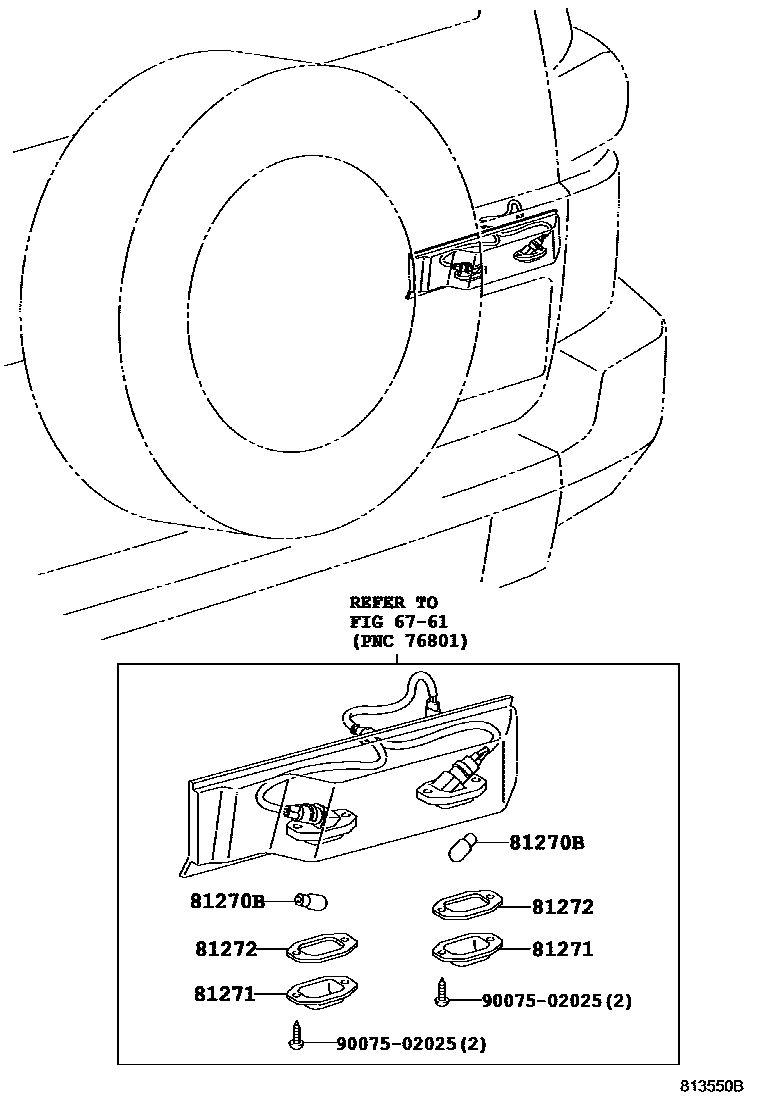

REAR LICENSE PLATE LAMP

0001 1FOR BACK DOOR 0002 1FOR REAR BUMPER

6761BACK DOOR PANEL & GLASS

→ Go to FIG 67-61

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050×2iGSJ15200707-201011

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-24010×2iGSJ15200707-201011

81272GASKET, LICENSE PLATE LAMP LENS

main81272-24010×2iGSJ15200707-201011

9007502025

main90075-02025

5 parts on this diagram · 2 diagrams in section
