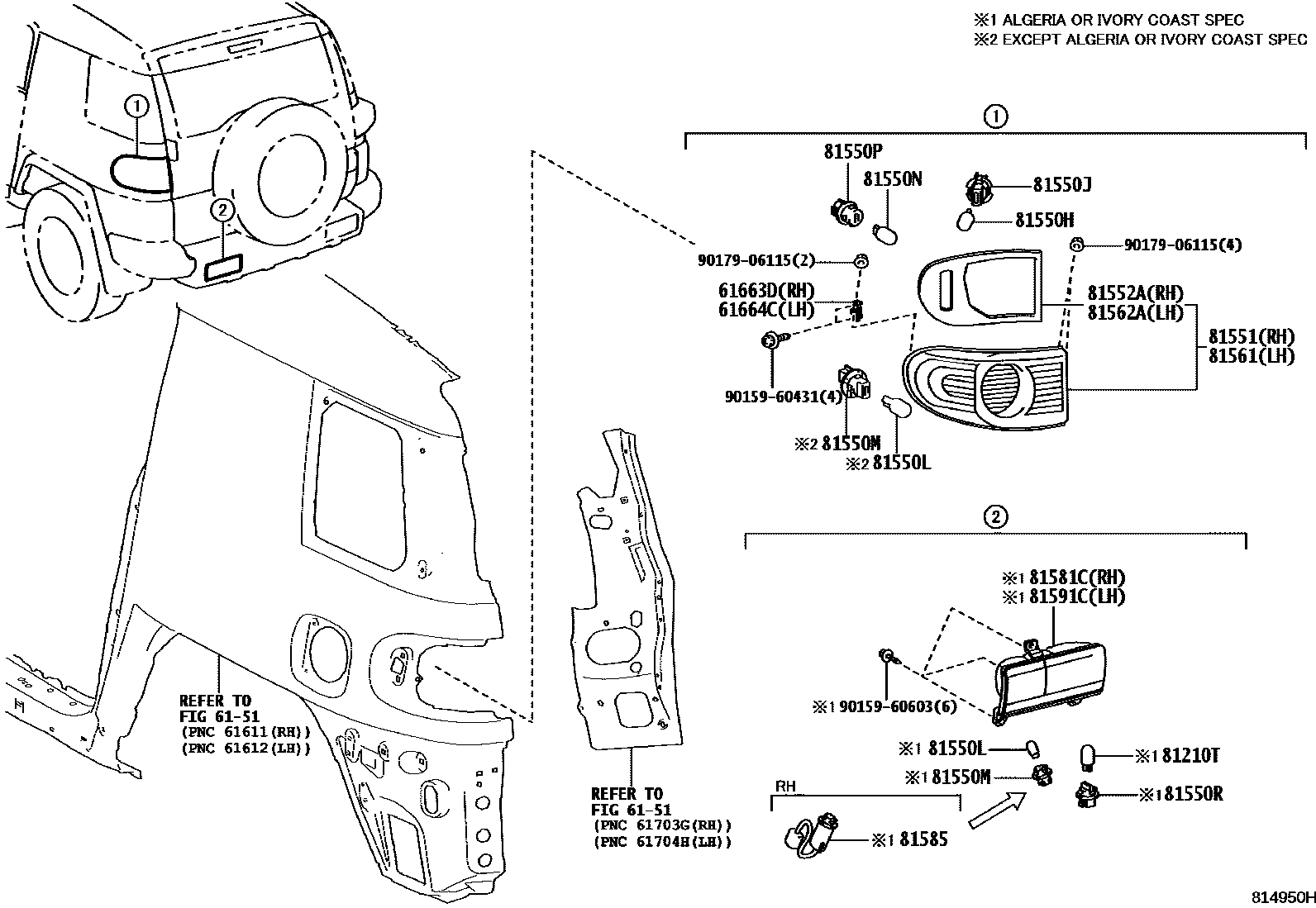

REAR COMBINATION LAMP

0001 1 0002 1

6151SIDE MEMBER

→ Go to FIG 61-51

61663DSUPPORT, REAR COMBINATION LAMP, RH

main61663-35010iGSJ15200707-201011

61664CSUPPORT, REAR COMBINATION LAMP, LH

main61664-35010iGSJ15200707-201011

81210TBULB, REAR FOG LAMP

main90981-13043×2iGSJ15..CHI200712-201011

81550HBULB, TAIL & STOP LAMP

main90981-13044×2iGSJ15201011

81550JSOCKET, TAIL & STOP LAMP

main90075-60002×2iGSJ15201011

81550LBULB, REAR TURN SIGNAL LAMP

main90981-11059×2iGSJ15..CHI200712-201011

main90981-15021×2iGSJ15..GCC,GEN200707-201011

81550MSOCKET, REAR TURN SIGNAL LAMP

main90075-60001iGSJ15..CHI200712-201011

main90075-60026×2iGSJ15..GCC,GEN200707-201011

81550NBULB, BACK UP LAMP

main90981-11059×2iGSJ15201011

81550PSOCKET, BACK UP LAMP

main90075-60021×2iGSJ15200707-201011

81550RSOCKET, REAR FOG LAMP

main90075-60082×2iGSJ15..RHD;GSJ15..CHI201011

81551LENS, REAR COMBINATION LAMP, RH

main81551-35340iGSJ15..(GCC,GEN)..LHD201011-201108

main81551-35341iGSJ15..(GCC,GEN)..LHD201108

main81551-35350iGSJ15..CHI200712-200902

main81551-35351iGSJ15..CHI200902-201011

81552AGASKET, REAR COMBINATION LAMP, RH

main81552-35341iGSJ15..GCC,GEN200707-201011

81561LENS, REAR COMBINATION LAMP, LH

main81561-35300iGSJ15..(GCC,GEN)..LHD201011-201108

main81561-35301iGSJ15..(GCC,GEN)..LHD201108

main81561-35350iGSJ15..CHI200712-200902

main81561-35351iGSJ15..CHI200902-201011

81562AGASKET, REAR COMBINATION LAMP, LH

main81562-35301iGSJ15..GCC,GEN200707-201011

81581CLENS AND BODY, REAR LAMP, RH

main81581-35020iGSJ15..CHI200712-200902

main81581-35021iGSJ15..RHD;GSJ15..CHI201011

81585SOCKET & WIRE, REAR LAMP

main81585-35020iGSJ15..CHI200712-201011

81591CLENS, REAR LAMP, LH

main81591-35020iGSJ15..CHI200712-200902

main81591-35021iGSJ15..CHI200902-201011

9015960431

main90159-60431

9015960603

main90159-60603

9017906115

main90179-06115

21 parts on this diagram · 2 diagrams in section
