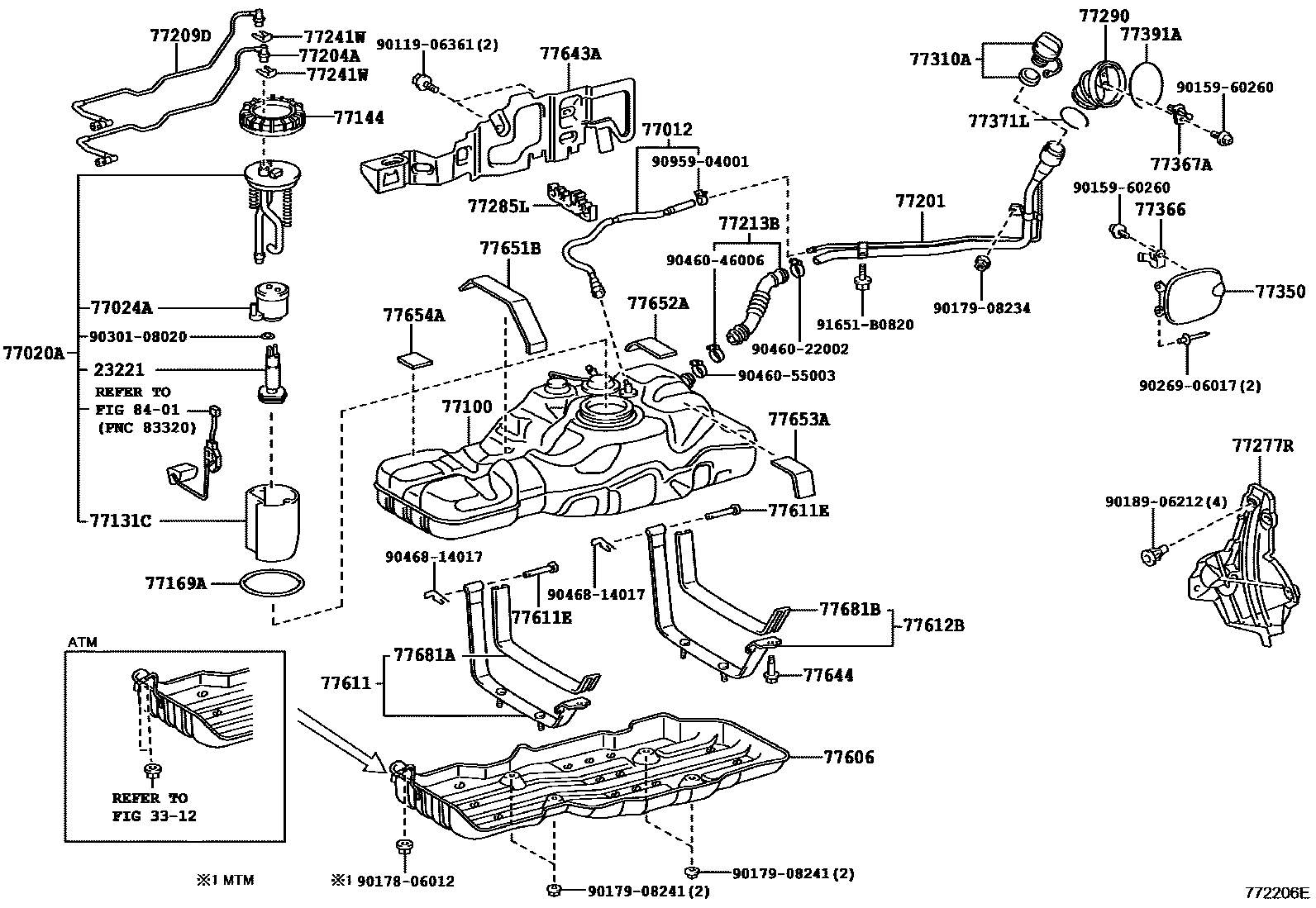

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK,W(SUB TANK) 0004 1FUEL TANK,W(SUB TANK) 0005 1SUB TANK 0006 1SUB TANK 0007 1FUEL TANK,CHILE SPEC 0008 1FUEL TUBE 0009 1FUEL TUBE 0010 1FUEL TUBE,W(SUB TANK) 0011 1FUEL TUBE,W(SUB TANK) 0012 1FUEL TUBE,W(SUB TANK) 0013 1FUEL TUBE,W(SUB TANK) 0014 1FUEL TUBE,W(SUB TANK) 0015 1FUEL TUBE,W(SUB TANK) 0016 1FUEL TUBE,CHILE SPEC 0017 1FUEL LID OPENER

23221PUMP, FUEL

main23220-31360i1GRFE..GSJ15..CHI200712-200908

main23220-31470i1GRFE..GSJ15..GCC,GEN200907-200908

main23220-50130i1GRFE..GSJ15..GCC,GEN200707-200907

3312SHIFT LEVER & RETAINER

→ Go to FIG 33-12

77012TUBE SUB-ASSY, FUEL TANK BREATHER

main77012-35050iGSJ15200707-200908

main77012-35120iGSJ15200908-201011

main77012-35070iGSJ15..ATM..GEN..LHD201408-202002

CHILE SPEC

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-35130iGSJ15..GCC,GEN200707-200901

main77020-35131iGSJ15..GCC,GEN200902-200908

main77020-35140iGSJ15..CHI200712-200908

main77020-35180iGSJ15200908-201011

main77020-35181iGSJ15201209

main77020-35171iGSJ15..ATM..GEN..LHD201408-202002

CHILE SPEC

main77020-35200iGSJ15..ARL,GEN,SA201211

FUEL TANK-WITH(SUB TANK)

main77020-35210iGSJ15..GCC201211

FUEL TANK-WITH(SUB TANK)

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-35060iGSJ15..CHI200712-200908

main77024-60260iGSJ15200908-201011

main77024-60430iGSJ15201708

main77024-35070iGSJ15..ATM..GEN..LHD201408-202002

CHILE SPEC

main77024-60270iGSJ15..ARL,GEN,SA201211

FUEL TANK-WITH(SUB TANK)

main77024-60310iGSJ15..GCC201211

FUEL TANK-WITH(SUB TANK)

77100TANK ASSY, FUEL

main77001-35A01iGSJ15200707-200908

main77001-35A40iGSJ15201011-201908

main77001-35A41iGSJ15201909

main77001-35A10iGSJ15..ARL,GEN,SA201211-201908

FUEL TANK-WITH(SUB TANK)

main77001-35A11iGSJ15..GEN,SA201909

FUEL TANK-WITH(SUB TANK)

main77001-35D00iGSJ15..GCC201211-201908

FUEL TANK-WITH(SUB TANK)

main77001-35D01iGSJ15..GCC201909

FUEL TANK-WITH(SUB TANK)

main77001-3D550iGSJ15..ATM..GEN..LHD201408-201607

CHILE SPEC

main77001-3D551iGSJ15..ATM..GEN..LHD201608-202002

CHILE SPEC

77131CSUB-TANK, FUEL, NO.1

main77131-26112iGSJ15200707-200803

main77131-60090iGSJ15200908-201011

main77131-60140iGSJ15..GCC,GEN200907-200908

77144RETAINER, FUEL PUMP GAUGE

main77144-35010iGSJ15200707-201011

77169AGASKET, FUEL SUCTION TUBE SET

main77169-35010iGSJ15200707-201001

main77169-47030iGSJ15201001-201011

main77169-30050iGSJ15..ATM..GEN..LHD201408-202002

CHILE SPEC

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-35810iGSJ15201011-202011

main77201-35830iGSJ15..ARL,GCC,GEN,SA201211-201608

FUEL TANK-WITH(SUB TANK)

main77201-35840iGSJ15..ATM..GEN..LHD201408-202002

CHILE SPEC

main77201-35860iGSJ15201608-202011

FUEL TANK-WITH(SUB TANK)

main77201-35870supersedes 77201-35880iGSJ15202011

FUEL TANK-WITH(SUB TANK)

77204ATUBE, FUEL TANK RETURN

main77204-35080iGSJ15201011

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-35450iGSJ15200707-201011

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-35380iGSJ15201011

main77213-35370iGSJ15..ATM..GEN..LHD201408-202002

CHILE SPEC

77241WCLIP, TUBE JOINT

main77241-33011×2iGSJ15200912-201011

main77241-60320×2iGSJ15200707-200911

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-35030iGSJ15200707-200907

main77277-35031iGSJ15200908-201011

77285LCLAMP, FUEL TUBE, NO.1

main77285-35620iGSJ15200707-201011

main77285-35770iGSJ15201305

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-35140iGSJ15200707-201011

main77291-35160iGSJ15..RHD201011

77310ACAP ASSY, FUEL TANK

main77300-12020iGSJ15202011

main77300-52030iGSJ15200707-201011

main77300-52040iGSJ15..ATM..GEN..LHD201408-202002

CHILE SPEC

77350LID ASSY, FUEL FILLER OPENING

main77350-35060iGSJ15200707-201011

main77350-35080iGSJ15..RHD201011

main77350-WY010iGSJ15..LHD202209-202212

FINAL EDITION GLOBAL(LHD)

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-30070iGSJ15..RHD201011

main77366-35030iGSJ15..LHD201011

77367ACLAMP, FUEL FILLER LID PIN, NO.1

main77367-35020iGSJ15200707-201011

77371LRING, FUEL TANK FILLER PIPE SHIELD

main77371-35010iGSJ15200707-201011

77391ARING, FUEL INLET BOX

main77391-12010iGSJ15200707-201011

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-35070iGSJ15200707-201011

77611BAND, FUEL TANK

main77601-35110iGSJ15200707-201011

77611EPIN, FUEL TANK BAND

main77653-35040×2iGSJ15200707-201011

77612BBAND, FUEL TANK, NO.2

main77602-35050iGSJ15200707-201011

77643APROTECTOR, FUEL TANK, NO.3

main77643-35050iGSJ15200707-201011

77644BOLT, FUEL TANK

main77644-35030×2iGSJ15200707-201011

main77644-60020×5iGSJ15..ARL,GCC,GEN,SA201211

FUEL TANK-WITH(SUB TANK)

77651BCUSHION, FUEL TANK

main77651-35070iGSJ15200707-201011

77652ACUSHION, FUEL TANK, NO.2

main77652-35060iGSJ15200707-201011

77653ACUSHION, FUEL TANK, NO.3

main77653-35050iGSJ15200707-201011

77654ACUSHION, FUEL TANK, NO.4

main77654-35010iGSJ15201011

77681ASEAT, FUEL TANK BAND

main77681-35060iGSJ15201011

77681BSEAT, FUEL TANK BAND

main77681-35041iGSJ15200707-201011

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906361

main90119-06361

9015960260

main90159-60260

9017806012

main90178-06012

9017908234

main90179-08234

9017908241

main90179-08241

9018906212

main90189-06212

9026906017

main90269-06017

9030108020

main90301-08020

9046022002

main90460-22002

9046046006

main90460-46006

9046055003

main90460-55003

9046814017

main90468-14017

9095904001

main90959-04001

91651B0820

main91651-B0820

50 parts on this diagram · 17 diagrams in section
