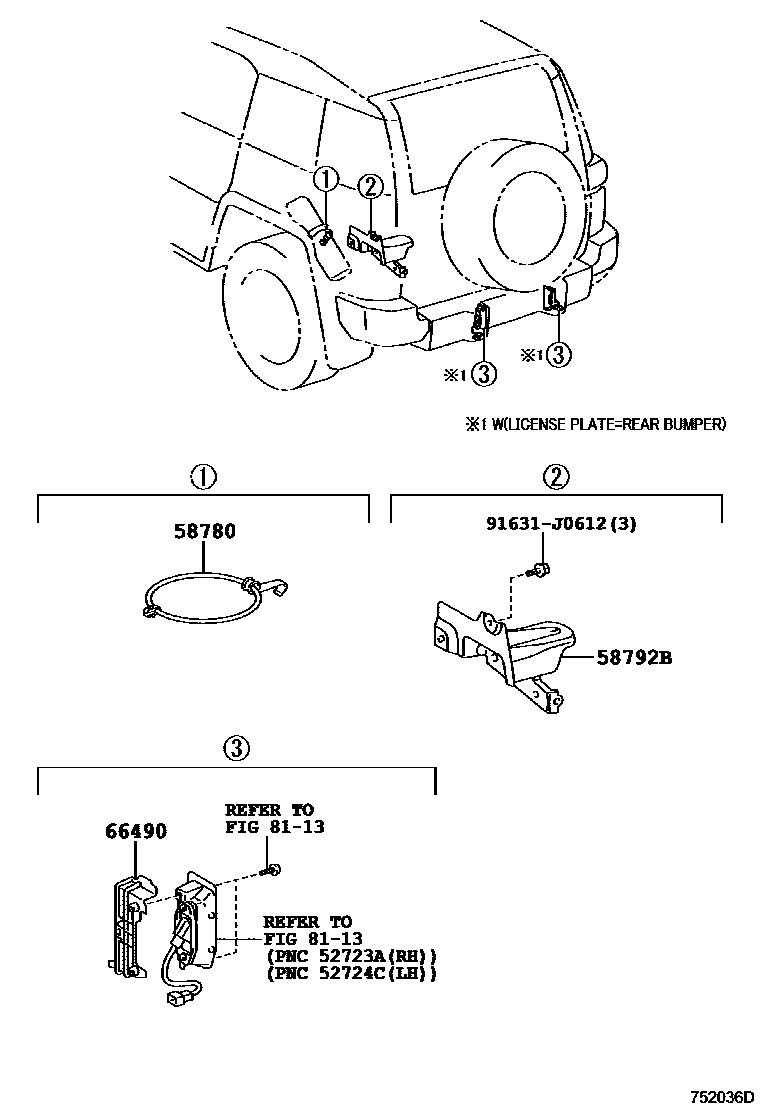

TOOL BOX & LICENSE PLATE BRACKET

58780BAND ASSY, TOOL BOX

main58780-95J01iGSJ15..MTM201011-201712

58792BSUPPORT, JACK CARRIER

main58708-35030iGSJ15..MTM201011-201712

66490HANGER ASSY, LICENSE PLATE BRACKET

main66491-35010iGSJ15..RHD;GSJ15..CHI201011

RH

main66492-35010iGSJ15..RHD;GSJ15..CHI201011

LH

8113REAR LICENSE PLATE LAMP

→ Go to FIG 81-13

91631J0612

main91631-J0612

5 parts on this diagram · 1 diagram in section
