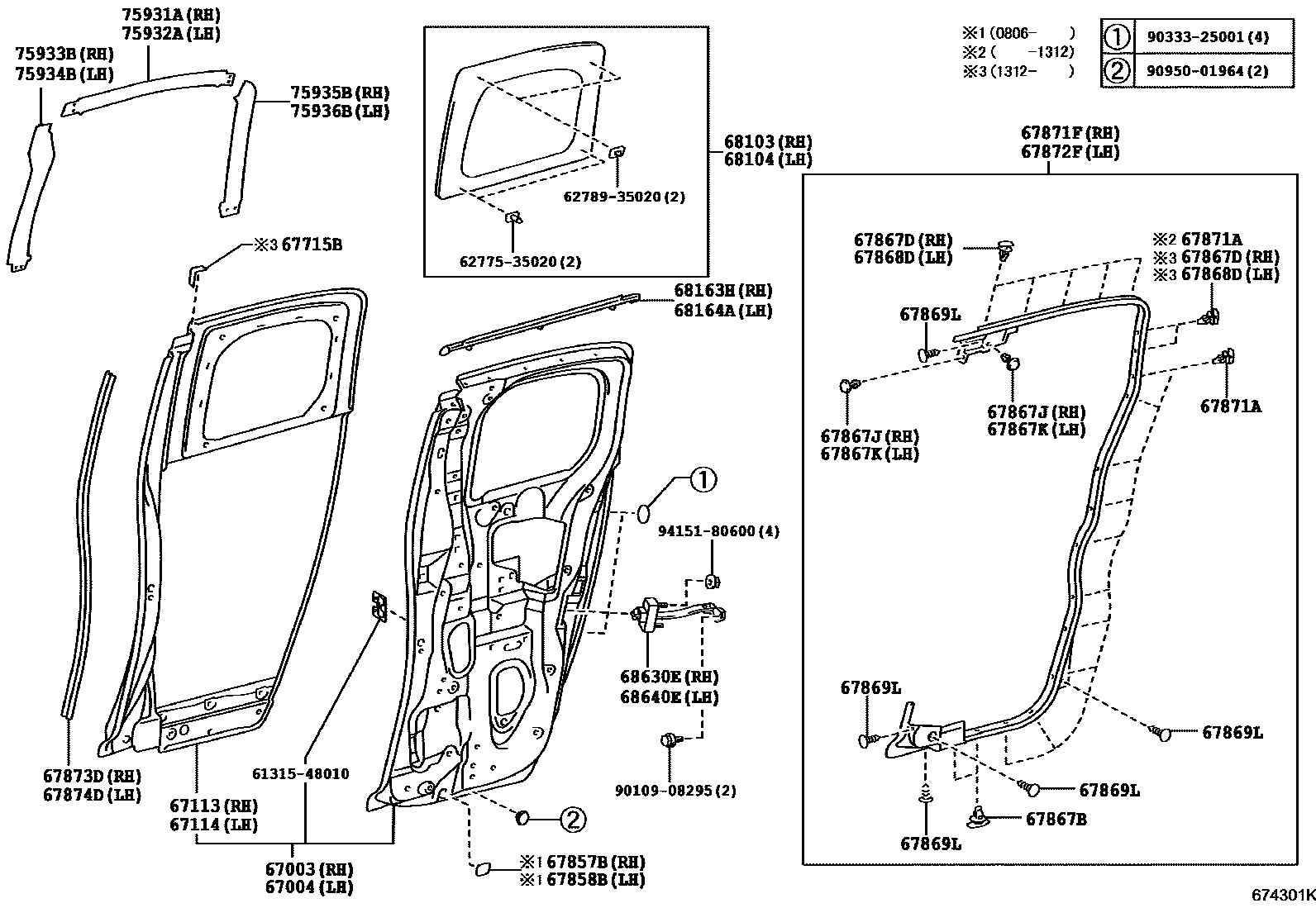

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-35210iGSJ15200707-200912

main67003-35211iGSJ15201011-201301

main67003-35212iGSJ15201302

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-35210iGSJ15200707-200912

main67004-35211iGSJ15201001-201011

main67004-35212iGSJ15201302

67113PANEL, REAR DOOR, OUTER RH

main67113-35070iGSJ15200707-200807

main67113-35071iGSJ15..ATM201011

67114PANEL, REAR DOOR, OUTER LH

main67114-35070iGSJ15200707-200807

main67114-35071iGSJ15200808-201011

67715BPAD, REAR DOOR TRIM

main67715-35020iGSJ15..ATM201312

RH

main67716-35010iGSJ15..MTM201312-201712

LH

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-35040iGSJ15201011

67858BPROTECTOR, REAR DOOR PANEL, LH

main67857-35040iGSJ15200806-201011

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main90467-04034×4iGSJ15..ATM201011

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-52040×5iGSJ15200707-201011

67867JCLIP, DOOR WEATHERSTRIP, RH(FOR REAR DOOR)

main67869-26050×2iGSJ15..ATM201410

main90467-06084×2iGSJ15200707-201011

67867KCLIP, DOOR WEATHERSTRIP, LH(FOR REAR DOOR)

main67869-26050×2iGSJ15..ATM201410

main90467-06084×2iGSJ15200707-201011

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-52030×5iGSJ15201011-201312

67869LCLIP, REAR DOOR WEATHERSTRIP

main67869-20030×10iGSJ15200707-201011

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67867-12150×20iGSJ15..MTM201312-201712

67871FWEATHERSTRIP, ACCESS PANEL, RH

main67871-35071iGSJ15200707-201011

main67871-35072iGSJ15201106-201301

main67871-35073iGSJ15201302-201312

main67871-35074iGSJ15..MTM201312-201712

67872FWEATHERSTRIP, ACCESS PANEL, LH

main67872-35071iGSJ15200707-201011

main67872-35072iGSJ15201106-201301

main67872-35073iGSJ15201302-201312

main67872-35074iGSJ15..MTM201312-201712

67873DWEATHERSTRIP, ACCESS PANEL, REAR RH

main67873-35010iGSJ15..ATM201011

67874DWEATHERSTRIP, ACCESS PANEL, REAR LH

main67874-35010iGSJ15..ATM201011

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-35081iGSJ15..CHI200712-200906

*TEM,T=3.1,PRIVACY

main68103-35082iGSJ15..ATM..(ARL,GEN); GSJ15..CHI,SA201011

*TEM,T=3.1,PRIVACY; *TEM,T=3.1,PRIVACY,BACK GLASS-PRIVACY

main68103-35091iGSJ15..GCC,GEN200707-200904

*UVCT,T=3.1,GREEN

main68103-35092iGSJ15..ATM..(ARL,GCC,GEN)201011

*UVCT,T=3.1,GREEN

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-35081iGSJ15..CHI200712-200906

*TEM,T=3.1,PRIVACY

main68104-35082iGSJ15..CHI; GSJ15..GEN200907-201011

*TEM,T=3.1,PRIVACY; *TEM,T=3.1,PRIVACY,BACK GLASS-PRIVACY

main68104-35091iGSJ15..GCC,GEN200707-200904

*UVCT,T=3.1,GREEN

main68104-35092iGSJ15..GCC,GEN200905-201011

*UVCT,T=3.1,GREEN

68163HWEATHERSTRIP, REAR DOOR GLASS, OUTER RH

main68163-35040iGSJ15200707-201011

main68163-35041iGSJ15..MTM201108-201712

68164AWEATHERSTRIP, REAR DOOR GLASS, OUTER LH

main68164-35040iGSJ15200707-201011

main68164-35041iGSJ15..MTM201108-201712

68630ECHECK ASSY, ACCESS PANEL, RH

main68640-35030iGSJ15200707-201011

68640ECHECK ASSY, ACCESS PANEL, LH

main68640-35030iGSJ15200707-201011

75931ATAPE, BLACK OUT, OUTER UPPER RH

main75931-35010iGSJ15200707-201011

75932ATAPE, BLACK OUT, OUTER UPPER LH

main75932-35010iGSJ15200707-201011

75933BTAPE, BLACK OUT, OUTER FRONT RH

main75933-35010iGSJ15200707-201011

75934BTAPE, BLACK OUT, OUTER FRONT LH

main75934-35010iGSJ15200707-201011

75935BTAPE, BLACK OUT, OUTER REAR RH

main75935-35010iGSJ15200707-201011

75936BTAPE, BLACK OUT, OUTER REAR LH

main75936-35010iGSJ15200707-201011

6131548010RETAINER, DOOR LOCK STRIKER PLATE

main61315-48010

6277535020CLIP, SIDE FRONT WINDOW

main62775-35020

6278935020SASH, QUARTER WINDOW, REAR LH

main62789-35020

9010908295

main90109-08295

9033325001

main90333-25001

9095001964

main90950-01964

9415180600

main94151-80600

37 parts on this diagram · 2 diagrams in section
