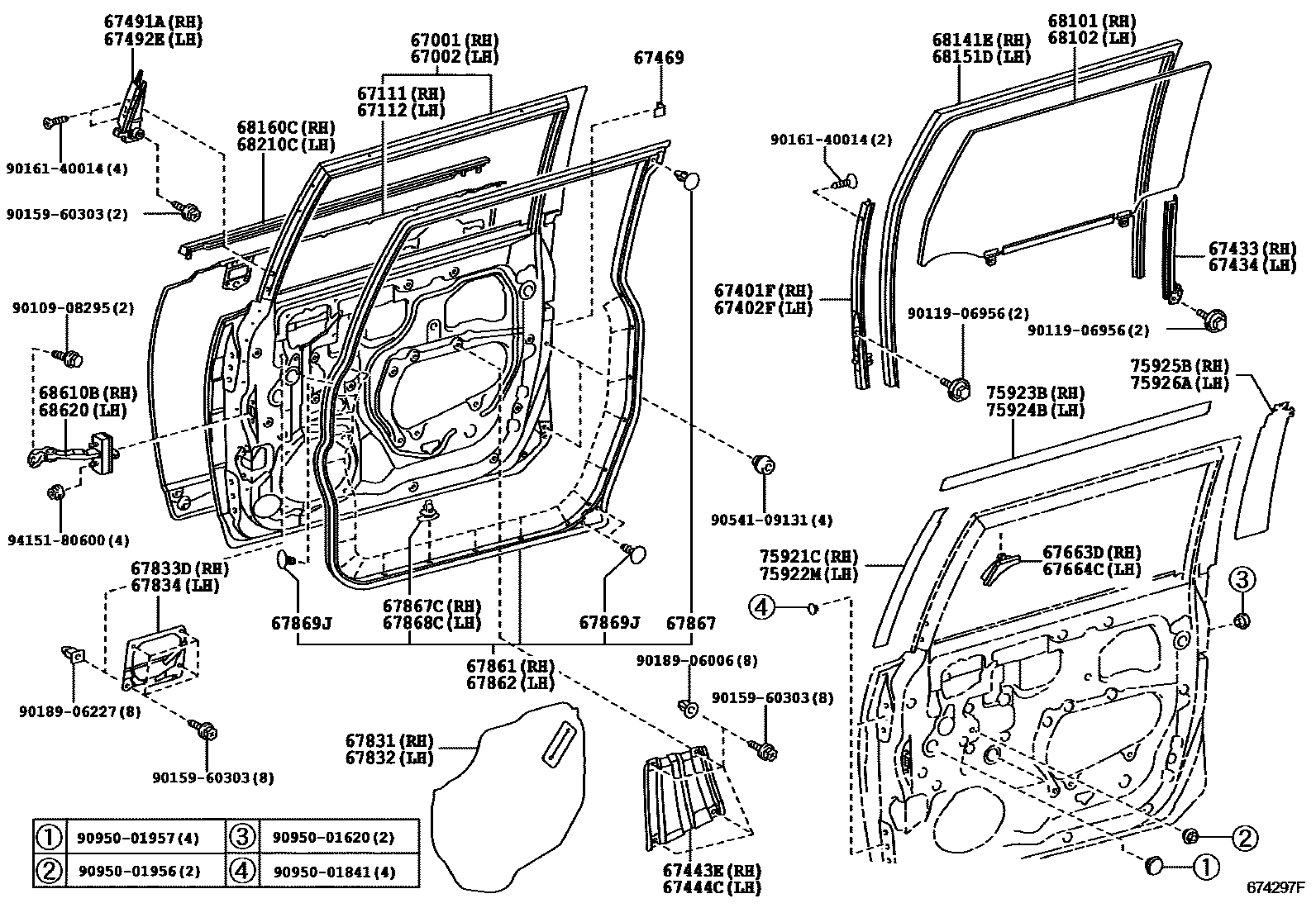

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67433FRAME, FRONT DOOR WINDOW, REAR LOWER RH
67434FRAME, FRONT DOOR WINDOW, REAR LOWER LH
67443EPLATE, FRONT DOOR INSIDE PANEL, RH
67444CPLATE, FRONT DOOR INSIDE PANEL, LH
67469PROTECTOR, FRONT DOOR GUIDE
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67492EGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67663DGARNISH, DOOR FRAME, RH
67664CGARNISH, DOOR FRAME, LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67833DCOVER, FRONT DOOR SERVICE HOLE, NO.2 RH
67834COVER, FRONT DOOR SERVICE HOLE, NO.2 LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867CLIP, DOOR WEATHERSTRIP
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67869JCLIP, FRONT DOOR WEATHERSTRIP
68101GLASS SUB-ASSY, FRONT DOOR, RH
*UVCTT,T=4.0,GREEN
*UVCTT,T=4.0,GREEN
*UVCTT,T=4.0,GREEN
*UVCTT,T=4.0,GREEN
68102GLASS SUB-ASSY, FRONT DOOR, LH
*UVCTT,T=4.0,GREEN
*UVCTT,T=4.0,GREEN
*UVCTT,T=4.0,GREEN
*UVCTT,T=4.0,GREEN
68141ERUN, FRONT DOOR GLASS, RH
68151DRUN, FRONT DOOR GLASS, LH
68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68610BCHECK ASSY, FRONT DOOR, RH
68620CHECK ASSY, FRONT DOOR, LH
75921CTAPE, BLACK OUT, NO.1 RH
75922MTAPE, BLACK OUT, NO.1 LH
75923BTAPE, BLACK OUT, NO.2 RH
75924BTAPE, BLACK OUT, NO.2 LH
75925BTAPE, BLACK OUT, NO.3 RH
75926ATAPE, BLACK OUT, NO.3 LH
9010908295
main90109-08295
9011906956
main90119-06956
9015960303
main90159-60303
9016140014
main90161-40014
9018906006
main90189-06006
9018906227
main90189-06227
9054109131
main90541-09131
9095001620
main90950-01620
9095001841
main90950-01841
9095001956
main90950-01956
9095001957
main90950-01957
9415180600
main94151-80600
51 parts on this diagram · 2 diagrams in section
