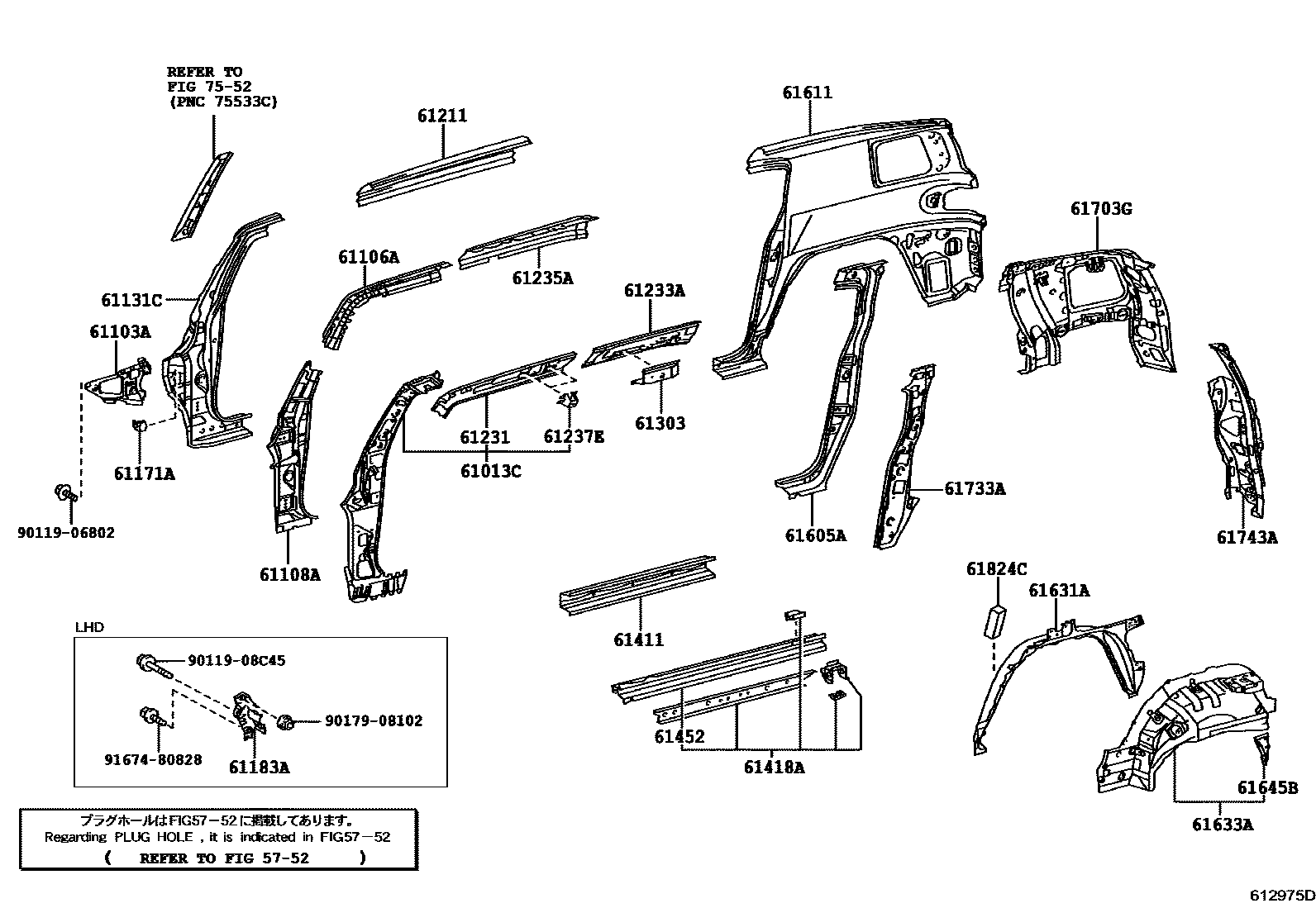

SIDE MEMBER

0001 1RH 0002 1LH

5752HOLE PLUG

→ Go to FIG 57-52

61013CPANEL SUB-ASSY, SIDE, INNER RH

main61013-35020200707-201011

main61013-35040201011

61103AREINFORCEMENT SUB-ASSY, COWL SIDE, RH

main61103-35010200707-200805

main61103-35020200806-201011

61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH

main61106-35010200707-201011

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-35060200707-200912

main61108-35061201001-201011

61131CPILLAR, FRONT BODY, OUTER RH

main61131-35060200707-201011

61171ABRACKET, ANTENNA POLE MOUNTING

main61171-35010200707-201011

61183ABRACKET, INSTRUMENT PANEL SIDE, NO.2 RH

main61183-35020200707-201712

61211RAIL, ROOF SIDE, OUTER RH

main61211-35060200707-201011

61231RAIL, ROOF SIDE, INNER RH

main61231-35180200707-201011

61233ARAIL, ROOF SIDE, INNER NO.2 RH

main61233-35010200707-201011

61235ARAIL, ROOF SIDE, INNER NO.3 RH

main61235-35020200707-201011

61237EBRACKET, ASSIST GRIP, NO.1

main61237-35020200707-201011

61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

main61303-35020200707-201011

61411PANEL, ROCKER, OUTER RH

main61411-35090200707-200904

main61411-35091200905-201011

61418AREINFORCEMENT, ROCKER PANEL, RH

main61401-35030200707-200904

main61401-35031200905-201011

61452PANEL, ROCKER INNER, FRONT RH

main61452-35010200707-200904

main61452-35011200905-201011

61605AREINFORCEMENT SUB-ASSY, QUARTER PANEL, RH

main61605-35040200707-200904

main61605-35041200905-201011

61611PANEL, QUARTER, RH

main61611-35260200707-200904

main61611-35261200905-201011

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-35903200707-201011

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61633-35904200707-201011

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-35010200707-201011

61703GPANEL SUB-ASSY, QUARTER, INNER RH

main61703-35090200707-201011

61733APANEL, ROOF SIDE, INNER FRONT RH

main61733-35010200707-201011

61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH

main61035-35020200707-201106

main61035-35021201107

61824CPAD, NOISE SHUTTER, NO.1

main61824-35020200707-201011

7552MOULDING

→ Go to FIG 75-52

9011906802

main90119-06802

9011908C45

main90119-08C45

9017908102

main90179-08102

9167480828

main91674-80828

31 parts on this diagram · 2 diagrams in section
