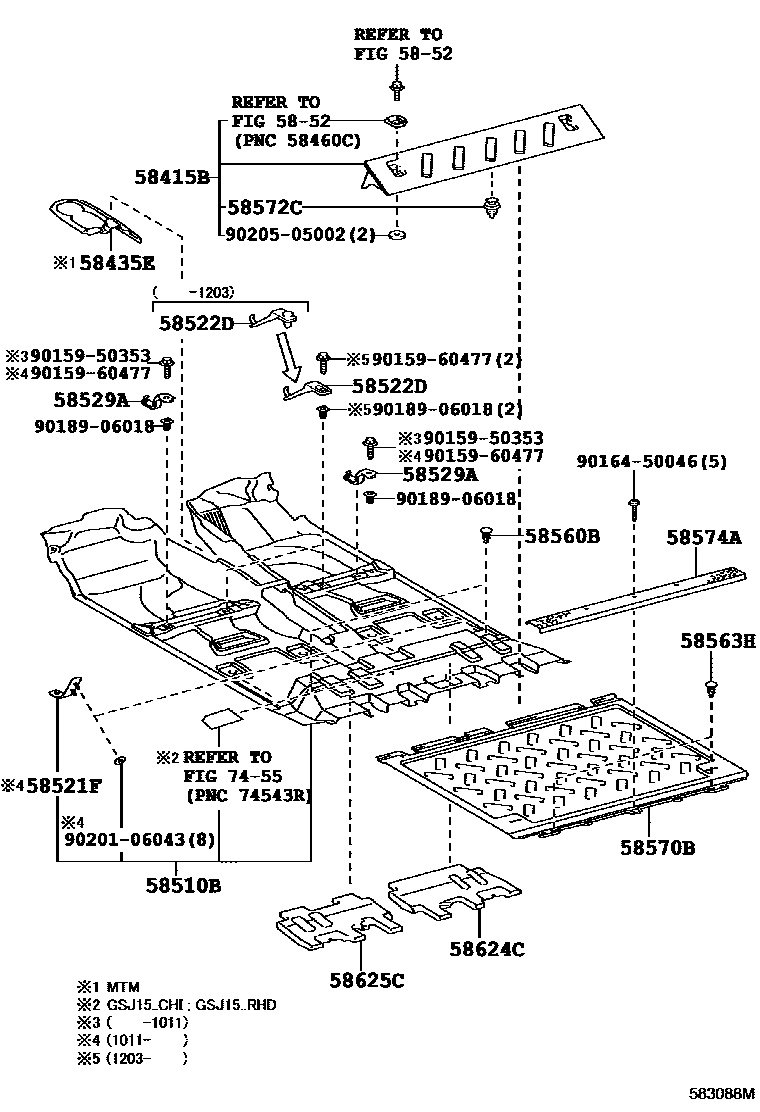

FLOOR MAT & SILENCER PAD

58415BBOARD, REAR FLOOR, NO.1

main58401-35030-B0iGSJ15200707-200907

DK.GRAY,TRIM1#

main58401-35031-B0iGSJ15200908-201011

DK.GRAY,TRIM1#

58435ESILENCER, FRONT FLOOR, CENTER

main58435-35010iGSJ15..MTM200707-201011

58510BMAT, FRONT FLOOR, FRONT

main58510-35A50-B0iGSJ15..RHD201011-201203

DK.GRAY,TRIM1#

main58510-35A51-B0iGSJ15..RHD201203

DK.GRAY,TRIM1#

main58510-3G801-B0iGSJ15..ATM200707-200710

DK.GRAY,TRIM1#

main58510-3G802-B0iGSJ15..ATM..(GCC,GEN)200711-200911

DK.GRAY,TRIM1#

main58510-3G803-B0iGSJ15..ATM..(GCC,GEN)200911-201011

DK.GRAY,TRIM1#

main58510-3G804-B0iGSJ15..ATM..(GCC,GEN)..LHD201011-201203

DK.GRAY,TRIM1#

main58510-3G805-B0iGSJ15..ATM..(GCC,GEN)..LHD201203-201608

DK.GRAY,TRIM1#

main58510-3G806-B0iGSJ15..ATM..LHD201608

DK.GRAY,TRIM1#

main58510-3G811-B0iGSJ15..MTM200707-200710

DK.GRAY,TRIM1#

main58510-3G812-B0iGSJ15..MTM200711-200911

DK.GRAY,TRIM1#

main58510-3G813-B0iGSJ15..MTM200911-201011

DK.GRAY,TRIM1#

main58510-3G814-B0iGSJ15..MTM201011-201203

DK.GRAY,TRIM1#

main58510-3G815-B0iGSJ15..MTM201203-201608

DK.GRAY,TRIM1#

main58510-3G816-B0iGSJ15..MTM201608-201712

DK.GRAY,TRIM1#

main58510-3M132-B0iGSJ15..CHI200712-200911

DK.GRAY,TRIM1#

main58510-3M133-B0iGSJ15..CHI200911-201011

DK.GRAY,TRIM1#

main58510-3M134-B0iGSJ15..CHI201011-201203

DK.GRAY,TRIM1#

main58510-3M135-B0iGSJ15..CHI201203-201512

DK.GRAY,TRIM1#

5852REAR FLOOR PANEL & REAR FLOOR MEMBER

→ Go to FIG 58-52

58521FHOOK, FLOOR CARPET

main51965-35090×4iGSJ15..MTM201011-201712

58522DHOOK, FLOOR CARPET, NO.2

main58521-35050×2iGSJ15200707-201011

main58522-35020×2iGSJ15201011-201012

main58522-35021×2iGSJ15201012-201203

main58522-35022×2iGSJ15..ATM201203

58529AHOOK, FLOOR CARPET, NO.3

main58521-35061×2iGSJ15200707-201011

main58529-35060×2iGSJ15201011-201012

main58529-35061×2iGSJ15..MTM201012-201712

58560BCLIP(FOR FLOOR CARPET, REAR)

main90467-05164-B2×2iGSJ15200707-201011

DK.GRAY,TRIM1#

58563HCLIP(FOR REAR FLOOR MAT)

main90467-05164-B2×2iGSJ15200707-201011

DK.GRAY,TRIM1#

58570BMAT ASSY, REAR FLOOR

main58570-35130-B0iGSJ15..GCC,GEN200707-200907

DK.GRAY,TRIM1#

main58570-35140-B0iGSJ15..CHI200712-201011

DK.GRAY,TRIM1#

58572CCLIP, REAR FLOOR MAT SET

main52425-35020iGSJ15200707-201011

58574APLATE, REAR FLOOR MAT SUPPORT, REAR

main58574-35020-B0iGSJ15200707-200708

DK.GRAY,TRIM1#

main58574-35021-B0iGSJ15200708-201011

DK.GRAY,TRIM1#

main58574-35022-B0iGSJ15..MTM201307-201712

DK.GRAY,TRIM1#

58624CPAD, CENTER FLOOR SILENCER, RH

main58624-35021iGSJ15200707-201011

58625CPAD, CENTER FLOOR SILENCER, LH

main58625-35021iGSJ15200707-201011

7455CAUTION PLATE

→ Go to FIG 74-55

9015950353

main90159-50353

9015960477

main90159-60477

9016450046

main90164-50046

9018906018

main90189-06018

9020106043

main90201-06043

9020505002

main90205-05002

21 parts on this diagram · 1 diagram in section
