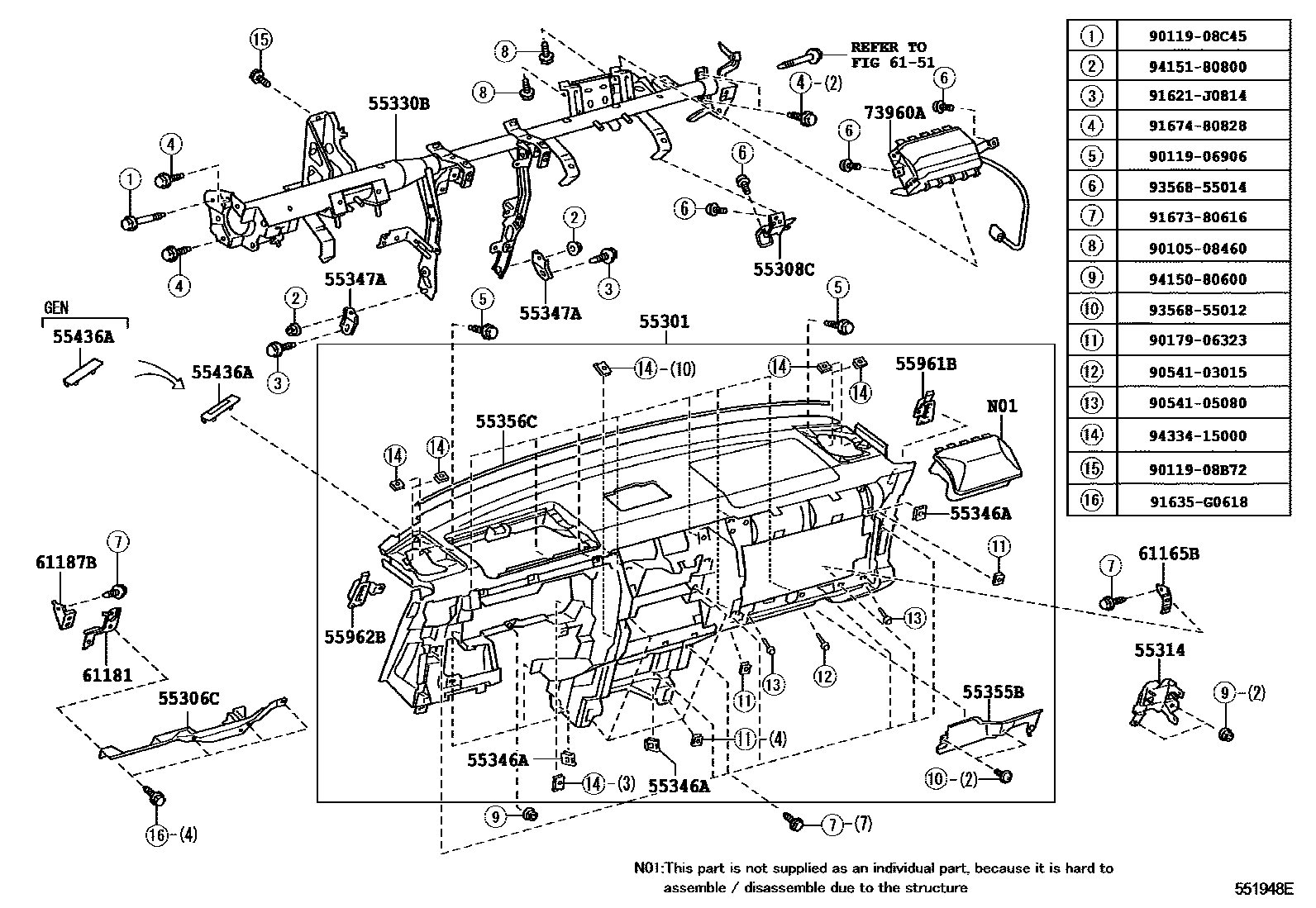

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

55301PANEL SUB-ASSY, INSTRUMENT

main55301-35231-B0iGSJ15200707-201008

DK.GRAY,TRIM1#

sub55301-35280

main55301-35270-B0iGSJ15..(GEN,SA)..RHD201011

DK.GRAY,TRIM1#

main55301-35280-B0iGSJ15..LHD201009-201512

DK.GRAY,TRIM1#

sub55301-35281

main55301-35281-B0iGSJ15..LHD201601

DK.GRAY,TRIM1#

main55301-35360-B0iGSJ15..ARL201011-201608

DK.GRAY,TRIM1#

55306CREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.2

main55306-35120iGSJ15..MTM200707-201712

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-35060iGSJ15200707-201011

main55308-35070iGSJ15..RHD201011

55314RETAINER, INSTRUMENT PANEL SIDE

main55690-35011iGSJ15200707-201011

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-35180iGSJ15200707-201011

main55330-35210iGSJ15..LHD201011

main55330-35220iGSJ15..RHD201011-201201

sub55330-35221

main55330-35221iGSJ15..RHD201202

55346ACLIP, INSTRUMENT PANEL, NO.2

main55345-12060iGSJ15200707-201011

55347ABRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1

main55347-35050iGSJ15200707-201011

55355BPLATE, INSTRUMENT PANEL, RH

main61191-35020iGSJ15200707-201712

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-35060iGSJ15200707-201011

55436APANEL, INSTRUMENT PANEL FINISH, END LH

main55436-35010iGSJ15..ARL,CHI,GCC,SA200707-201011

main55436-35020iGSJ15..GEN200707-201011

55961BNOZZLE, SIDE DEFROSTER, NO.1

main55961-35030iGSJ15200707-201011

55962BNOZZLE, SIDE DEFROSTER, LH

main55962-35010iGSJ15200707-201011

61165BBRACKET, INSTRUMENT PANEL TO COWL SIDE, RH

main61165-35040iGSJ15200707-201011

main61187-35040iGSJ15..RHD201011

61181BRACKET, INSTRUMENT PANEL SIDE

main61181-35060iGSJ15200707-201712

61187BBRACKET, INSTRUMENT PANEL SIDE, NO.4

main61165-35050iGSJ15..RHD201011

main61187-35030iGSJ15200707-201011

6151

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-35070iGSJ15200707-201011

main73960-35100iGSJ15..RHD201011

9010508460

main90105-08460

9011906906

main90119-06906

9011908B72

main90119-08B72

9011908C45

main90119-08C45

9017906323

main90179-06323

9054103015

main90541-03015

9054105080

main90541-05080

91621J0814

main91621-J0814

91635G0618

main91635-G0618

9167380616

main91673-80616

9167480828

main91674-80828

9356855012

main93568-55012

9356855014

main93568-55014

9415080600

main94150-80600

9415180800

main94151-80800

9433415000

main94334-15000

33 parts on this diagram · 8 diagrams in section
