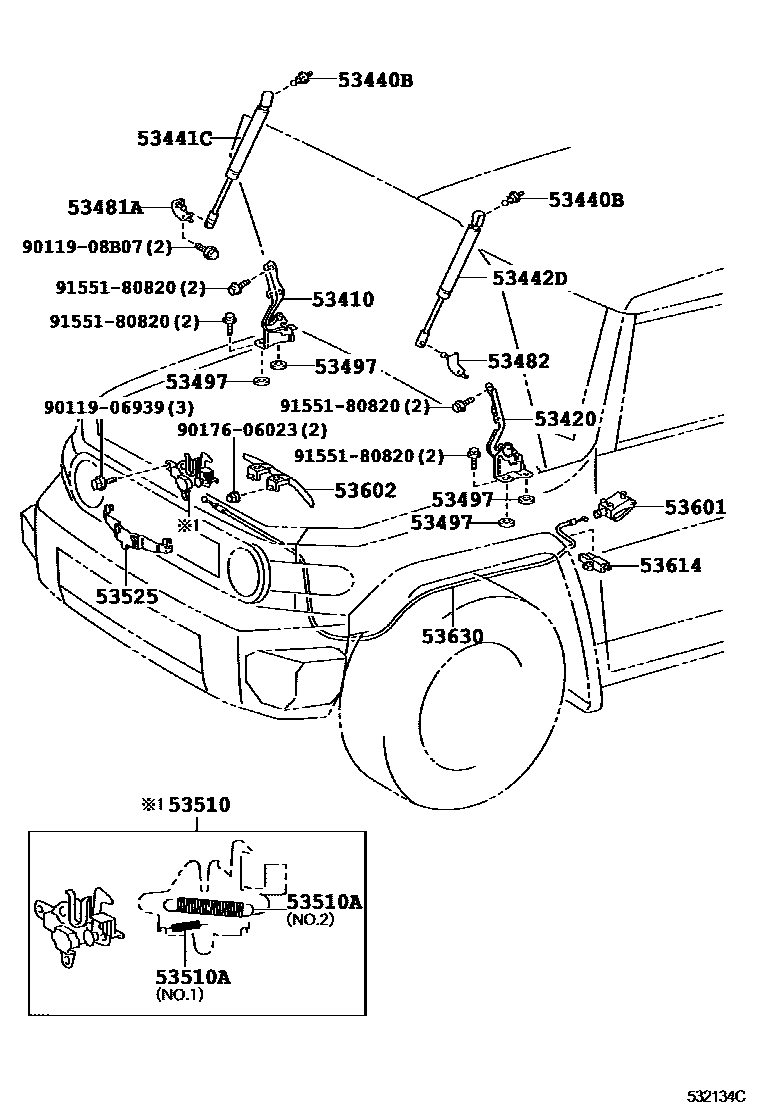

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-35110iGSJ15200707-201011

main53410-35151iGSJ15..MTM201011-201712

53420HINGE ASSY, HOOD, LH

main53420-35100iGSJ15200707-201011

main53420-35151iGSJ15..MTM201011-201712

53440BBOLT, HOOD SUPPORT, NO.1

main68961-30020×2iGSJ15200707-201011

53441CSUPPORT, HOOD, RH

main53440-0W121iGSJ15200707-201008

main53440-0W122iGSJ15201009-201011

main53440-0W160iGSJ15201011-201112

main53440-0W161iGSJ15..MTM201201-201712

53442DSUPPORT, HOOD, LH

main53450-0W111iGSJ15200707-201008

main53450-0W112iGSJ15201009-201011

main53450-0W210iGSJ15201011-201112

main53450-0W211iGSJ15..MTM201201-201712

53481ABRACKET, HOOD SUPPORT, RH

main53408-35010iGSJ15200707-201011

53482BRACKET, HOOD SUPPORT, LH

main53409-35010iGSJ15200707-201011

53497PAD, HOOD HINGE, NO.1

main53497-50020×4iGSJ15200707-201011

T=1.0

53510LOCK ASSY, HOOD

main53510-35240iGSJ15200707-201011

main53510-35270iGSJ15..RHD201011

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09050iGSJ15200707-201011

WD=0.9,CW=20.5,NO.1:REFER ILLUST.

main90506-18061iGSJ15..MTM201011-201712

WD=1.8,CW=18,NO.2:REFER ILLUST.

53525PROTECTOR, HOOD LOCK RELEASE LEVER

main53525-33040iGSJ15..ATM201011

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-B3iGSJ15..ATM201011

DK.GRAY,TRIM1#

53602PROTECTOR SUB-ASSY, HOOD LOCK CONTROL CABLE

main53602-60010iGSJ15..RHD201011

main53602-60020iGSJ15..MTM201011-201712

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-35020iGSJ15..ATM..LHD201011

main82711-1E340iGSJ15..RHD201011

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-35090iGSJ15200707-201011

main53630-35110iGSJ15..RHD201011

9011906939

main90119-06939

9011908B07

main90119-08B07

9017606023

main90176-06023

9155180820

main91551-80820

19 parts on this diagram · 2 diagrams in section
