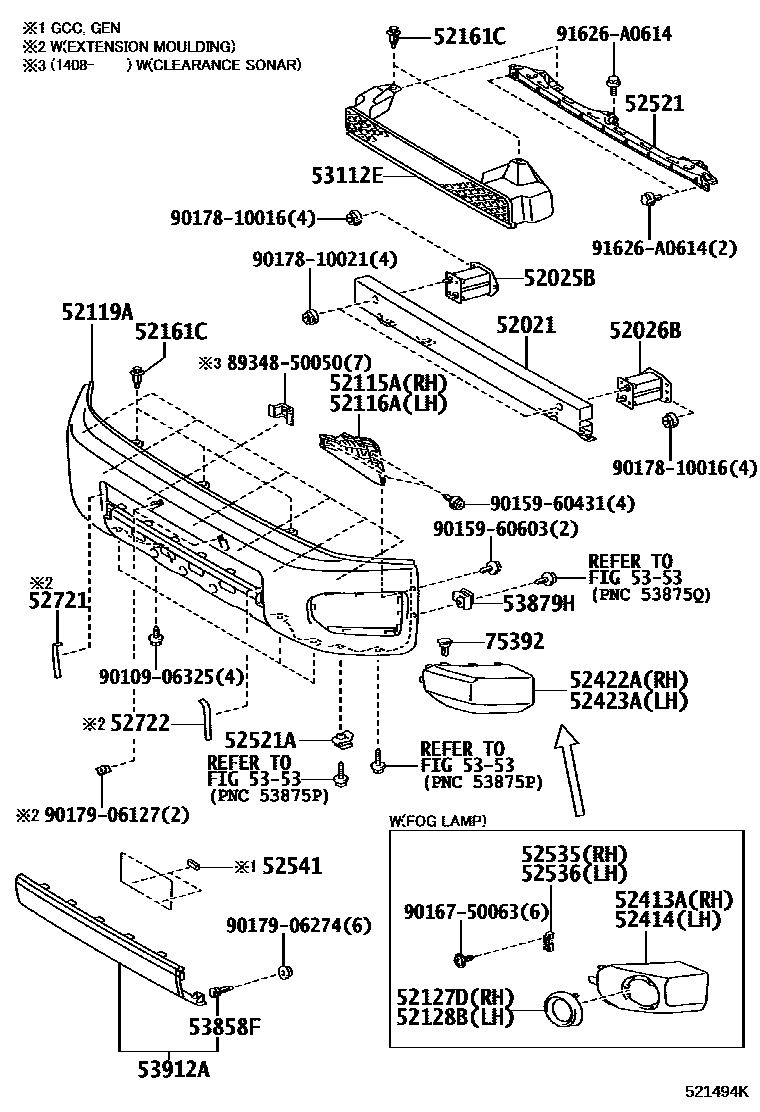

FRONT BUMPER & BUMPER STAY
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,ALGERIA SPEC
NO PAINT REQ.,IVORY COAST SPEC
NO PAINT REQ.
NO PAINT REQ.
52127DCOVER, FRONT BUMPER HOLE, RH
SILVER PAINTED
52128BCOVER, FRONT BUMPER HOLE, LH
SILVER PAINTED
52161CPIECE, FRONT BUMPER
sub52161-0K040
52413APAD, FRONT BUMPER GUARD, RH
SILVER PAINTED
52414PAD, FRONT BUMPER GUARD, LH
SILVER PAINTED
52422APAD, FRONT BUMPER, RH
NO PAINT REQ.,SILVER METALLIC
NO PAINT REQ.
52423APAD, FRONT BUMPER, LH
SILVER METALLIC
NO PAINT REQ.
52521RETAINER, FRONT BUMPER, UPPER CENTER
52521ACLIP(FOR FRONT BUMPER RETAINER)
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52541PROTECTOR, FRONT BUMPER
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
5353
53858FBOLT, WHEEL OPENING SET
53879HRETAINER, FRONT FENDER LINER
53912APANEL, FRONT VALANCE, LOWER
NO PAINT REQ.,SILVER METALLIC
NO PAINT REQ.
75392RETAINER, OUTSIDE MOULDING
8934850050RETAINER, ULTRASONIC SENSOR, NO.1
main89348-50050
9010906325
main90109-06325
9015960431
main90159-60431
9015960603
main90159-60603
9016750063
main90167-50063
9017810016
main90178-10016
9017810021
main90178-10021
9017906127
main90179-06127
9017906274
main90179-06274
91626A0614
main91626-A0614
36 parts on this diagram · 1 diagram in section
