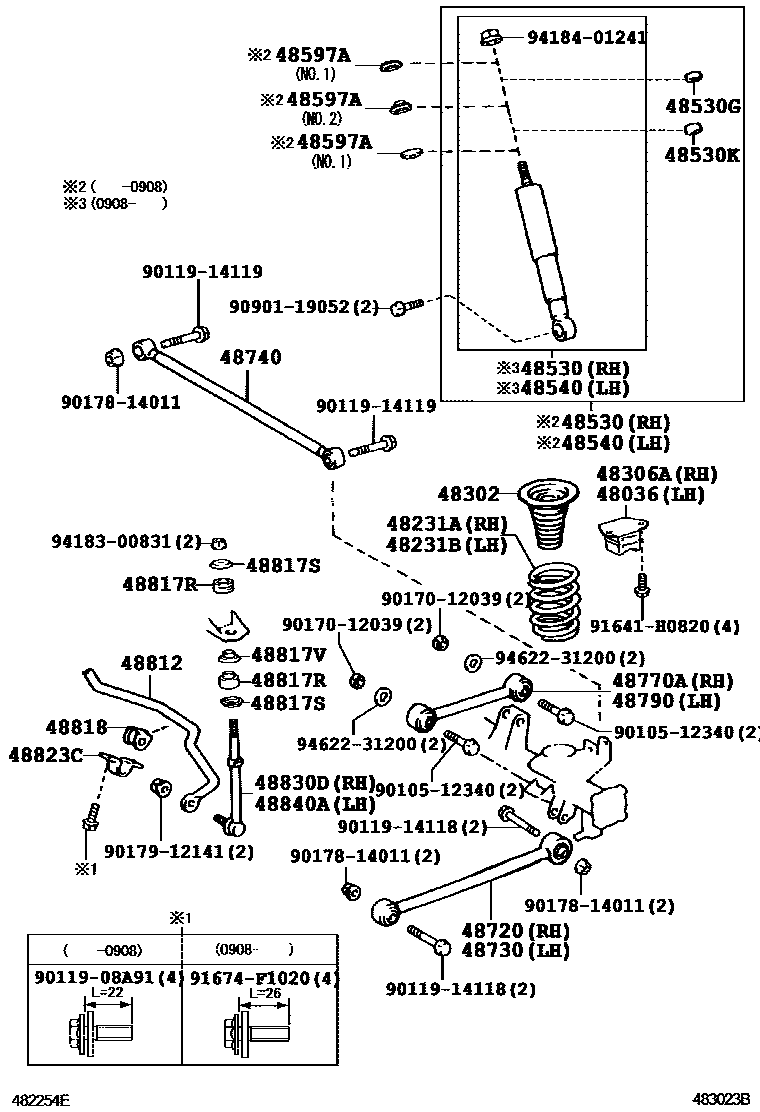

REAR SPRING & SHOCK ABSORBER

48036BUMPER SUB-ASSY, REAR SPRING, LH

main48306-60180iGSJ15200707-201011

48231ASPRING, COIL, REAR RH

main48231-35321iGSJ15200707-200908

main48231-35420iGSJ15200908-201011

main48231-35380iGSJ15..ARL,GCC,GEN,SA201211

FUEL TANK-WITH(SUB TANK)

48231BSPRING, COIL, REAR LH

main48231-35321iGSJ15200707-200908

main48231-35420iGSJ15201011

main48231-35380iGSJ15..ARL,GCC,GEN,SA201211

FUEL TANK-WITH(SUB TANK)

48302SPRING SUB-ASSY, HOLLOW

main48302-35040×2iGSJ15200707-201011

48306ABUMPER SUB-ASSY, REAR SPRING, RH

main48306-60180iGSJ15200707-201011

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-80459iGSJ15200707-200908

MARK 48530-35140

main48530-80539iGSJ15200908-201011

MARK 48530-35230

main48530-80591iGSJ15201101-201203

MARK 48530-35280

main48530-80610iGSJ15201203-201308

MARK 48530-35281

main48530-80680iGSJ15201308

MARK 48530-35282

main48530-80642iGSJ15..ARL,GCC,GEN,SA201211-201308

MARK 48530-35290,FUEL TANK-WITH(SUB TANK)

main48530-80681iGSJ15..ARL,GCC,GEN,SA201308

MARK 48530-35291,FUEL TANK-WITH(SUB TANK)

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main48505-60090×2iGSJ15200908-201011

main90948-01087×2iGSJ15200707-200908

48530KCUSHION, REAR SHOCK ABSORBER, NO.2

main48505-60100×2iGSJ15200908-201011

main90948-01088×2iGSJ15200707-200908

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-80459iGSJ15200707-200908

MARK 48530-35140

main48530-80539iGSJ15201011-201101

MARK 48530-35230

main48530-80591iGSJ15201101-201203

MARK 48530-35280

main48530-80610iGSJ15201203-201308

MARK 48530-35281

main48530-80680iGSJ15201308

MARK 48530-35282

main48530-80642iGSJ15..ARL,GCC,GEN,SA201211-201308

MARK 48530-35290,FUEL TANK-WITH(SUB TANK)

main48530-80681iGSJ15..ARL,GCC,GEN,SA201308

MARK 48530-35291,FUEL TANK-WITH(SUB TANK)

48597ARETAINER, REAR SHOCK ABSORBER CUSHION

main48597-60070×4iGSJ15200707-200908

NO.1

main48597-60080×2iGSJ15200707-200908

NO.2

48720ARM ASSY, LOWER CONTROL, RH

main48720-35061iGSJ15200707-201011

48730ARM ASSY, LOWER CONTROL, LH

main48720-35061iGSJ15200707-201011

48740ROD ASSY, REAR LATERAL CONTROL

main48740-35040iGSJ15200707-200908

main48740-60160iGSJ15200908-201011

48770AARM ASSY, UPPER CONTROL, REAR RH

main48710-35050iGSJ15200707-201011

48790ARM ASSY, UPPER CONTROL, REAR LH

main48710-35050iGSJ15200707-201011

48812BAR, STABILIZER, REAR

main48812-35120iGSJ15200707-200908

main48812-60240iGSJ15200908-201011

48817RCUSHION, STABILIZER(FOR REAR)

main48817-30020×4iGSJ15200707-200907

main48817-36011×4iGSJ15200908-201011

48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)

main90948-02126×4iGSJ15200707-201011

48817VRETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR)

main90948-02127×2iGSJ15200707-201011

48818BUSH, STABILIZER, REAR

main48815-16160×2iGSJ15200707-200908

main48818-60030×2iGSJ15200908-201011

48823CCOVER, REAR STABILIZER BRACKET

main48823-35060×2iGSJ15200707-200908

main48823-60050×2iGSJ15200908-201011

48830DLINK ASSY, REAR STABILIZER, RH

main48830-60030iGSJ15200707-201011

48840ALINK ASSY, REAR STABILIZER, LH

main48830-60030iGSJ15200707-201011

9010512340

main90105-12340

9011908A91

main90119-08A91

9011914118

main90119-14118

9011914119

main90119-14119

9017012039

main90170-12039

9017814011

main90178-14011

9017912141

main90179-12141

9090119052

main90901-19052

91641H0820

main91641-H0820

91674F1020

main91674-F1020

9418300831

main94183-00831

9418401241

main94184-01241

9462231200

main94622-31200

36 parts on this diagram · 1 diagram in section
