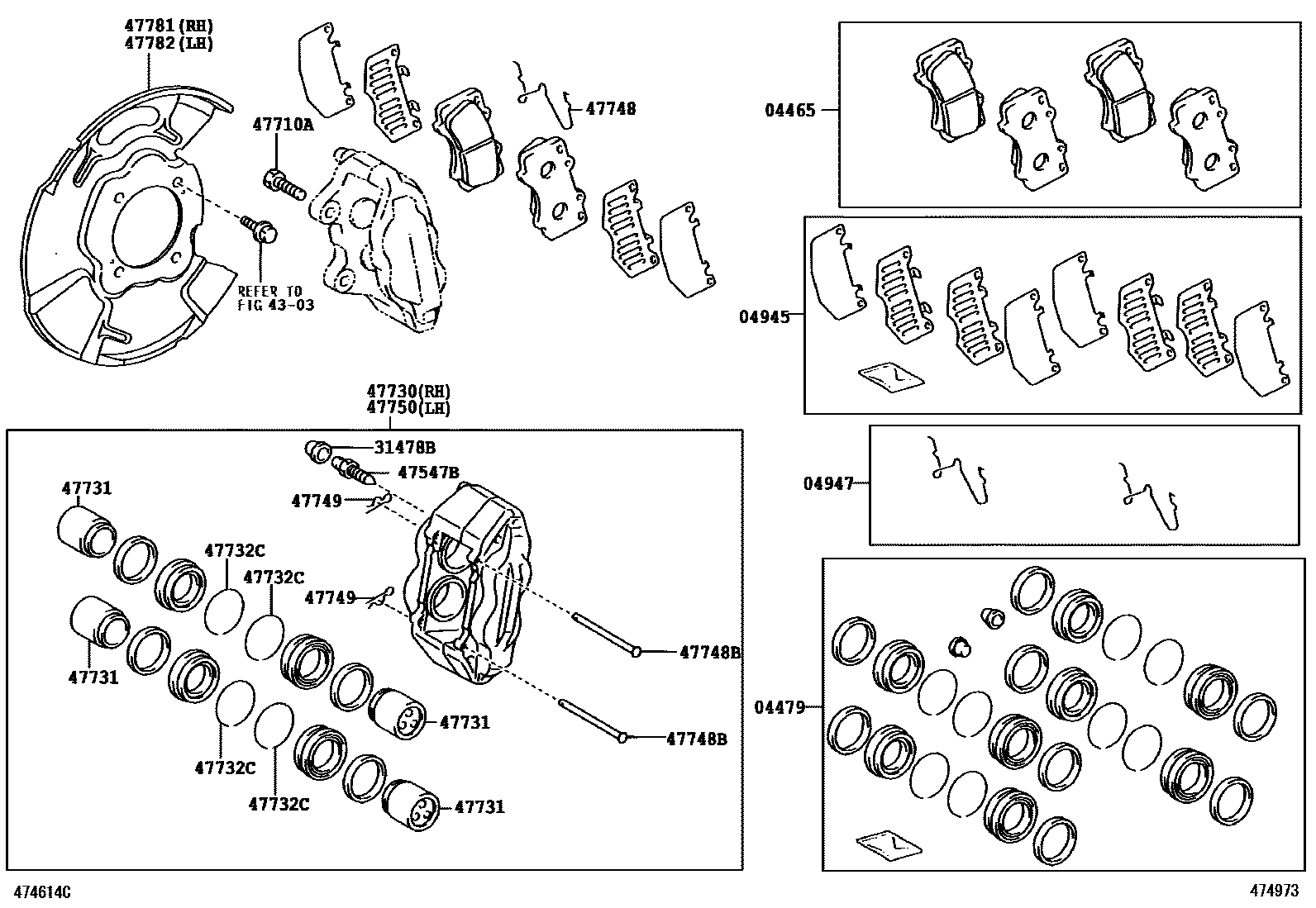

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-35290iGSJ15200707-201011

MARK SUMITOMO PS558H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-60050iGSJ15200707-201011

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-35120iGSJ15200707-201011

04947FITTING KIT, DISC BRAKE, FRONT

main04947-35050iGSJ15200707-201011

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iGSJ15200707-201011

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-35020×2iGSJ15200707-201011

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12175×4iGSJ15200707-201011

*12-1.25PX35-27

main90105-14198×4iGSJ15201505

*14-1.5PX35-30.5

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-35411iGSJ15200707-201011

main47730-35430iGSJ15201505

47731PISTON, FRONT DISC BRAKE

main47731-35040×8iGSJ15200707-201011

main47731-35411×8iGSJ15201407

47732CRING, SET, NO.2(FOR FRONT DISC BRAKE)

main90522-50003×8iGSJ15200707-201011

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-35010×2iGSJ15200707-201011

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90240-06158×4iGSJ15200707-201011

47749CLIP, PIN HOLD

main47749-35040×4iGSJ15200707-201011

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-35411iGSJ15200707-201011

main47750-35430iGSJ15201505

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-35160iGSJ15200707-201011

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-35160iGSJ15200707-201011

17 parts on this diagram · 1 diagram in section
