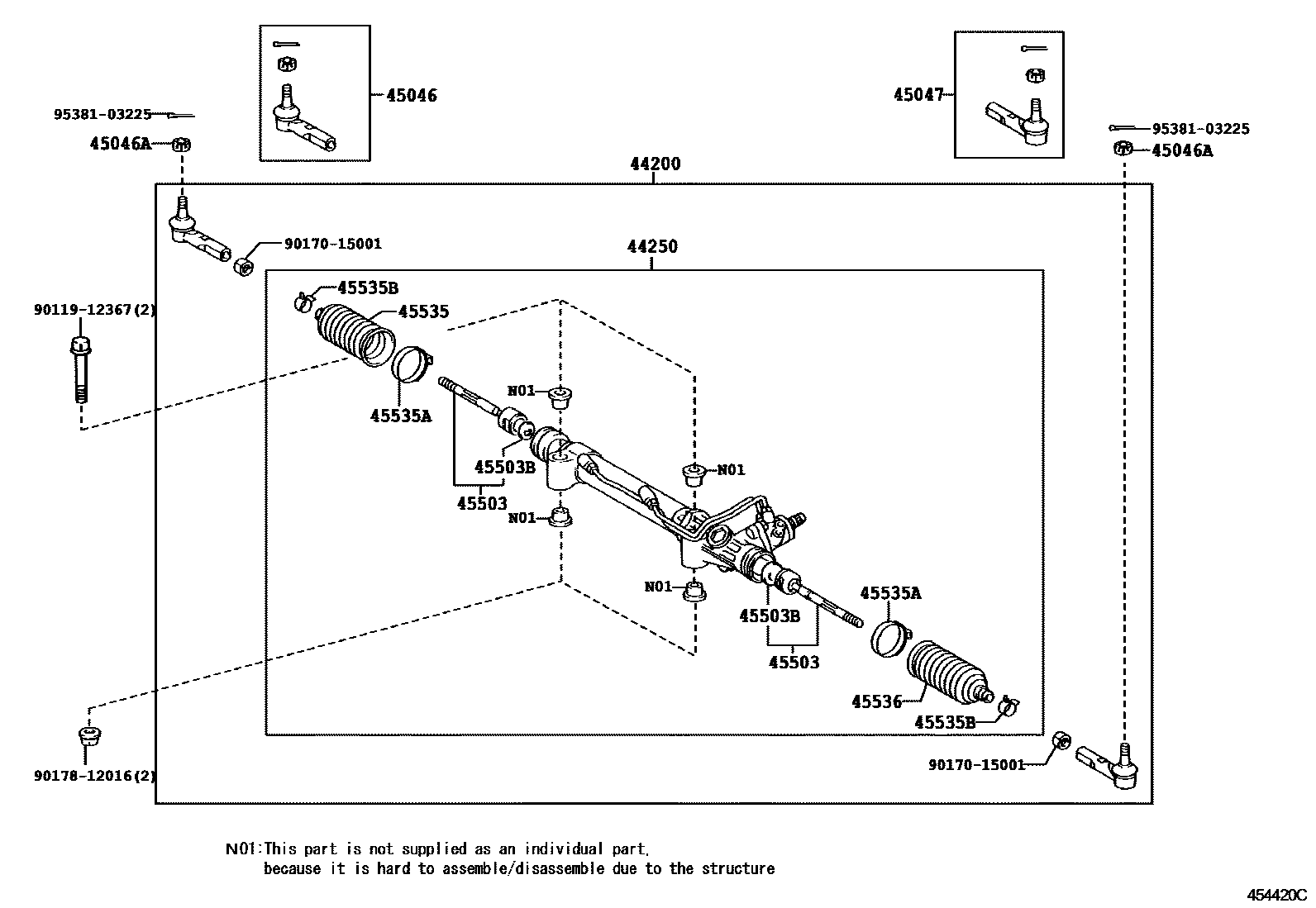

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

44200LINK ASSY, POWER STEERING

main44200-35080iGSJ15200707-200908

main44200-35100iGSJ15200908-201303

main44200-35101iGSJ15..LHD201304-201402

main44200-35102iGSJ15..LHD201403-201505

main44200-35103iGSJ15..ATM..LHD201506-201712

main44200-35110iGSJ15..RHD201011-201302

main44200-35111iGSJ15..RHD201303-201402

main44200-35112iGSJ15..RHD201403-201505

main44200-35113iGSJ15..RHD201506

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-35080iGSJ15200707-200908

45046END SUB-ASSY, TIE ROD, RH

main45046-39505iGSJ15200707-200908

main45046-69245iGSJ15200908-201712

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-14042iGSJ15200707-201712

45047END SUB-ASSY, TIE ROD, LH

main45046-39505iGSJ15200707-200908

main45046-69245iGSJ15..MTM200908-201712

45503END SUB-ASSY, STEERING RACK

main45503-35070iGSJ15200908-201712

main45503-39305iGSJ15200707-200908

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-22001iGSJ15200707-200908

OD=43

45535BOOT, STEERING RACK, NO.1

main45535-26030iGSJ15200707-200908

main45535-69025iGSJ15..ATM200908-201712

45535ACLAMP(FOR STEERING RACK BOOT)

main90460-55016iGSJ15200707-200908

main90460-60008iGSJ15200908-201712

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021iGSJ15200707-201712

45536BOOT, STEERING RACK, NO.2

main45535-26030iGSJ15200707-200908

main45535-69015iGSJ15200908-201712

9011912367

main90119-12367

9017015001

main90170-15001

9017812016

main90178-12016

9538103225

main95381-03225

15 parts on this diagram · 4 diagrams in section
