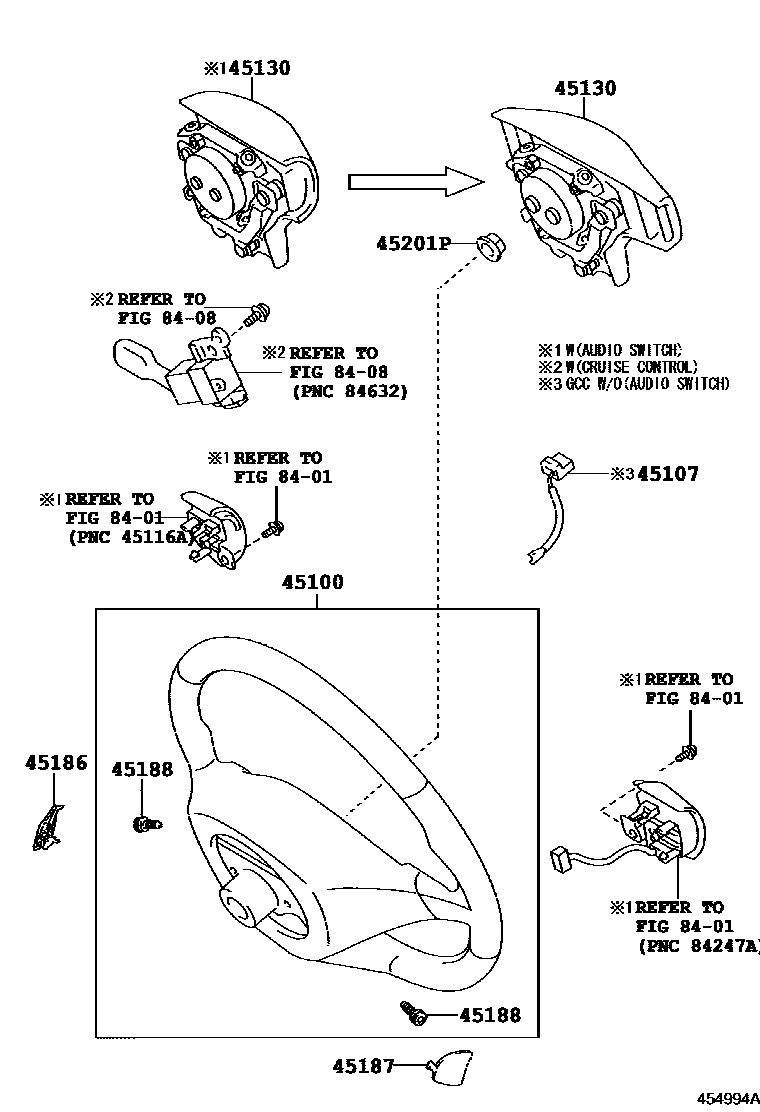

45100WHEEL ASSY, STEERING

main45100-35460-B0i200707-201011

3-SPOKE,URETHANE,DK.GRAY,TRIM1#

main45100-35470-B0i200712-201006

3-SPOKE,LEATHER,DK.GRAY,TRIM1#

main45100-35471-B0i201011-201112

3-SPOKE,LEATHER,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,IMAGE PACKAGE&CONVENIENCE PACKAGE,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,IMAGE PACKAGE,DK.GRAY,TRIM1#

main45100-35471-B2supersedes 45100-35460-B0i201112

3-SPOKE,LEATHER,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,IMAGE PACKAGE,DK.GRAY,TRIM1#

45107WIRE SUB-ASSY, HORN BUTTON

main45107-42020i201208

IMAGE PACKAGE&CONVENIENCE PACKAGE&AUDIO-RADIO LESS 8SPEAKER

45130BUTTON ASSY, HORN

main45130-35441-B0supersedes 45130-35451-B0i201011

DK.GRAY,TRIM1#

main45130-35451-B0supersedes 45130-35441-B0i200712-201011

DK.GRAY,TRIM1#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-35020-B0supersedes 45186-35030-B0i200707-201011

DK.GRAY,TRIM1#; IMAGE PACKAGE&CONVENIENCE PACKAGE&AUDIO-AM/FM CD CHANGER, 8SPERAKER,DK.GRAY,TRIM1#; IMAGE PACKAGE&CONVENIENCE PACKAGE&AUDIO-AM/FM CD CHANGER, 9SPEAKER,DK.GRAY,TRIM1#; IMAGE PACKAGE&CONVENIENCE PACKAGE&AUDIO-LESS AUDIO, 6SPEAKER,DK.GRAY,TRIM1#

main45186-35030-B0i201011

DK.GRAY,TRIM1#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-35020-B0i200707-201011

DK.GRAY,TRIM1#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010×2i200707-201011

L=18

45201PNUT, STEERING WHEEL SET

main90179-12071i200707-201011

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08
