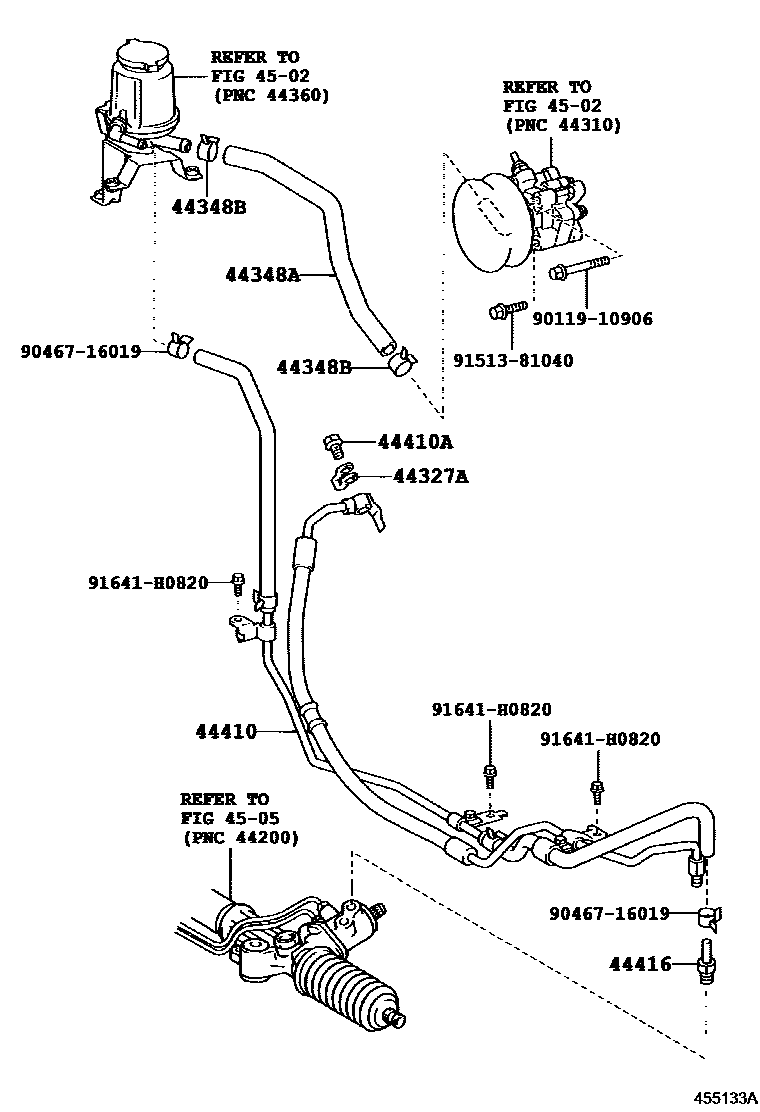

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30040iGSJ15200707-201011

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-35280iGSJ15200707-200908

main44348-60430iGSJ15200908-201011

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90467-21010×2iGSJ15201011

44410TUBE ASSY, PRESSURE FEED

main44410-35691iGSJ15..CHI,GEN200707-200908

main44410-35760iGSJ15..GCC200707-200908

main44410-35770iGSJ15..CHI,GEN200908-201011

main44410-35780iGSJ15..GCC201011-201208

main44410-35790iGSJ15..MTM..GCC201208-201712

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16034iGSJ15200707-201011

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-60370iGSJ15200707-200908

main44416-60450iGSJ15200908-201011

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9011910906

main90119-10906

9046716019

main90467-16019

9151381040

main91513-81040

91641H0820

main91641-H0820

12 parts on this diagram · 6 diagrams in section
