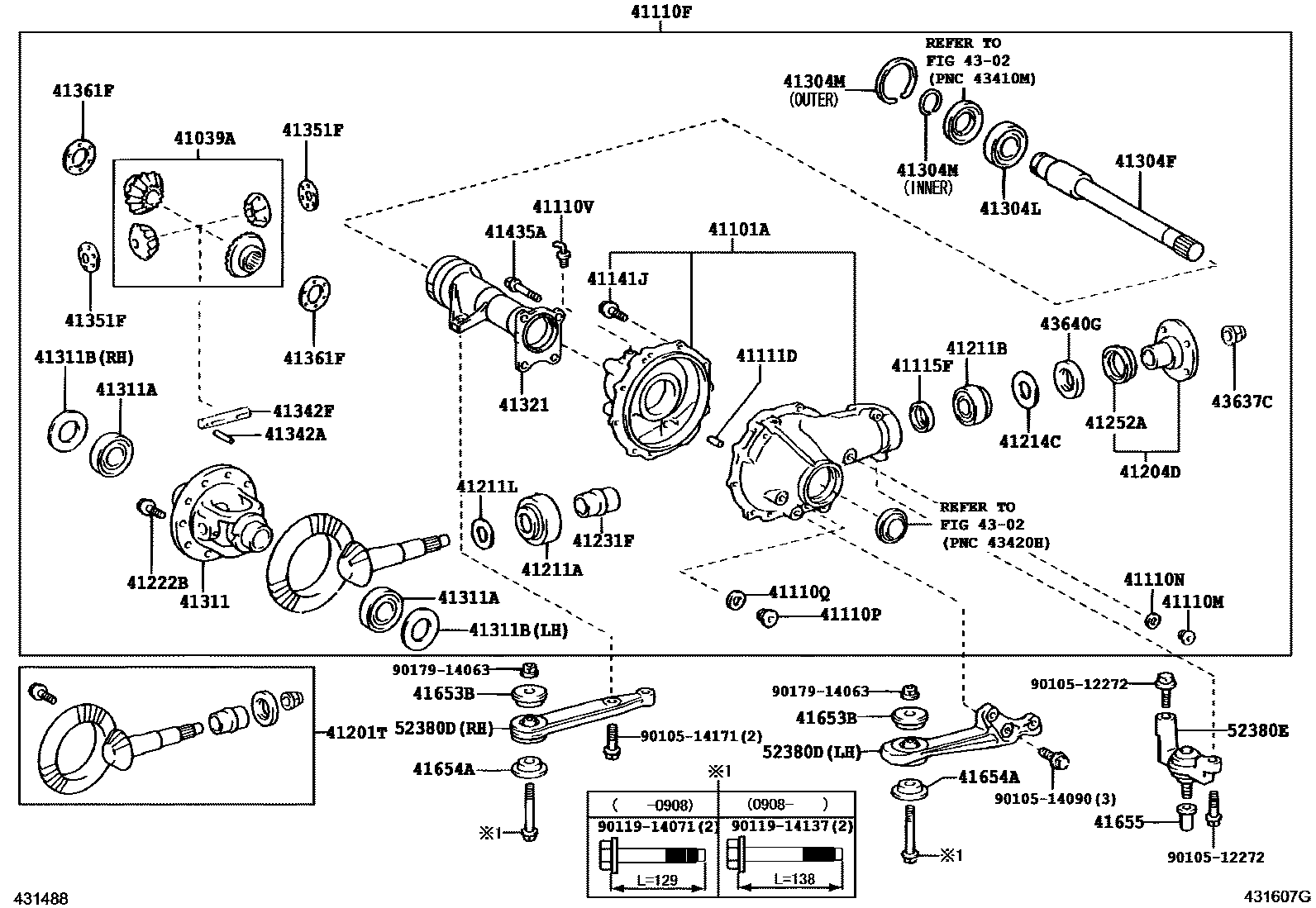

FRONT AXLE HOUSING & DIFFERENTIAL
41039AGEAR KIT, DIFFERENTIAL
41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
41110FCARRIER ASSY, DIFFERENTIAL, FRONT
*FGR=41:11=3.727,PNC 41101A=TYPE A
*FGR=43:11=3.909
41110NGASKET, FRONT DIFFERENTIAL FILLER PLUG
41110PPLUG, FRONT DIFFERENTIAL DRAIN
41110VUNION (FOR FRONT DIFFERENTIAL)
41111DPIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER)
41115FRING, FRONT DIFFERENTIAL OIL STORAGE
41141JBOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
*10-1.25PX24.5-18
*10-1.25PX24.5-18,(J)
*10-1.25PX24.5-18,(J),PNC 41101A=T/P A
*10-1.25PX24.5-18,PNC 41101A=TYPE B
*10-1.25PX24.5-18,(L),PNC 41101A=T/P A
*10-1.25PX24.5-18,(L)
41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT
*FGR=43:11=3.909
*FGR=41:11=3.727
41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41211LSHIM (FOR DIFFERENTIAL DRIVE PINION)
OD=47,T=1.70,*422,OD=47
OD=47,T=1.73,*422,OD=47
OD=47,T=1.76,*422,OD=47
OD=47,T=1.79,*422,OD=47
OD=47,T=1.82,*422,OD=47
OD=47,T=1.85,*422,OD=47
OD=47,T=1.88,*422,OD=47
OD=47,T=1.91,*422,OD=47
OD=47,T=1.94,*422,OD=47
OD=47,T=1.97,*422,OD=47
OD=47,T=2.00,*422,OD=47
OD=47,T=2.03,*422,OD=47
OD=47,T=2.06,*422,OD=47
OD=47,T=2.09,*422,OD=47
OD=47,T=2.12,*422,OD=47
OD=47,T=2.15,*422,OD=47
OD=47,T=2.18,*422,OD=47
OD=47,T=2.21,*422,OD=47
OD=47,T=2.24,MARK 01,*422,OD=47
OD=47,T=2.27,MARK 02,*422,OD=47
OD=47,T=2.30,MARK 03,*422,OD=47
OD=47,T=2.33,MARK 04,*422,OD=47
OD=52,T=1.70
OD=52,T=1.70,*423,OD=52
OD=52,T=1.70,*422,OD=52
OD=52,T=1.73,*422,OD=52
OD=52,T=1.73,*423,OD=52
OD=52,T=1.73
OD=52,T=1.76,*422,OD=52
OD=52,T=1.76
OD=52,T=1.76,*423,OD=52
OD=52,T=1.79,*423,OD=52
OD=52,T=1.79
OD=52,T=1.79,*422,OD=52
OD=52,T=1.82
OD=52,T=1.82,*422,OD=52
OD=52,T=1.82,*423,OD=52
OD=52,T=1.85,*422,OD=52
OD=52,T=1.85
OD=52,T=1.85,*423,OD=52
OD=52,T=1.88,*422,OD=52
OD=52,T=1.88
OD=52,T=1.88,*423,OD=52
OD=52,T=1.91,*423,OD=52
OD=52,T=1.91,*422,OD=52
OD=52,T=1.91
OD=52,T=1.94
OD=52,T=1.94,*423,OD=52
OD=52,T=1.94,*422,OD=52
OD=52,T=1.97,*423,OD=52
OD=52,T=1.97,*422,OD=52
OD=52,T=1.97
OD=52,T=2.00,*423,OD=52
OD=52,T=2.00
OD=52,T=2.00,*422,OD=52
OD=52,T=2.03,*422,OD=52
OD=52,T=2.03
OD=52,T=2.03,*423,OD=52
OD=52,T=2.06,*422,OD=52
OD=52,T=2.06
OD=52,T=2.06,*423,OD=52
OD=52,T=2.09,*423,OD=52
OD=52,T=2.09
OD=52,T=2.09,*422,OD=52
OD=52,T=2.12,*422,OD=52
OD=52,T=2.12
OD=52,T=2.12,*423,OD=52
OD=52,T=2.15,*423,OD=52
OD=52,T=2.15,*422,OD=52
OD=52,T=2.15
OD=52,T=2.18
OD=52,T=2.18,*422,OD=52
OD=52,T=2.18,*423,OD=52
OD=52,T=2.21
OD=52,T=2.21,*423,OD=52
OD=52,T=2.21,*422,OD=52
OD=52,T=2.24
OD=52,T=2.24,*422,OD=52
OD=52,T=2.24,*423,OD=52
OD=52,T=2.27
OD=52,T=2.27,*422,OD=52
OD=52,T=2.27,*423,OD=52
OD=52,T=2.30,*422,OD=52
OD=52,T=2.30
OD=52,T=2.30,*423,OD=52
OD=52,T=2.33,*423,OD=52
OD=52,T=2.33
OD=52,T=2.33,*422,OD=52
41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)
41304FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH
41304LBEARING (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT RH)
PNC 41101A=TYPE B
PNC 41101A=TYPE A
41304MRING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH)
INNER
OUTER
41311CASE, FRONT DIFFERENTIAL
PNC 41101A=TYPE B
PNC 41101A=TYPE A
41311ABEARING (FOR FRONT DIFFERENTIAL CASE)
PNC 41101A=TYPE B
PNC 41101A=TYPE A
41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)
T=1.60,LH
T=1.66,LH
T=1.72,LH
T=1.78,LH
T=1.84,LH
T=1.90,LH
T=1.96,LH
T=2.02,LH
T=2.08,LH
T=2.14,LH
T=1.60,RH
T=1.66,RH
T=1.72,RH
T=1.78,RH
T=1.84,RH
T=1.90,RH
T=1.96,RH
T=2.02,RH
T=2.08,RH
T=2.14,RH
T=1.58,LH
T=1.62,LH
T=1.64,LH
T=1.68,LH
T=1.70,LH
T=1.74,LH
T=1.76,LH
T=1.80,LH
T=1.82,LH
T=1.86,LH
T=1.88,LH
T=1.92,LH
T=1.94,LH
T=1.98,LH
T=2.00,LH
T=2.04,LH
T=2.06,LH
T=2.10,LH
T=2.12,LH
T=2.16,LH
T=1.58,RH
T=1.62,RH
T=1.64,RH
T=1.68,RH
T=1.70,RH
T=1.74,RH
T=1.76,RH
T=1.80,RH
T=1.82,RH
T=1.86,RH
T=1.88,RH
T=1.92,RH
T=1.94,RH
T=1.98,RH
T=2.00,RH
T=2.04,RH
T=2.06,RH
T=2.10,RH
T=2.12,RH
T=2.16,RH
T=1.44,RH
T=1.46,RH
T=1.48,RH
T=1.50,RH
T=1.52,RH
T=1.54,RH
T=1.56,RH
T=2.18,LH
T=2.20,LH
T=2.22,LH
T=2.24,LH
T=2.26,LH
T=2.28,LH
T=2.30,LH
41321TUBE, DIFFERENTIAL EXTENSION FLANGE
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
41435ABOLT (FOR DIFFERENTIAL CLUTCH CASE SETTING)
*12-1.25PX78-30
*12-1.25PX24-16.5
41653BSTOPPER, DIFFERENTIAL MOUNT, UPPER
41654ASTOPPER, DIFFERENTIAL MOUNT, LOWER
41655NUT, FRONT DIFFERENTIAL MOUNT, NO.1
4302
43637CNUT, CASTLE (FOR FRONT AXLE DRIVE PINION)
43640GSEAL, TYPE T OIL (FOR FRONT AXLE DIFFERENTIAL CARRIER)
52380DSUPPORT ASSY, FRONT DIFFERENTIAL
LH
RH
LH
RH
52380ESUPPORT ASSY, DIFFERENTIAL
9010512272
main90105-12272
9010514090
main90105-14090
9010514171
main90105-14171
9011914071
main90119-14071
9011914137
main90119-14137
9017914063
main90179-14063
