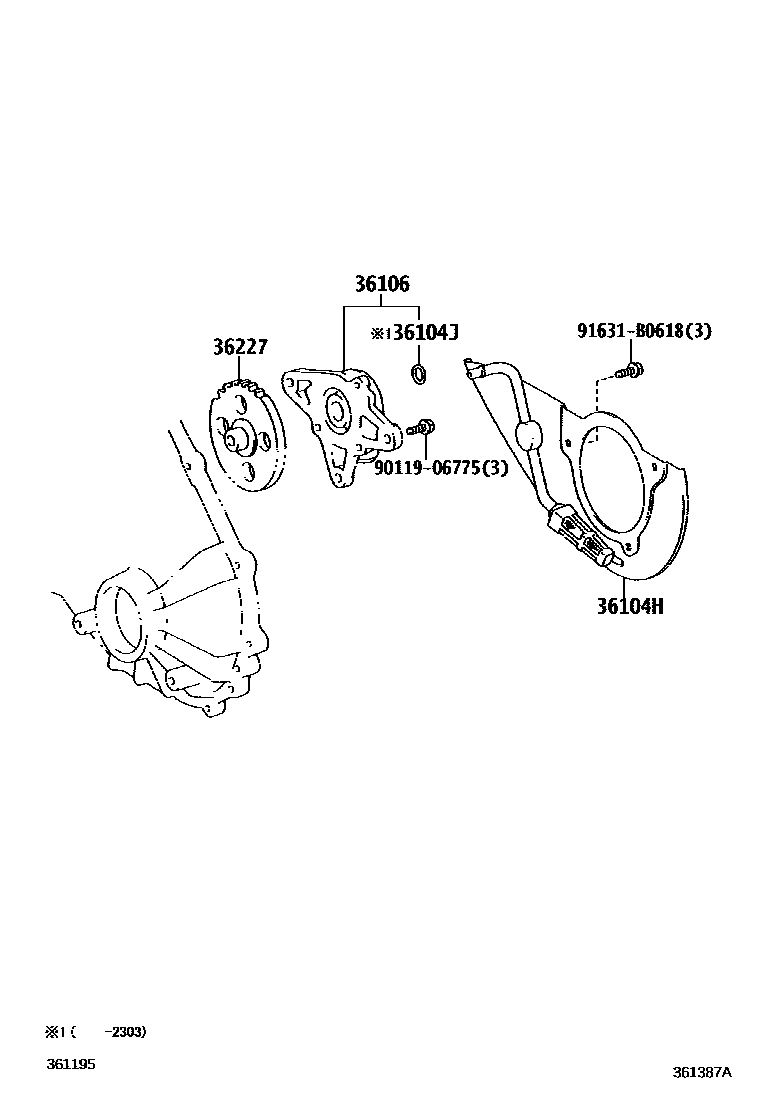

TRANSFER OIL PUMP

36104HSEPARATOR SUB-ASSY, TRANSFER OIL

main36104-35021iGSJ15..ATM200707-201011

main36104-35050iGSJ15..MTM200707-201011

36104JRING, O (FOR TRANSFER OIL PUMP BODY)

main96721-19009iGSJ15200707-201011

36106BODY SUB-ASSY, TRANSFER OIL PUMP

main36106-35031iGSJ15..ATM200707-201011

main36106-35050iGSJ15..MTM200707-201011

36227GEAR, TRANSFER OIL PUMP

main36227-35020iGSJ15..ATM200707-201011

main36227-35030iGSJ15..MTM200707-201011

9011906775

main90119-06775

91631B0618

main91631-B0618

6 parts on this diagram · 1 diagram in section
