3609TRANSFER CASE & EXTENSION HOUSING

→ Go to FIG 36-09

36264PIN OR ROLLER, SHIFT INTER-LOCK

main90250-10020i200707-201011

L=25.7,OD=9.53

36275PLUG, SHIFT DETENT BALL SPRING

main90341-12014×2i201011

36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main90501-16116×2i200707-201011

L=23

36275BBALL, SHIFT DETENT

main90360-10003×2i200707-201011

OD=9.52,STEEL

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-35210-B0supersedes 36303-35200-B0i201308

DK.GRAY,TRIM1#

main36303-60300-B0i201011-201712

DK.GRAY,TRIM1#

main36303-35200-B0supersedes 36303-35210-B0i200712-201011

DK.GRAY,TRIM1#

36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER

main36304-35061i200707-201011

main36304-60100i201011-201712

36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)

main90254-05001×2i200707-201011

L=22

36311CSPRING, COMPRESION (FOR SHIFT FORK)

main90501-20088i200707-201011

36311FFORK, TRANSFER GEAR SHIFT, NO.1

main36311-35030i200707-201011

36312FFORK, TRANSFER GEAR SHIFT, NO.2

main36302-60190i200707-201011

main36312-35040i200707-201011

36313SHAFT, TRANSFER FRONT DRIVE SHIFT

main36313-60140i200707-201011

36313FSHAFT, TRANSFER FRONT DRIVE SHIFT FORK

main36313-35070i200707-201011

36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK

main36314-35140i200707-201011

main36314-60120i201011-201712

36317DSTOPPER, NO.2, TRANSFER SHIFT SHAFT

main36317-35030i201011

main36317-60020i201011-201712

36318BOOT, TRANSFER FRONT DRIVE SHIFT

main33555-35190i200707-201011

36321BRING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER)

main90521-49003i200707-201011

36345GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER

main36345-35050i200707-201011

36349SPRING, TRANSFER SELECT RETURN

main36349-35010i201011

main36349-60010i200707-201011

36360GLEVER ASSY, TRANSFER HIGH & LOW SHIFT

main36360-35580i201011-201712

main36360-35590i200707-201011

main36360-35630i201011

9011908336

main90119-08336

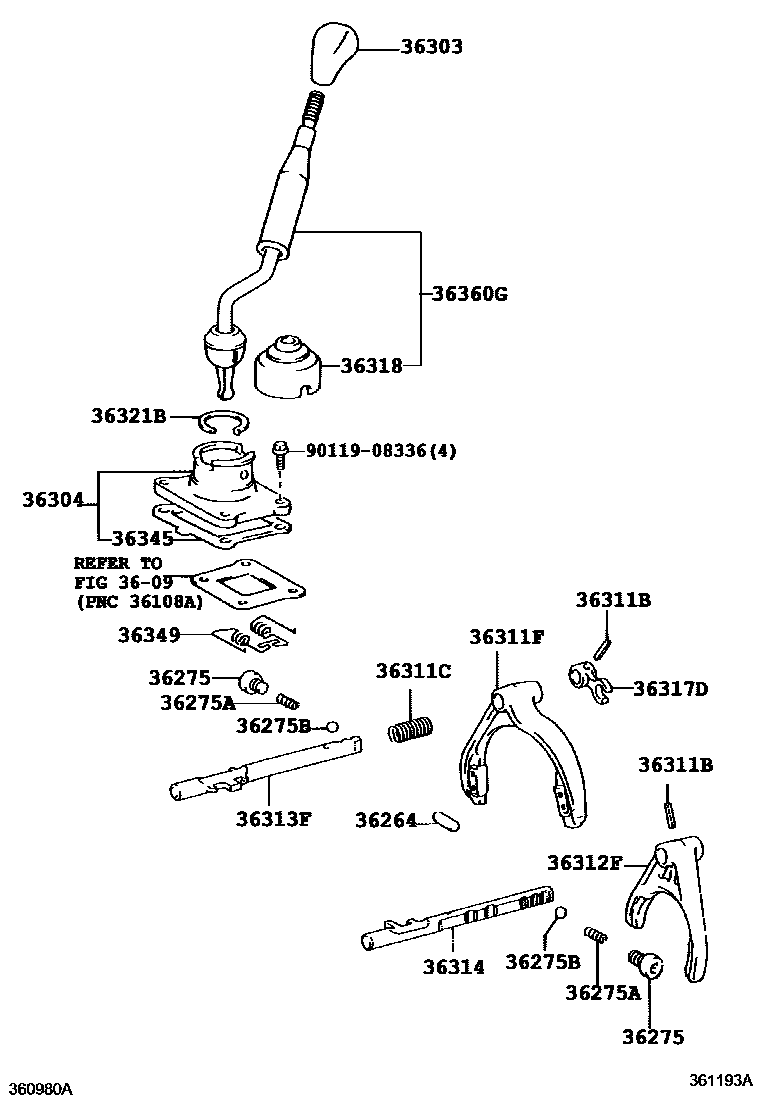

TRANSFER LEVER & SHIFT ROD
