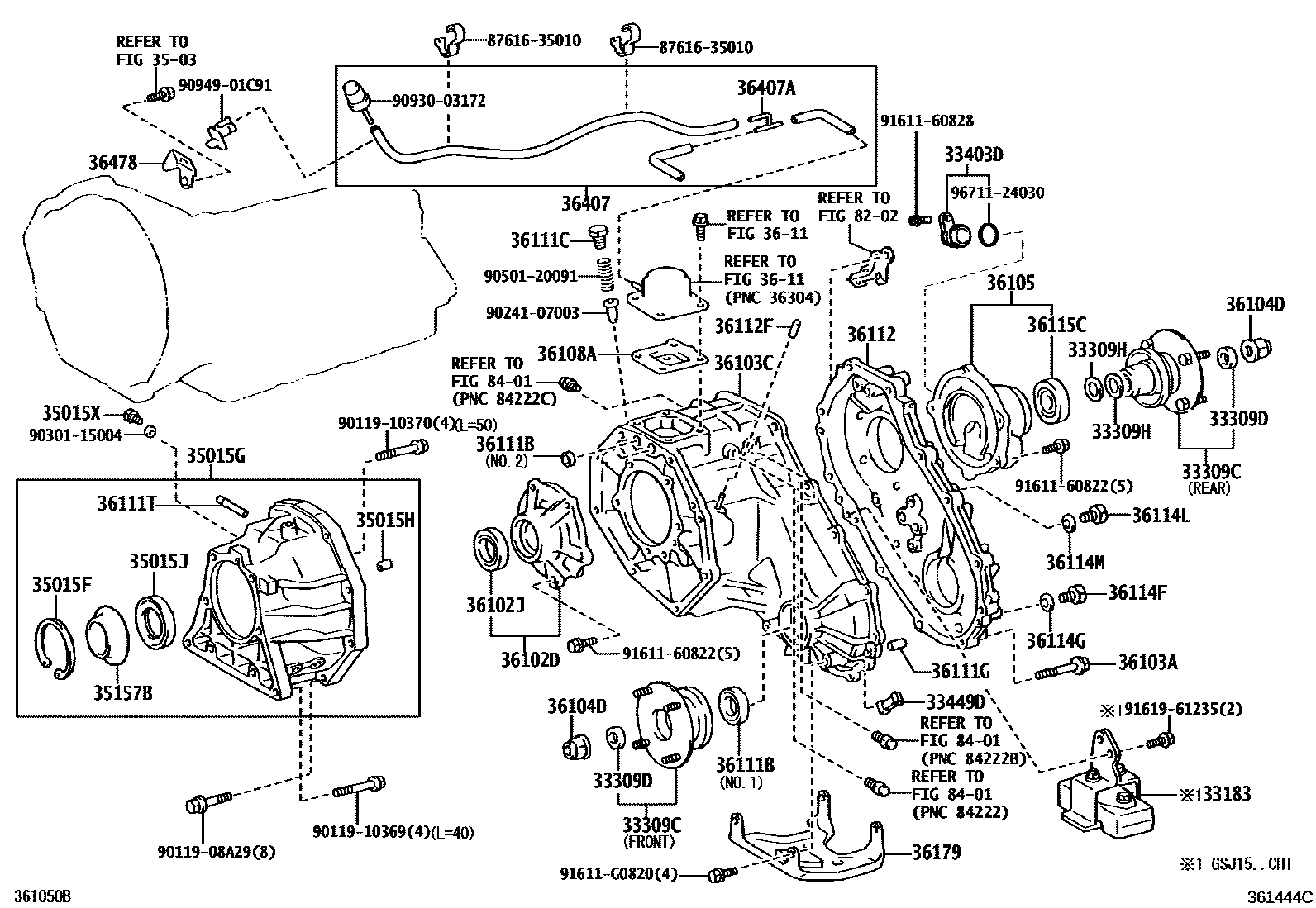

TRANSFER CASE & EXTENSION HOUSING
33183DAMPER, TRANSFER DYNAMIC
33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
FRONT
FRONT
FRONT,PNC36111B=T/PB
FRONT,PNC36111B=T/PB
REAR
33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
33309HWASHER, TRANSFER OUTPUT SHAFT
N=30,OD=38
N=31,OD=38
33403DCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33449DMAGNET (FOR TRANSFER CASE)
35015FRING, HOLE SNAP(FOR TRANSFER ADAPTER)
35015GADAPTER, TRANSFER, REAR
(L)
(J)
35015HPIN, RING(FOR TRANSFER CASE)
35015JSEAL, OIL(FOR TRANSFER CASE ADAPTER REAR)
35015XPLUG, REFILL(FOR TRANSMISSION CASE ADAPTER)
3503
35157BRECEIVER, TRANSFER CASE REAR ADAPTER OIL
36102DRETAINER SUB-ASSY, TRANSFER RH BEARING
36102JSEAL, TYPE T OIL (FOR TRANSFER COVER)
NO.1
NO.2
36103ABOLT (FOR TRANSFER CASE)
*8-1.25PX55-30
36103CCASE, TRANSFER, FRONT
36104DNUT (FOR TRANSFER OUTPUT SHAFT)
36105HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT
36108ADEFLECTOR SUB-ASSY, BREATHER OIL
3611
36111BSEAL, OIL (FOR TRANSFER CASE)
NO.2
NO.1
NO.1T/P A:REF.ILLUST
NO.1T/P B:REF.ILLUST
36111CPLUG (FOR TRANSFER CASE)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
L=14,OD=10
36111TTUBE (FOR TRANSFER CASE)
sub90406-T0007
36112CASE, TRANSFER, REAR
36112FCAP, TRANSFER, REAR CASE
36114FPLUG (FOR TRANSFER DRAIN)
36114GGASKET (FOR TRANSFER DRAIN PLUG)
36114LPLUG, FILLER(FOR TRANSFER)
36114MGASKET (FOR TRANSFER FILLER PLUG)
36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
36179PROTECTOR, TRANSFER CASE LOWER
36407HOSE SUB-ASSY, TRANSFER BREATHER
36407AWAY, 3(FOR TRANSFER BREATHER HOSE)
8202
8401
8761635010CLAMP, COOLING UNIT CASE
main87616-35010
9011908A29
main90119-08A29
9011910369
main90119-10369
9011910370
main90119-10370
9024107003
main90241-07003
9030115004
main90301-15004
9050120091
main90501-20091
9093003172
main90930-03172
9094901C91
main90949-01C91
9161160822
main91611-60822
9161160828
main91611-60828
91611G0820
main91611-G0820
9161961235
main91619-61235
9671124030
main96711-24030
52 parts on this diagram · 4 diagrams in section
