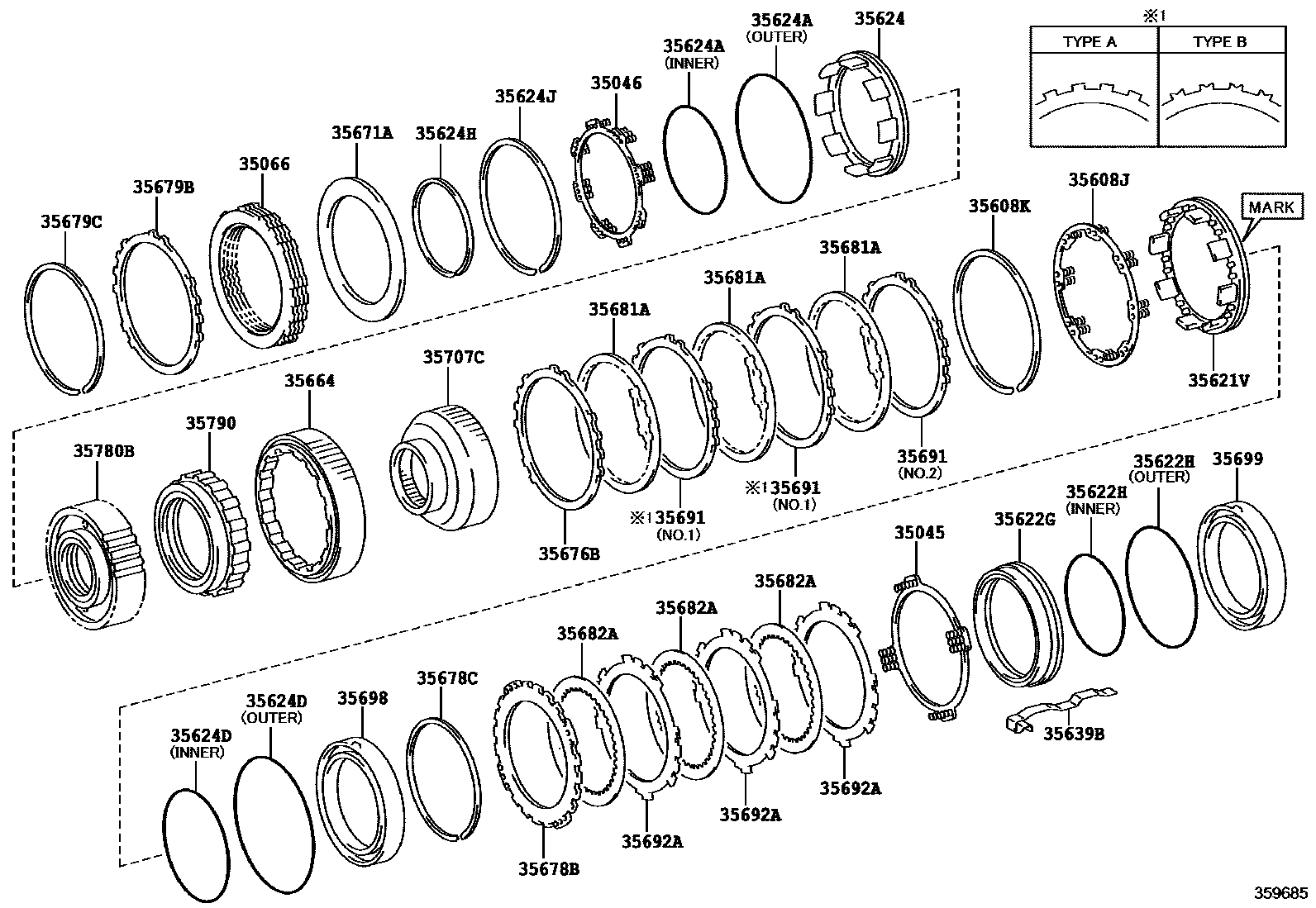

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35045SPRING SUB-ASSY, BRAKE PISTON RETURN,NO.2
(L)
35046SPRING SUB-ASSY, BRAKE PISTON RETURN, NO.3
(L)
(J)
35066DISC SET, 2ND BRAKE
(L)
(L)
(J)
35608JSPRING SUB-ASSY, BRAKE PISTON RETURN
(L)
35608KRING, SNAP (FOR BRAKE PISTON RETURN SPRING)
(L)
35621VPISTON, BRAKE, NO.1
MARK 060
MARK 070
35622GPISTON, BRAKE, NO.2
35622HRING, O (FOR BRAKE PISTON NO.2)
OUTER
INNER
35624PISTON, 2ND BRAKE
35624ARING, O (FOR 2ND BRAKE PISTON)
INNER
OUTER
35624DRING, O (FOR BRAKE PISTON NO.4)
OUTER
T/P B:SEE35-01,INNER
T/P A:SEE35-01,INNER
35624HRING, SNAP (FOR 2ND BRAKE PISTON)
(L)
35624JRING, HOLE SNAP (FOR 2ND BRAKE PISTON)
35639BSPRING, BRAKE PLATE STOPPER
35664CYLINDER, 2ND BRAKE
35671APLATE, BRAKE CUSHION
35676BFLANGE, BRAKE, NO.1
T=2.0,MARK 0,(L)
T=2.2,MARK 1,(L)
T=2.4,MARK 2,(L)
T=2.6,MARK 3,(L)
T=2.0,MARK 0,(J)
T=2.2,MARK 1,(J)
T=2.4,MARK 2
T=2.6,MARK 3,(J)
35678BFLANGE, BRAKE, NO.2
T=4.6,(L)
T=4.6
35678CRING, SNAP (FOR BRAKE NO.2)
(L)
35679BFLANGE, BRAKE, NO.3
(L)
35679CRING, SNAP (FOR BRAKE NO.3)
(L)
35681ADISC, BRAKE, NO.1
(L)
TYPE B:REFER 35-01
35682ADISC, BRAKE, NO.2
(L)
TYPE B:REFER 35-01
(J)
35691PLATE, BRAKE, NO.1
(L),NO.2
(L),NO.1
(J),NO.2
(J),NO.1
NO.1,TYPE B:REF ILL.
35692APLATE, BRAKE, NO.2
(L)
35698CYLINDER, BRAKE, NO.1
35699CYLINDER, BRAKE, NO.2
35707CRACE SUB-ASSY, 1 WAY CLUTCH, INNER
(L)
(J)
35780BCLUTCH ASSY, 1 WAY N0.2
(L)
(J)
35790CLUTCH ASSY, 1 WAY
(L)
(J)
30 parts on this diagram · 1 diagram in section
