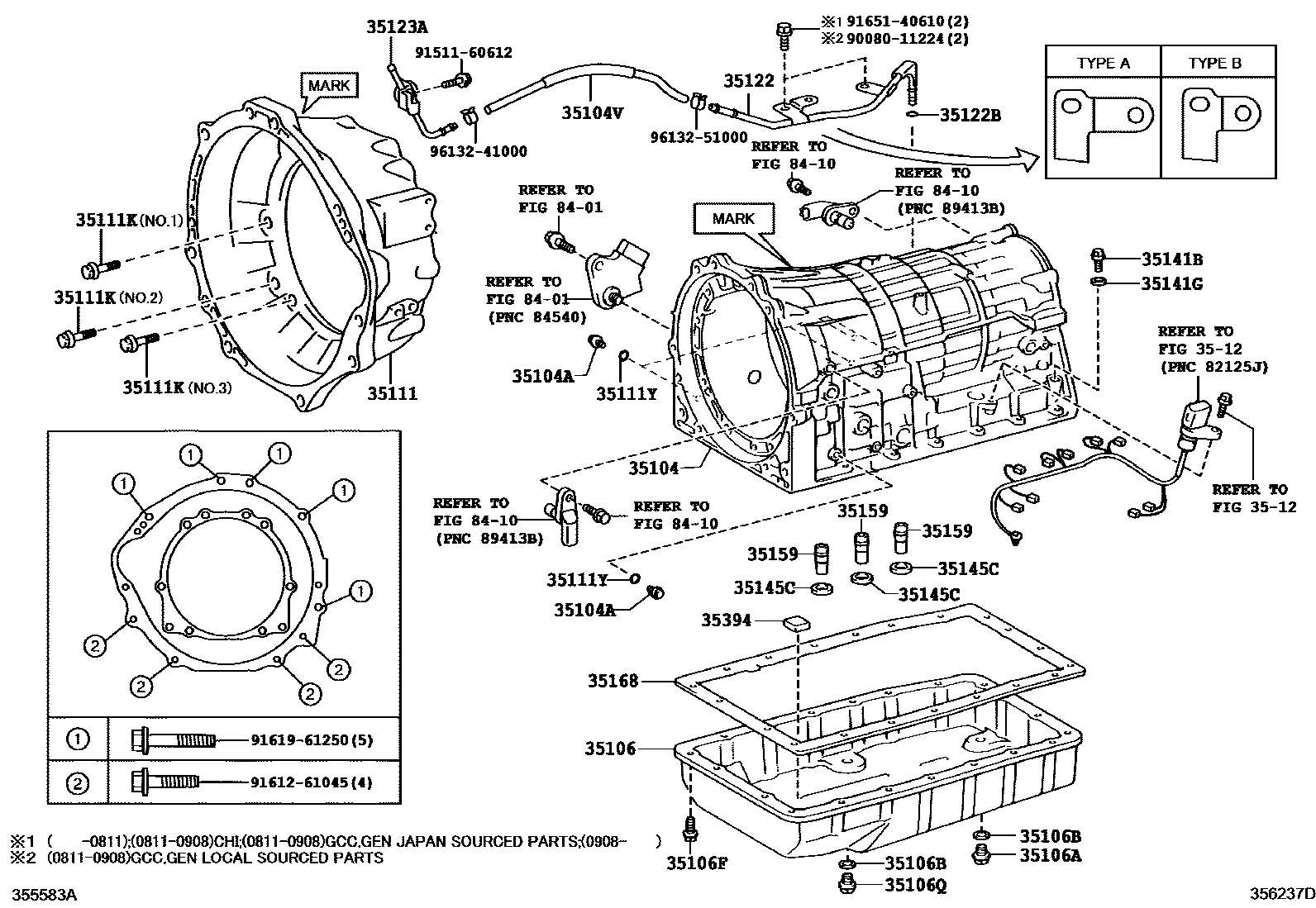

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A750F 0002 1A750F

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-0C010iGSJ15..ATM..(ARL,GCC,GEN,SA)201011-201511

NO MARK

main35104-35040iGSJ15..ATM201511-201604

TYPE B:REFER 35-01

main35104-60221iGSJ15..ATM..(ARL,GCC,GEN,SA)201011

MARK A

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×5iGSJ15..CHI200811-200908

main90341-A0001×5iGSJ15..CHI201403

(L)

35104VHOSE (FOR BREATHER PLUG)

main35121-35020iGSJ15..ATM201011

main90447-11039iGSJ15..ATM200707-200908

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-0C010iGSJ15..ATM..(GCC,GEN)200811-201011

(L)

main35106-60180iGSJ15..ATM..(ARL,GCC,GEN,SA)201011

(J)

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iGSJ15..ATM200707-201011

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010×2iGSJ15..CHI200707-200908

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06173×20iGSJ15..ATM..(ARL,GCC,GEN,SA)201307

(J)

main90119-A0298×20iGSJ15..ATM..(ARL,GCC,GEN,SA)201307-201511

(L)

35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90341-10021iGSJ15..ATM200707-201011

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-04010iGSJ15..CHI201403-201511

MARK UB

main35111-60150iGSJ15..CHI200811-200908

35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)

main90119-10232×6iGSJ15..ATM200707-200908

*10-1.5PX35-30,NO.1

main90119-10947×2iGSJ15..ATM201403-201511

*10-1.50PX35-29.3,(J),NO.3

main90119-12378×2iGSJ15..ATM201403-201511

*12-1.75PX38-30,(J),NO.2

main90119-A0272×6iGSJ15..ATM..(ARL,GCC,GEN,SA)201011-201511

*10-1.5PX35-29.3,NO.1

main90119-A0404×2iGSJ15..ATM201403-201511

*10-1.5PX35-29.3,(L),NO.3

main90119-A0405×2iGSJ15..ATM201403-201511

*12-1.75PX38-30,(L),NO.2

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×5iGSJ15..ATM200707-201011

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

35122TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE)

main35122-34010iGSJ15..ATM..(GCC,GEN)200811-201011

TYPE A:REFER ILLUST.

main35122-60020iGSJ15..CHI201307-201403

35122BRING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION)

main90301-04014iGSJ15..ATM200707-201011

35123ASKIRT, TRANSMISSION BREATHER

main35123-60090iGSJ15..ATM200707-200908

35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)

main90341-14011iGSJ15..ATM200707-201011

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-11030iGSJ15..ATM200707-201011

35145CGASKET, TRANSAXLE CASE

main35145-60020×3iGSJ15..ATM200707-201011

35159GASKET, BRAKE DRUM

main35159-0C010×3iGSJ15..CHI201403-201511

(L)

main35159-60010×3iGSJ15..CHI200707-200811

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-60010iGSJ15..ATM201011

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×4iGSJ15..ATM201011

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9008011224

main90080-11224

9151160612

main91511-60612

9161261045

main91612-61045

9161961250

main91619-61250

9165140610

main91651-40610

9613241000

main96132-41000

9613251000

main96132-51000

30 parts on this diagram · 2 diagrams in section
