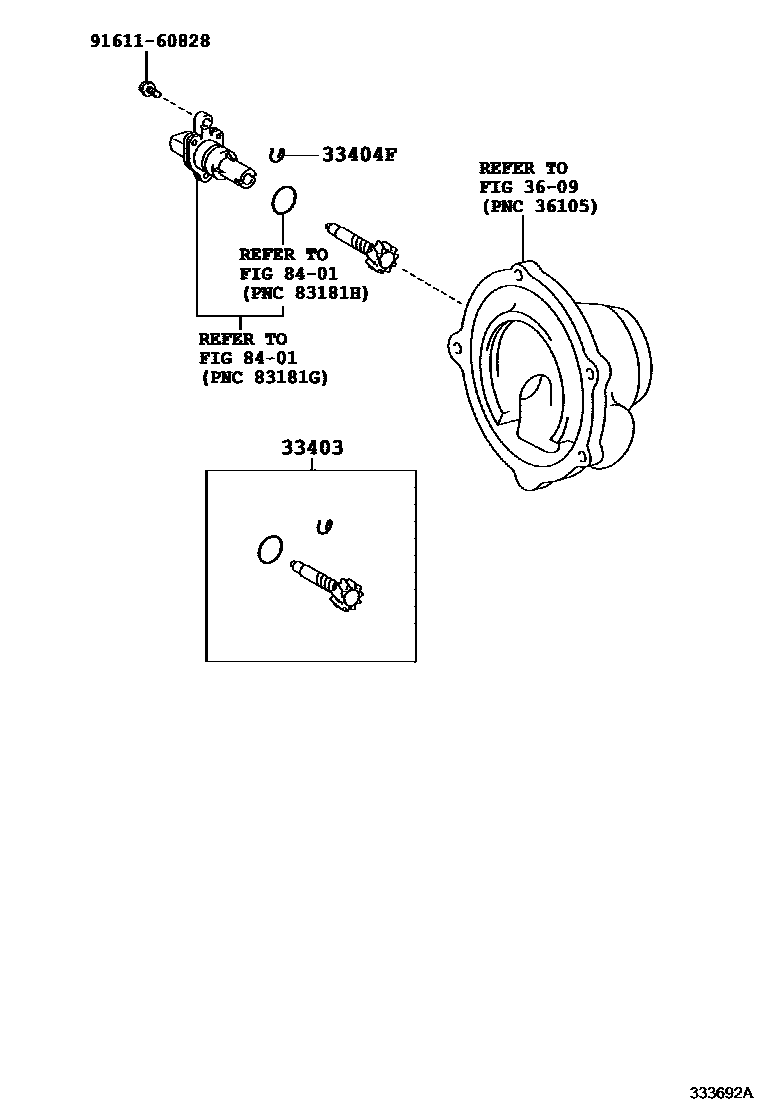

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-39585iGSJ15..MTM..GEN200707

N=28,MARK 28:11

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iGSJ15..MTM200707-201011

3609TRANSFER CASE & EXTENSION HOUSING

→ Go to FIG 36-09

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9161160828

main91611-60828

5 parts on this diagram · 1 diagram in section
