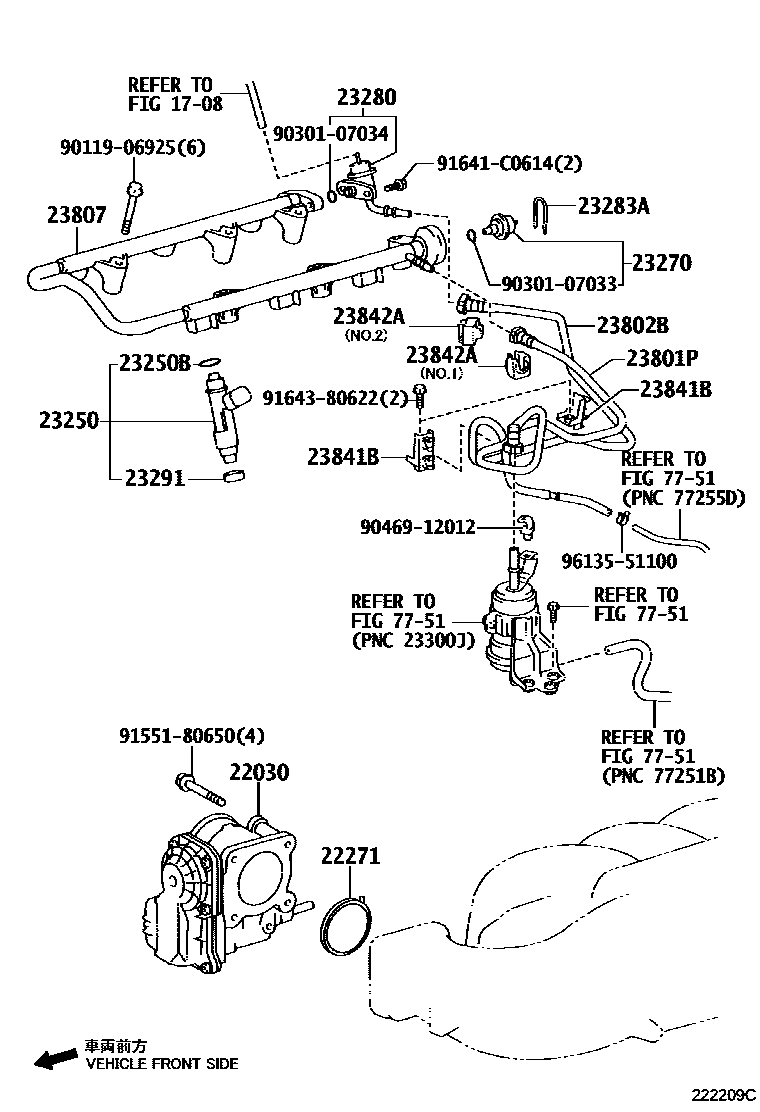

FUEL INJECTION SYSTEM
1708VACUUM PIPING
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
DENSO
AISIN
23250BRING, O(FOR FUEL INJECTOR)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23280REGULATOR ASSY, FUEL PRESSURE
23283AHOLDER, FUEL PRESSURE REGULATOR
23291INSULATOR, INJECTOR VIBRATION
23801PPIPE SUB-ASSY, FUEL, NO.1
CHILE SPEC
23802BPIPE SUB-ASSY, FUEL, NO.2
23807PIPE SUB-ASSY, FUEL DELIVERY
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
CHILE SPEC,NO.1
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
NO.1
NO.2
7751FUEL TANK & TUBE
9011906925
main90119-06925
9030107033
main90301-07033
9030107034
main90301-07034
9046912012
main90469-12012
9155180650
main91551-80650
91641C0614
main91641-C0614
9164380622
main91643-80622
9613551100
main96135-51100
23 parts on this diagram · 2 diagrams in section
