ALTERNATOR

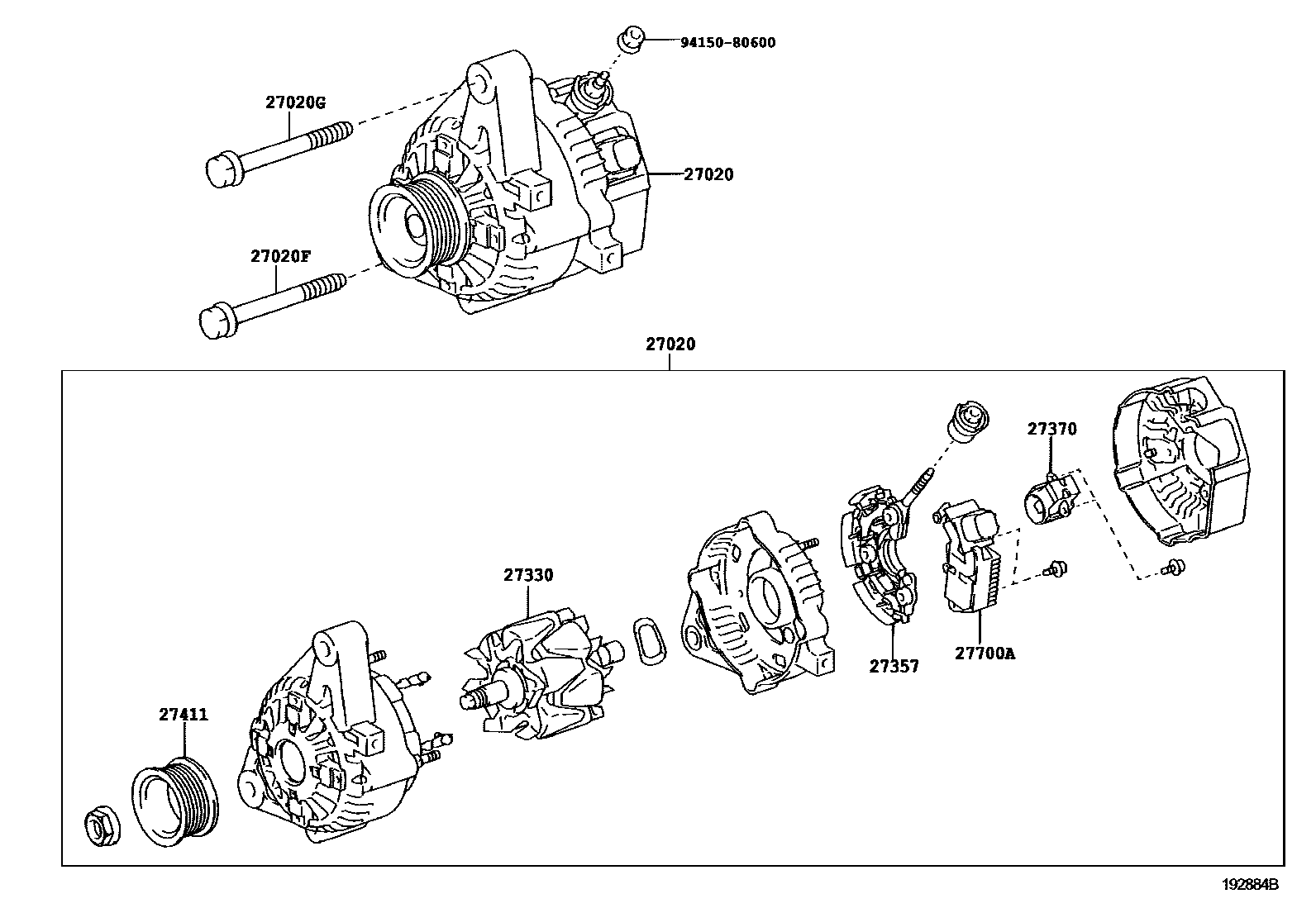

Parts diagram

27020ALTERNATOR ASSY

main27060-31010i200707-200908

12V 80A

main27060-31120i200707-200908

12V 100A

main27060-31180i201011-201407

12V 100A

main27060-31260i201408

12V 100A

27020FBOLT, NO.1(FOR ALTERNATOR)

main91552-81040i201011

main91642-81065i200707-200908

27020GBOLT, NO.2(FOR ALTERNATOR)

main91552-81070i200908-201011

main91642-81065i200707-200908

27330ROTOR ASSY, ALTERNATOR

main27330-30070i200908-201011

main27330-30130i200904-200908

main27330-62220i200707-200904

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-22200i200707-200908

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-31220i200707-201011

main27370-75060i200707-200908

27411PULLEY, ALTERNATOR

main27411-31200i200707-200908

main27411-31210i200707-200908

27700AREGULATOR ASSY, GENERATOR

main27700-31040i200707-200908

9415080600

main94150-80600

9 parts on this diagram · 3 diagrams in section
