V-BELT

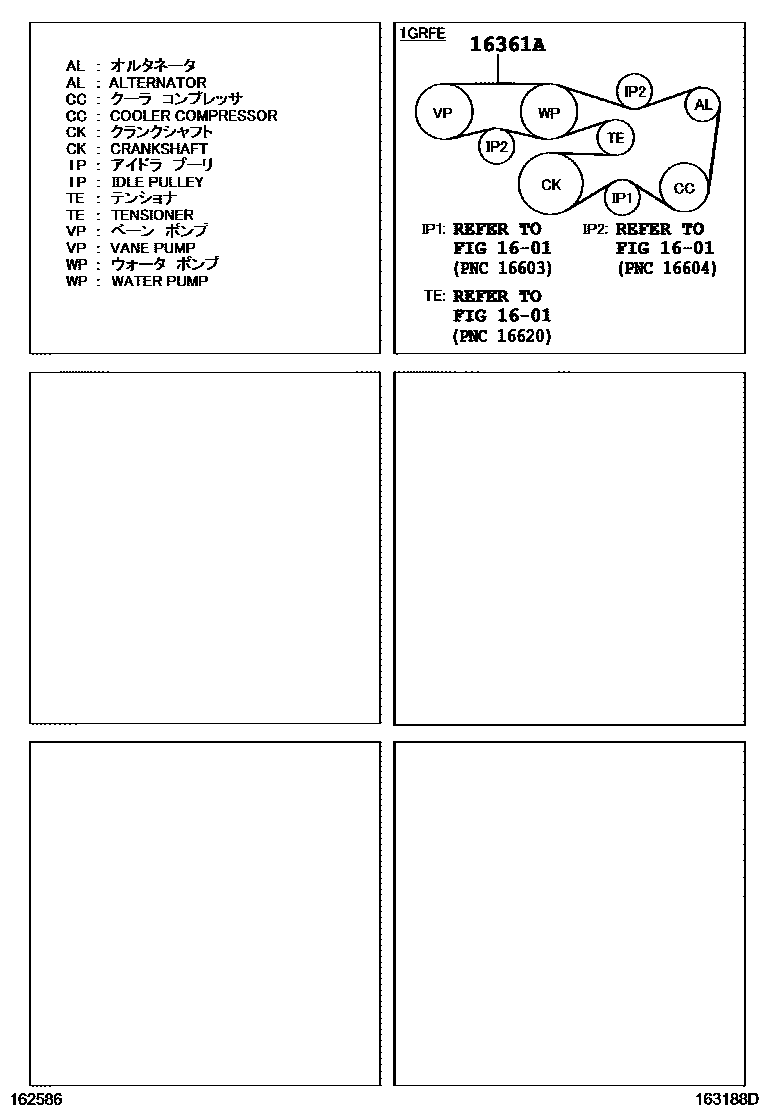

Parts diagram

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02571i200707-200908

main99367-H2150i200908-201011

2 parts on this diagram · 1 diagram in section
