RADIATOR & WATER OUTLET

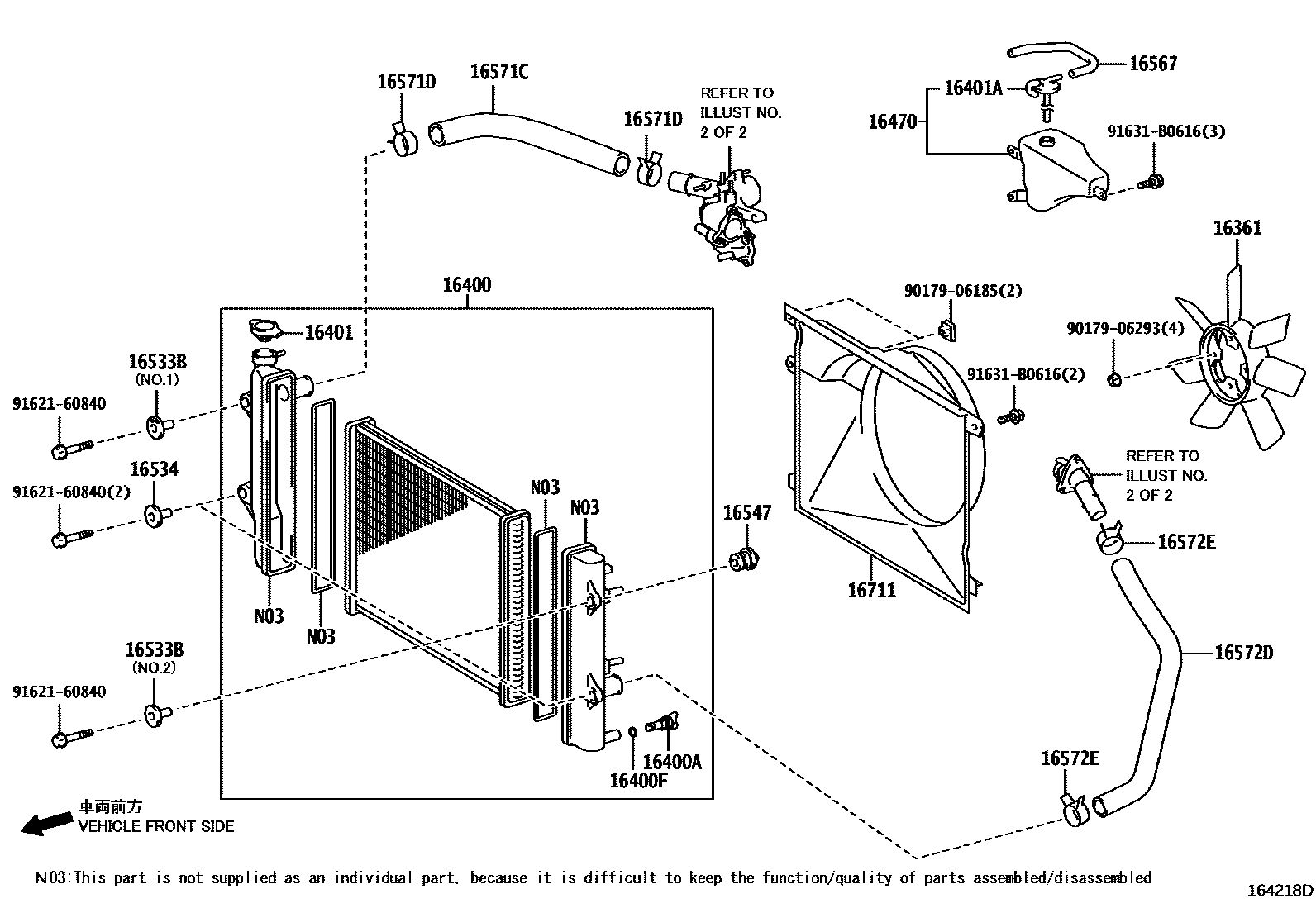

Parts diagram

16361FAN

main16361-31060i201011-201712

16400RADIATOR ASSY

main16400-31351i201011-201202

main16400-31352i201203-201409

main16400-31353i201410-201603

main16400-31354i201604

main16400-31461i201011-201202

main16400-31462i201203-201409

main16400-31463i201410-201512

main16400-31650i200712-201011

main16400-75451i201011-201202

main16400-75452i201203-201409

main16400-75453i201410-201603

main16400-75454i201604-201712

16400ACOCK SUB-ASSY, RADIATOR DRAIN

main23322-54010i200707-201011

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i201011

16401CAP SUB-ASSY, RADIATOR

main16401-31791i201408-201410

main16401-31792i201410-201603

main16401-31830i201604

main16401-46610i200902-201011

16401ACAP SUB-ASSY, RADIATOR RESERVE TANK

main16405-50051i201011-201712

16470TANK ASSY, RADIATOR RESERVE

main16470-31130i201011

main16470-50140i200707-200907

16533BSUPPORT, RADIATOR, NO.1

main16533-50090×2i200908-201011

main16534-50050i200707-200908

NO.2

16534SUPPORT, RADIATOR, NO.2

main16534-50050×2i200707-201011

16547BUSH, RADIATOR SUPPORT, NO.1

main16547-50010×4i200707-201011

16567HOSE(FOR RADIATOR RESERVE TANK)

main16567-31010i201011-201712

16571CHOSE, RADIATOR, NO.1

main16571-31130i200707-200908

main16571-31290i200908-201005

main16571-31291i201006-201011

main16571-31292i202004

16571DCLIP, RADIATOR HOSE, NO.1

main96136-44301×2i200707-201011

16572DHOSE, RADIATOR, NO.2

main16572-31170i200707-201011

16572ECLIP, RADIATOR HOSE, NO.2

main96136-44301×2i200707-201011

16711SHROUD, FAN

main16711-31200i200707-200908

main16711-31510i200908-201011

9017906185

main90179-06185

9017906293

main90179-06293

9162160840

main91621-60840

91631B0616

main91631-B0616

20 parts on this diagram · 6 diagrams in section
