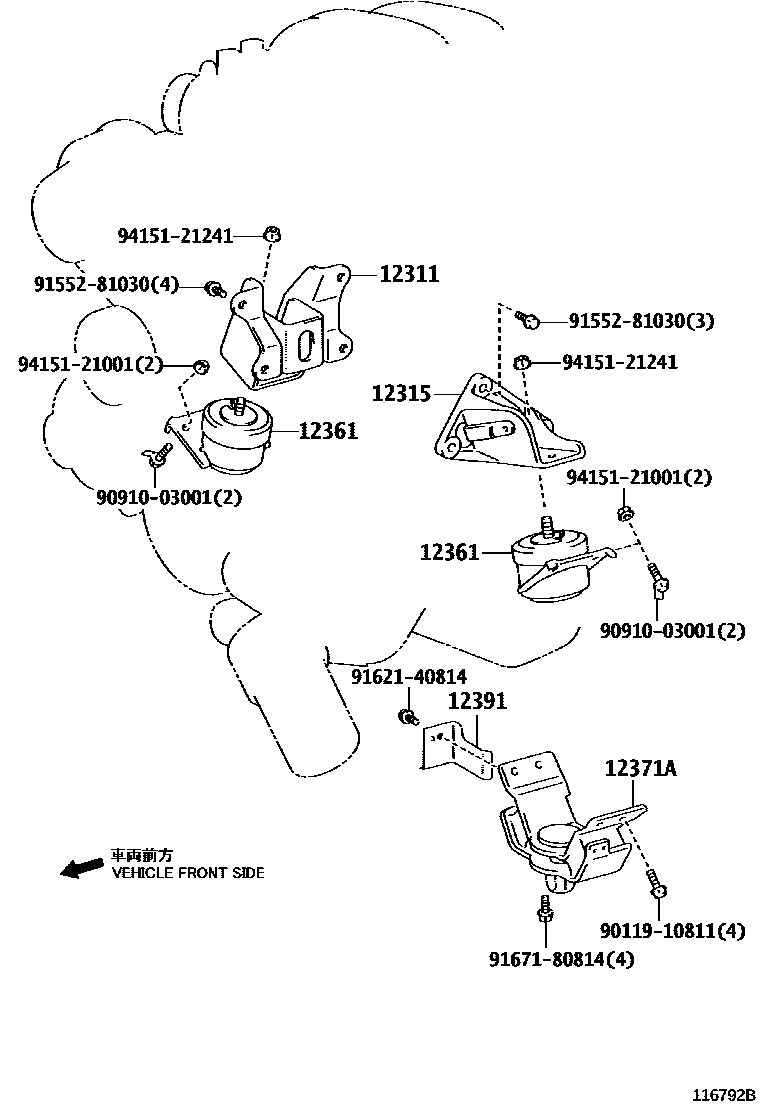

MOUNTING

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-31021i1GRFE..GSJ15..MTM201011-201712

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-31051i1GRFE..GSJ15200707-201011

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-31080×2i1GRFE..GSJ15200707-200812

main12361-31081×2i1GRFE..GSJ15200812-200908

main12361-31290×2i1GRFE..GSJ15..MTM201011-201712

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-31050i1GRFE..GSJ15200707-201011

main12371-31051i1GRFE..GSJ15..ATM201111

main12371-31310i1GRFE..GSJ15..MTM201111-201712

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-31020i1GRFE..GSJ15200707-201011

9011910811

main90119-10811

9091003001

main90910-03001

9155281030

main91552-81030

9162140814

main91621-40814

9167180814

main91671-80814

9415121001

main94151-21001

9415121241

main94151-21241

12 parts on this diagram · 1 diagram in section
