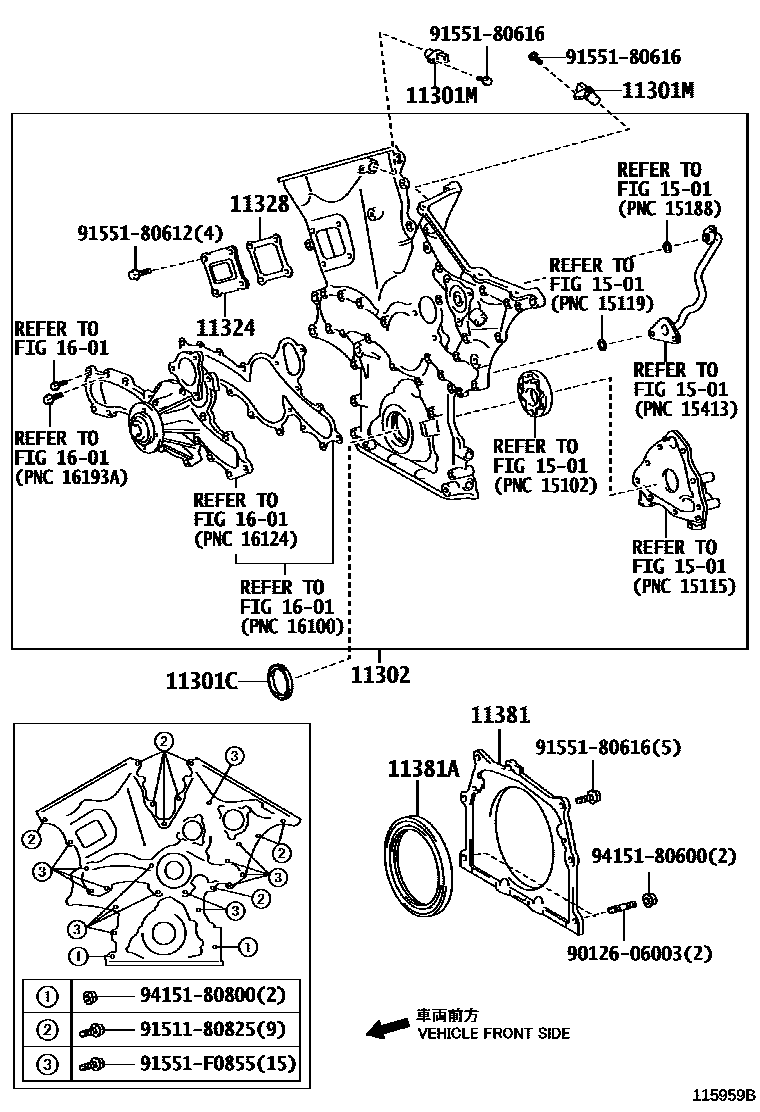

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42037i1GRFE..GSJ15200707-200908

main90311-42045i1GRFE..GSJ15200908-201011

main90311-42048i1GRFE..GSJ15..MTM201012-201712

11301MSENSOR, CAM POSITION

main90919-05060×2i1GRFE..GSJ15200707-200908

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-31013i1GRFE..GSJ15200707-200908

main11310-31030i1GRFE..GSJ15200908-201011

11324PLATE, TIMING CHAIN COVER

main11324-31020i1GRFE..GSJ15200707-201011

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-31030i1GRFE..GSJ15200707-201011

11381RETAINER, ENGINE REAR OIL SEAL

main11381-31010i1GRFE..GSJ15200707-201011

11381ASEAL, ENGINE REAR OIL

main90311-99010i1GRFE..GSJ15200707-201011

1501ENGINE OIL PUMP

→ Go to FIG 15-01

1601WATER PUMP

→ Go to FIG 16-01

9012606003

main90126-06003

9151180825

main91511-80825

9155180612

main91551-80612

9155180616

main91551-80616

91551F0855

main91551-F0855

9415180600

main94151-80600

9415180800

main94151-80800

16 parts on this diagram · 2 diagrams in section
