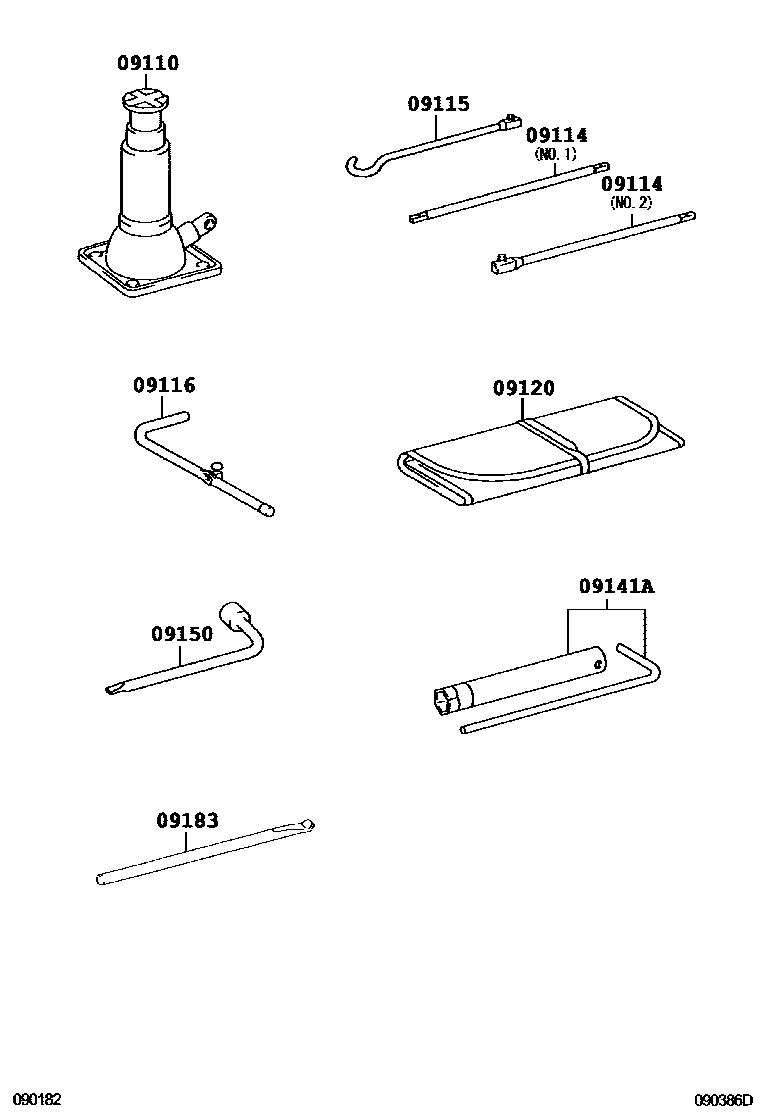

STANDARD TOOL

09110JACK ASSY

main09111-35182iGSJ15200707-201011

sub09111-60140

main09111-60130iGSJ15201109-201603

sub09111-60131

main09111-60131iGSJ15201604-202108

sub09111-60132

main09111-60132iGSJ15202109

main09111-60140iGSJ15201011-201108

sub09111-60130

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-35040iGSJ15..ATM200707-201712

NO.1

main09114-35050iGSJ15..MTM200707-201712

NO.2

09115ROD SUB-ASSY, JACK HANDLE

main09115-35110iGSJ15200707-201712

09116LEVER, JACK HANDLE

main09116-35080iGSJ15200707-202009

sub09116-60020

main09116-60020iGSJ15202010

09120BAG, TOOL

main09120-35160iGSJ15200707-200910

sub09120-35170

main09120-35170iGSJ15200911-201712

09141AWRENCH, HEXAGON

main09156-00041iGSJ15..SA201011

BACK MONITOR-WITH

main09156-00041iGSJ15..ARL201308

09150WRENCH, HUB NUT BOX

main09150-26010iGSJ15..ARL201011-201712

main09150-35070iGSJ15200707-201011

main09150-60020iGSJ15..SA201011

BACK MONITOR-WITH

main09150-60020iGSJ15..ARL201308

09183WRENCH, WHEEL CAP

main09183-00030iGSJ15..ATM201011-201712

8 parts on this diagram · 1 diagram in section
