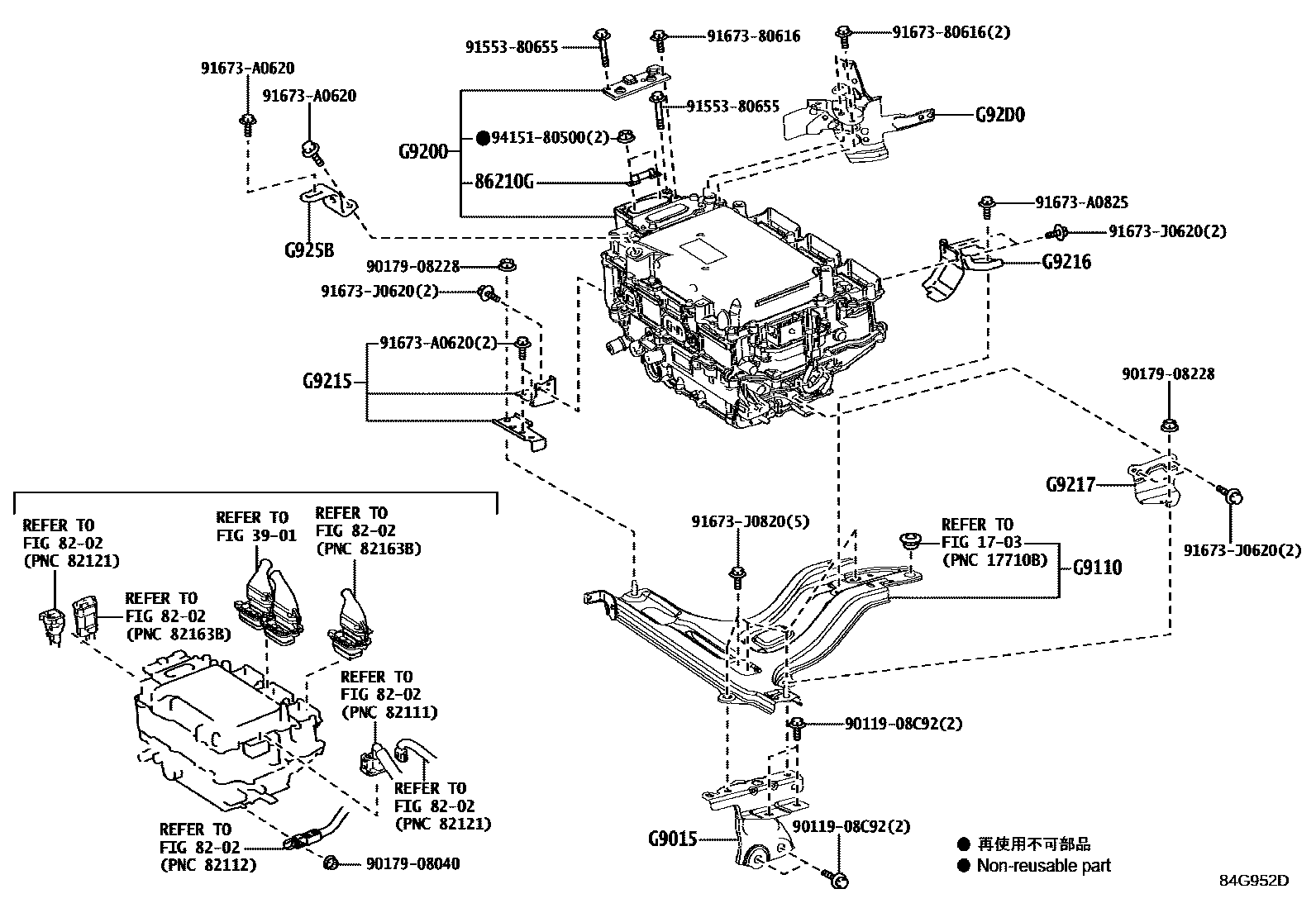

HEV INVERTER

1703AIR CLEANER

→ Go to FIG 17-03

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8202WIRING & CLAMP

→ Go to FIG 82-02

86210GFUSE, HIGH VOLTAGE

main90982-11050iAVA4#201510-201810

G9015BRACKET SUB-ASSY, INVERTER, NO.2

mainG901578010iAVA4#201510-201810

G9110BRACKET ASSY, INVERTER

mainG911048020iAVA4#201510-201810

G9200INVERTER ASSY, W/CONVERTER

mainG92A042040iAVA42201510-201810

mainG92A042050iAVA44201510-201810

G9215BRACKET, INVERTER, NO.2

mainG921548060iAVA4#201510-201810

G9216BRACKET, INVERTER, NO.3

mainG921678010iAVA4#201510-201810

G9217BRACKET, INVERTER, NO.4

mainG921748150iAVA4#201510-201810

G925BBRACKET, INVERTER, NO.6

mainG925B48040iAVA42201510-201810

mainG925B78010iAVA44201510-201810

G92D0PROTECTOR ASSY, HYBRID INVERTER

mainG92D048010iAVA44201510-201810

9011908C92

main90119-08C92

9017908040

main90179-08040

9017908228

main90179-08228

9155380655

main91553-80655

9167380616

main91673-80616

91673A0620

main91673-A0620

91673A0825

main91673-A0825

91673J0620

main91673-J0620

91673J0820

main91673-J0820

9415180500

main94151-80500

22 parts on this diagram · 1 diagram in section
