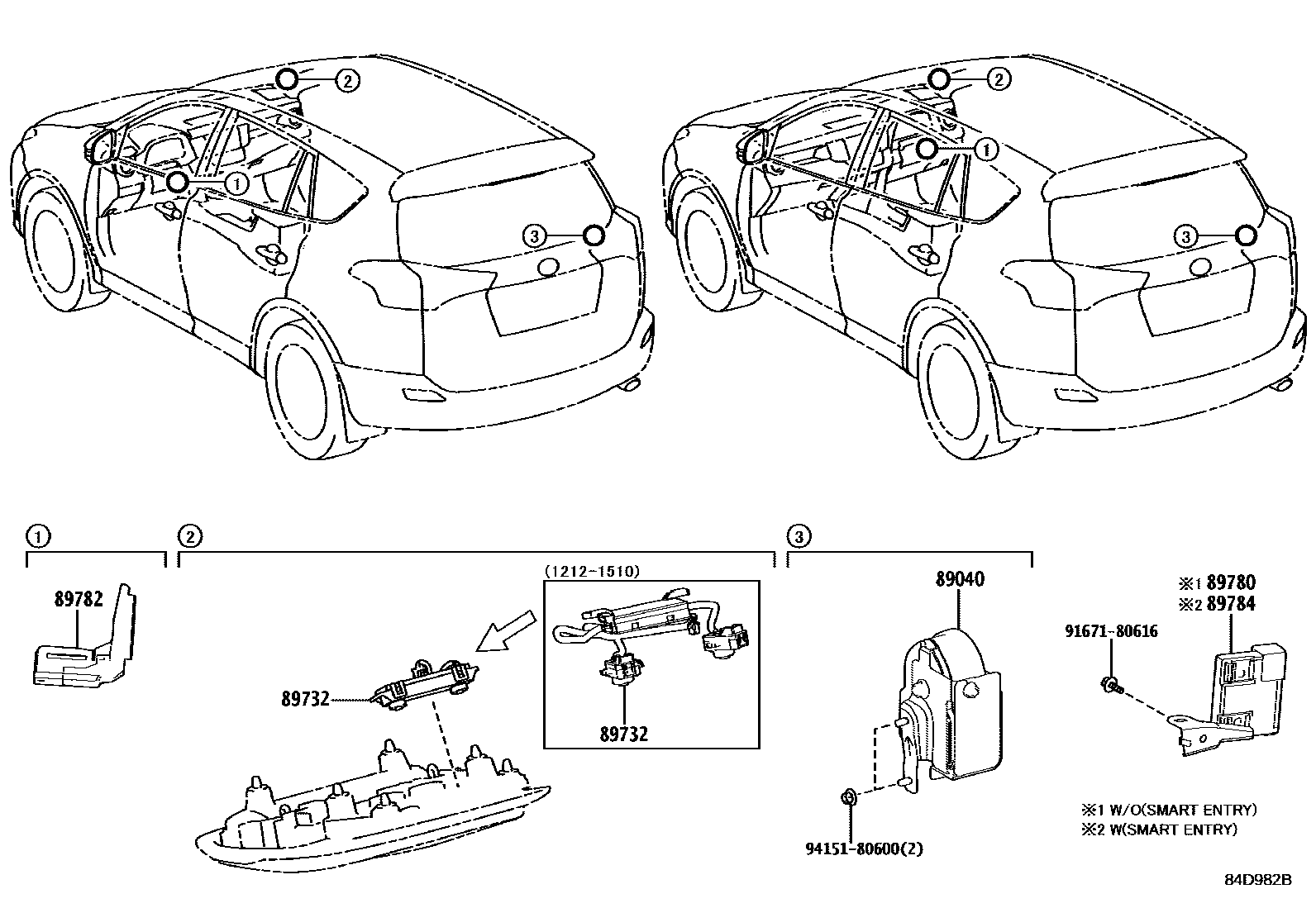

ANTI-THEFT DEVICE
89040SIREN ASSY, THEFT WARNING
89732SENSOR, THEFT WARNING RADAR
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & DOUBLE-LOCK & ALARM)
89780COMPUTER ASSY, TRANSPONDER KEY
KEY PLATE-MASTER KEY(2) + SUB KEY(1),WIRELESS; WIRELESS DOOR LOCK-WITH(2 BUTTON)
main89780-42191iZSA42..LHD..B..M;ASA42,ZSA44..(M,X)..GEN;ALA49,ASA44,ZSA42..X..(ARL,GEN,SA);ALA49,ASA44,ZSA42..(6F,6FC,A)..M..(GEN,SA); ZSA42..LHD..B..M;ZSA42..(6F,A)..M..GEN;ALA49,ASA4#,ZSA44..M..(GEN,SA); ZSA44..LHD..(6F,B)..M201609-201812
KEY PLATE-MASTER 2 FOR SMART; SUDAN,S.SUDAN SPEC&KEY PLATE-MASTER 2 FOR SMART
SUDAN,S.SUDAN SPEC
SUDAN SPEC; SUDAN SPEC&KEY PLATE-MASTER KEY(2) + SUB KEY(1),WIRELESS; SUDAN SPEC&WIRELESS DOOR LOCK-WITH(2 BUTTON)
SUDAN,S.SUDAN SPEC
89782COIL, TRANSPONDER KEY
WIRELESS DOOR LOCK-WITH(2 BUTTON)
89784COMPUTER, IMMOBILIZER CODE
main89784-42051iALA49..RHD..6F..G;ZSA42..(G,M)..ARL;ASA44..G..(ARL,SA);ALA49,ASA44..M..(DCRE,EFI)..ARL201510-201812
9167180616
main91671-80616
9415180600
main94151-80600
7 parts on this diagram · 1 diagram in section
